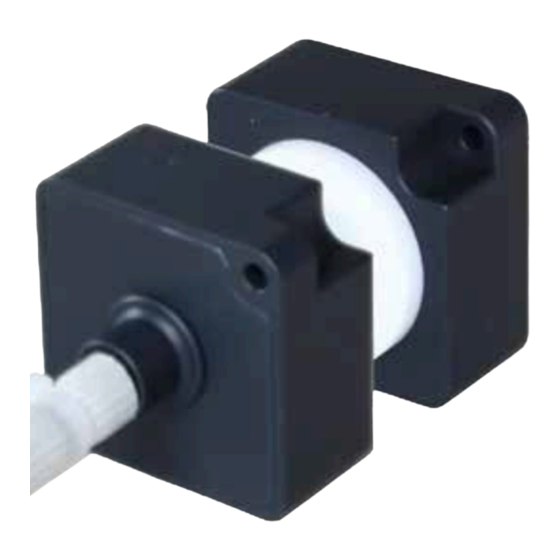

B&PLUS RS12T-TF423A-TP01 Instructions

WeldingSuitable for robot！ WeldingSuitable for robot！
Sputtering specifications-resistant Sputtering specifications-resistant
RS12E-TF423AN-TP02
RS12E-TF423AP-TP02
Introduction advantages of remote system
The remote system enables to send power and transmit
the signals without a contact.
It can provide many advantages when a conventional con-
nector, which connects to a moving unit and a fixed unit.
And these can be done wirelessly.
■ Compare with a connector
○ No need to detach a connector.
It can save the labor work.
○ Untroubled conditions such as
a pin breaking.
○ Reducing of maintenance costs.
■ Compare with a cable
○ A curl cord isn't necessary because
of no extension parts.
○ No cable disconnection troubles with
a cable deterioration.
Product news
Compact shape / 12 signals
RS12T-TF423A-TP01

Construction of the system

Max12
signals
Connecting to a power supply and the outside control equipment
(PLC) in the output part of the fixation side and connect a sensor for
detection to the transmission part of the movable side.When facing a
remote system, the sensor detects wirelessly and ables to transmit
the ON/OFF sensor to the fixed park which controls the equipment.
Combination can be vary according to the
RS12T-TF423A-__
RS12T-TF423B-__
Remote sensor system
RS12T-TF423B-TP01
Moving unit
Power Power
Transmitter
Power
・
・
・ Signals
Signals
DC-3 Wire sensors / Photoelectric sensors
Transmitter
RS12E-TF423BN-TP02
RS12E-TF423BP-TP02
Fixed unit
P.S
Output sensor
V A
Power
Signals
Host device
placement.
Output sensor
RS12E-TF423AN-__
RS12E-TF423AP-__
RS12E-TF423BN-__
RS12E-TF423BP-__
