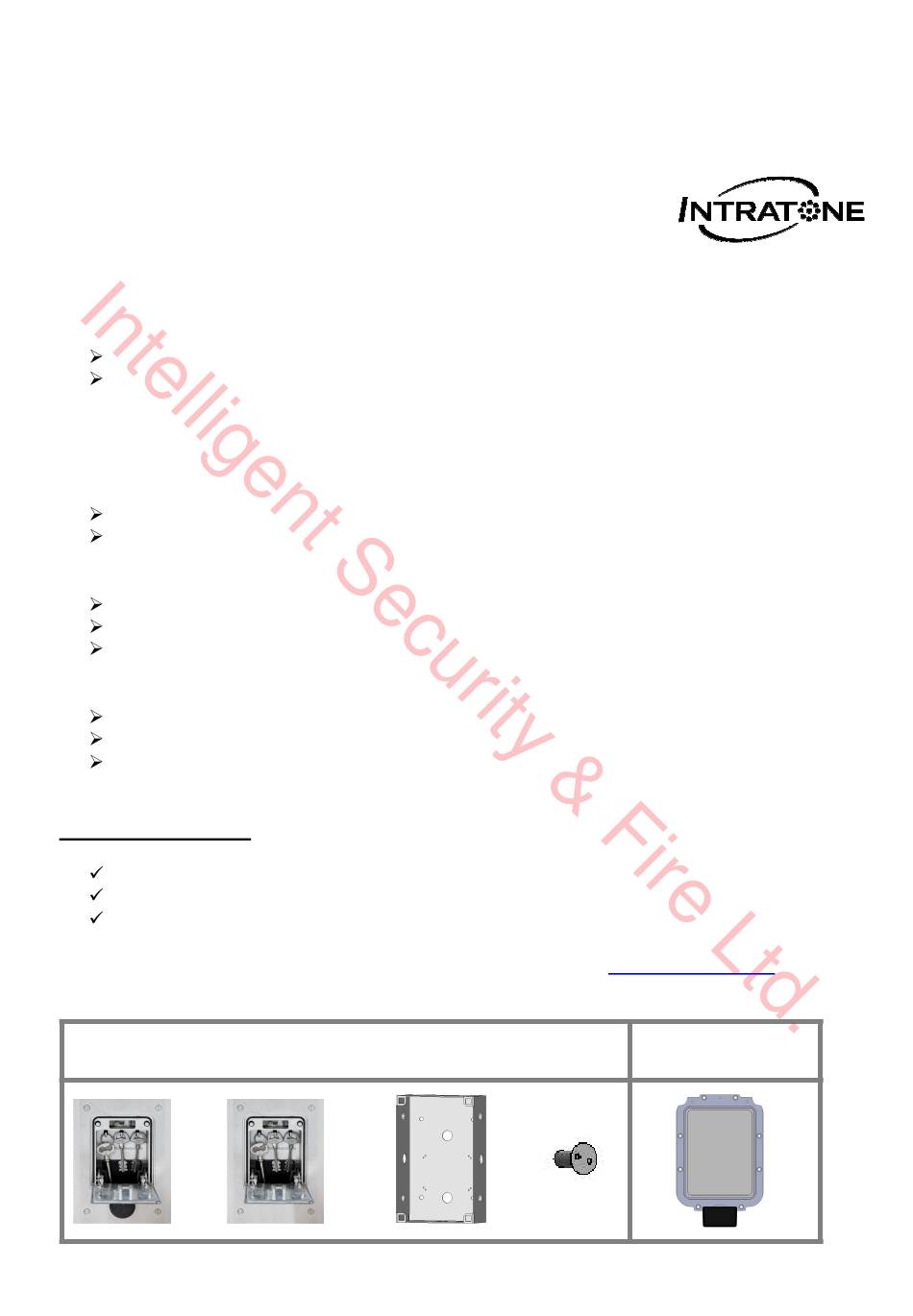

INSTALLATION AND CONNECTION OF
The smart key safe makes managing your keys and premises easy.
The key safe is available with and without a proximity reader:
With proximity reader included in IntraBox key safe.
Without proximity reader to add to existing installation.
You can choose a model to be fitted flush or projecting from the wall, or one that can be
fitted to another installation (a post, pre-hung door, etc.)
The product is available in two versions:
A "Basic" version with a "mechanical" hook.
An "Exclusive" version with an electronic key holder and key monitoring system.
The key safe must be connected in "Real Time" to the following equipment:
2-4 door units (ref: 03-0101-EN).
1 door unit
GPRS Unit
There are three ways to open the key safe to access the stored keys:
With an authorised masterkey fob.
By entering a special code
By calling the manager from an intercom, who then opens the key safe using their
mobile.
Product description:
Key safe:
Three hooks for storing keys up to 12cm long.
A confirmation tone when the key safe is opened by its motor.
Manage key monitoring alerts.
Manage the key safe remotely and in real time via our website:
"management website" tab"
Or
EN-V233 - 5008 - AA - Fitting and user guide for the INTRATONE Key safe
THE KEY SAFE

GENERAL POINTS

(ref: 03-0102-EN).
(ref: 17-0102-EN).
Flush fitted or box
+
www.intratone.com
Integrated unit
+
X 4
in the
Page 1 / 12
