Parweld TR003 Assembly Instructions

TR003 Trolley Assembly Instructions
Sheet 1 of 5
7

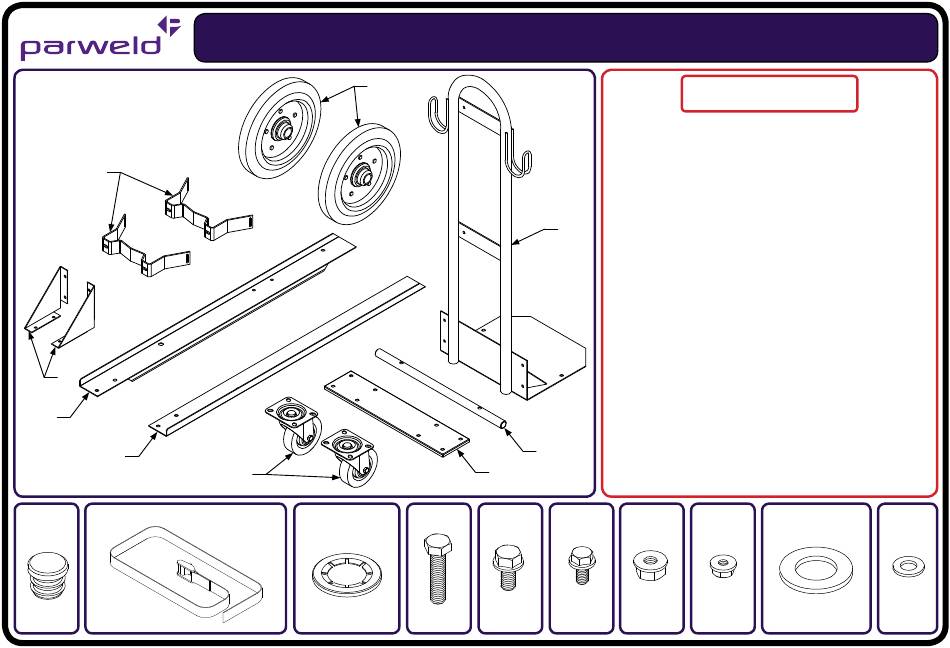

Trolley Parts List
1) Tubular Mounting Frame (Gas Bottle) x 1
2) Angle Runner (RH) x 1
6
3) Angle Runner (LH) x 1
4) Mounting Frame Gusset Plate x 2
5) Front Mounting Plate (Castors) x1
1 6) Support Bracket (Gas Bottle) x 2
7) Wheel (Ø250) x 2
8) Wheel Axle x 2
9) Swivel Castor (Ø100) x 2
10) Plastic End Cap (Ø20) x 2
11) 25mm x 1560mm Fabric Strap With Buckle x 1
12) 25mm x 1130mm Fabric Strap With Buckle x 1
13) Retaining Washer (Ø20) x 2
14) M8 x 35 Hex Set Screw x 2
15) M8 x 16 Hex Set Washer Head Screw x 8
4
16) M6 x 12 Hex Set Washer Head Screw x 12
17) M8 Hex Washer Head Nut x 10
3
18) M6 Hex Washer Head Nut x 12
19) M20 Flat Washer x 2
8
20) M8 Flat Washer x 2
2
5
9
10 11 & 12 13 14 15 16 17 18 19 20
