Projoy Electric PEBS-S Instructions For Installation And Operation

DOC: PZ-DT-05-01

Thank you for choosing PROJOY products.

Please read carefully before installation.

PEBS-S INSTRUCTIONS FOR

INSTALLATION AND OPERATION

INSTALLATION

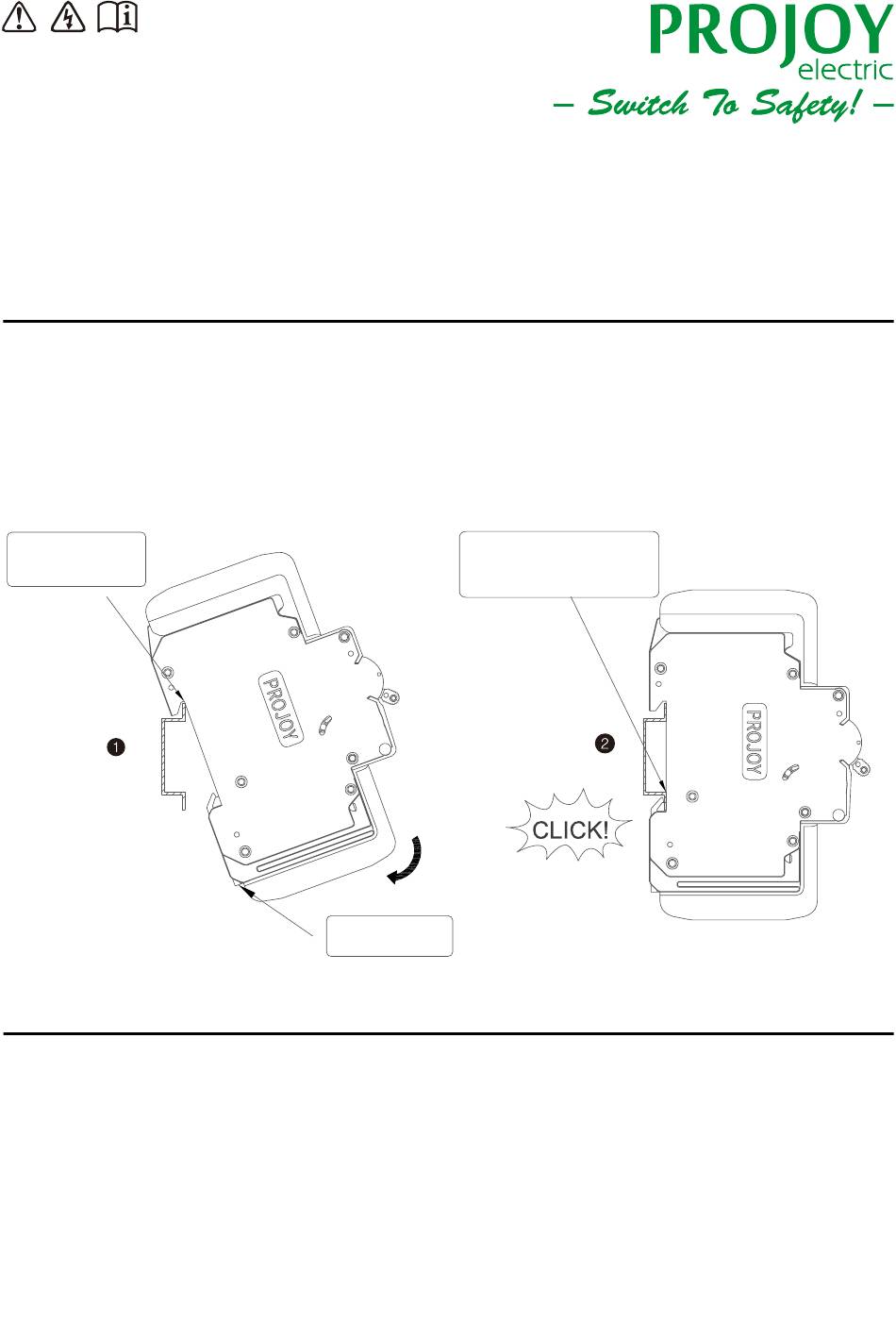

PROJOY PEBS-S products are mounted on standard din-rails and are suitable for 35mm standard din-

rail installation. No additional tools are required for installation. Simply push the product into the guide

rail. For operation, please hang the hook at the top of the bottom into the guide rail to make the product

30°. Then, press the product diagonally downwards to snap the product into the guide rail, and the final

product will be vertical as shown in the right figure.

Priority snapping

into the din-rail

PROJOY PEBS-S products are quick-release design and can be easily disassembled with a single

screwdriver. The details are as follows:

First insert the screwdriver into the opening at the bottom of the product buckle, use the product as a

fulcrum, and then withdraw the buckle downward. When you hear a click, the buckle will automatically

stop at the fixed position, and the product is separated from the guide rail. The bottom of the product is

first separated from the guide rail to form an angle of about 30°, and then slightly raised, and the upper

hook is separated from the guide rail to take out the product.

Press the product diagonally

downwards to snap the

buckle into the guide rail

Bottom buckle

Table of Contents

Do you have a question about the PEBS-S and is the answer not in the manual?

Page 1 INSTALLATION AND OPERATION INSTALLATION PROJOY PEBS-S products are mounted on standard din-rails and are suitable for 35mm standard din- rail installation. No additional tools are required for installation. Simply push the product into the guide rail. For operation, please hang the hook at the top of the bottom into the guide rail to make the product 30°.
Page 2 Insert the screwdriver Slightly lifted up so that into the opening at the upper hook leaves the bottom and pull it down the rail WIRING ABILITY Connection tool 2# screw driver Wiring capability(mm 1-35mm Tightening torque(Nm) 2-3.5Nm WIRING CIRCUIT DIAGRAM Load Load ＋/ －...
