DCB PTT-24 Quick Start Manual

Push-to-talk lockout device
Hide thumbs Also See for PTT-24:

Advertisement

FEATURES

 Use to de-key radios on Busy/Idle T1 trunks
 Industrial temperature rated -40 to +70 C
 50 Telco amphenol in and out connectors
 Push button switches to select control port
 Toggle switch to select 12 or 24 E leads
 Switch to test lockout function
 The selected control port, when asserted, de-
asserts the other 11 or 23 E leads
 Audible alarm with audio shutoff button
 Alarm input to force lockout function
 Supports Tie Line Types I, II IV and V
 1U high, 19" rackmount
 -48 VDC dual power inputs, diode protected from
each other

DESCRIPTION

The PTT-24 is a Push-to-Talk lockout device. It is
used with multiple E&M circuits linked to radios. The PTT-24
solves the problem of radio transmitters being locked into a
Transmit ON state when a T1 circuit fails. Many T1 trunk
lines will go into a busy condition when the T1 trunk fails.
This causes the E&M leads to lock in an ON state, which
causes radio transmitters to lock in the ON state.
12 or 24 E&M ports are wired through the PTT
Lockout unit. A front panel toggle switch is used to select 12
or 24 port operation. A 2 position push button switch is used

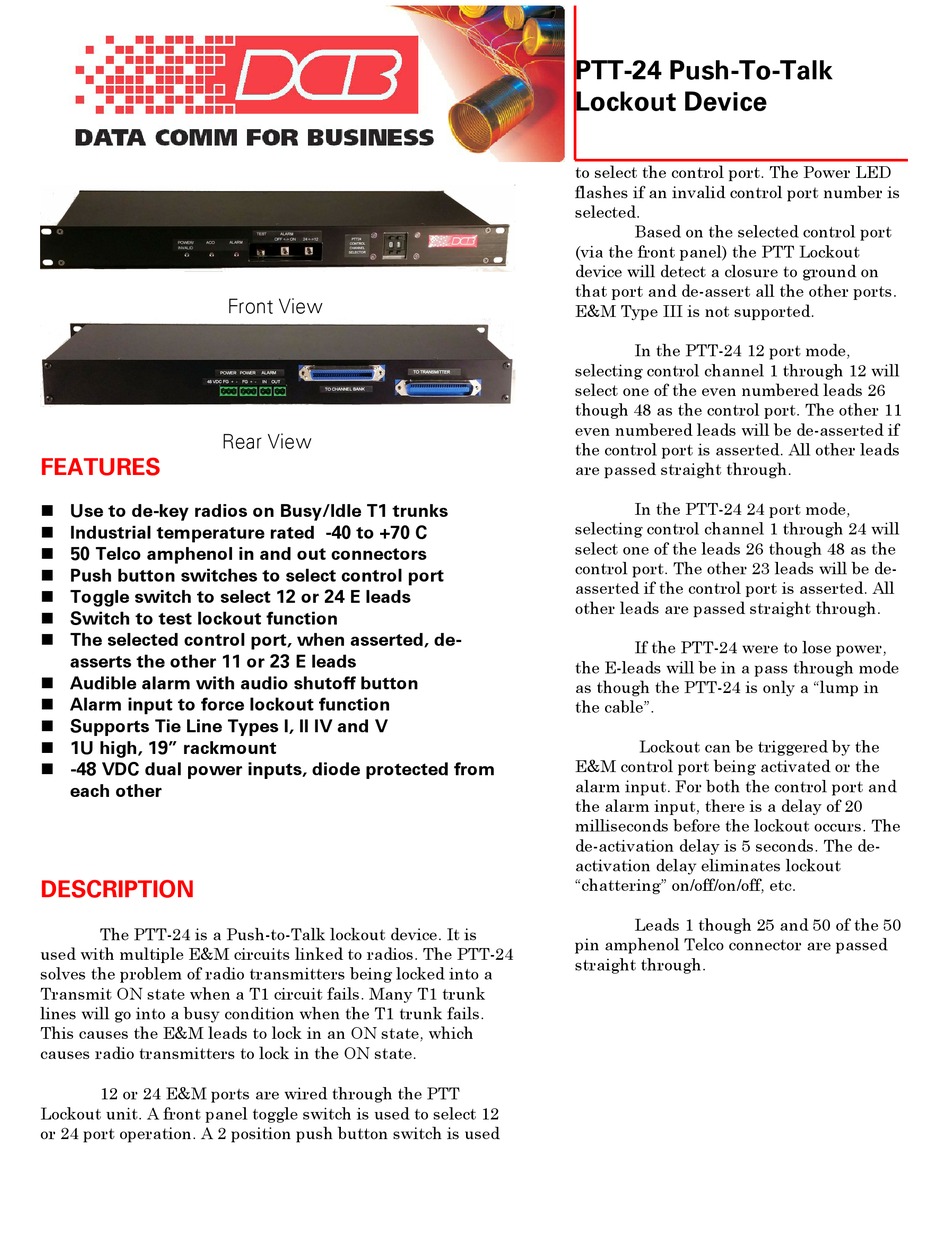

Front View
Rear View
PTT-24 Push-To-Talk
Lockout Device
to select the control port. The Power LED
flashes if an invalid control port number is
selected.
Based on the selected control port
(via the front panel) the PTT Lockout
device will detect a closure to ground on
that port and de-assert all the other ports.
E&M Type III is not supported.
In the PTT-24 12 port mode,
selecting control channel 1 through 12 will
select one of the even numbered leads 26
though 48 as the control port. The other 11
even numbered leads will be de-asserted if
the control port is asserted. All other leads
are passed straight through.
In the PTT-24 24 port mode,
selecting control channel 1 through 24 will
select one of the leads 26 though 48 as the
control port. The other 23 leads will be de-
asserted if the control port is asserted. All
other leads are passed straight through.
If the PTT-24 were to lose power,
the E-leads will be in a pass through mode
as though the PTT-24 is only a "lump in
the cable".
Lockout can be triggered by the
E&M control port being activated or the
alarm input. For both the control port and
the alarm input, there is a delay of 20
milliseconds before the lockout occurs. The
de-activation delay is 5 seconds. The de-
activation delay eliminates lockout
"chattering" on/off/on/off, etc.
Leads 1 though 25 and 50 of the 50
pin amphenol Telco connector are passed
straight through.
