"Results You Can Count On"
Model 458-3SL (3-Slot Chassis)
Rev.B
Date of Publication: 01/25/07

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 458-3SL and is the answer not in the manual?

Questions and answers

Related Manuals for Telebyte 458-3SL

Summary of Contents for Telebyte 458-3SL

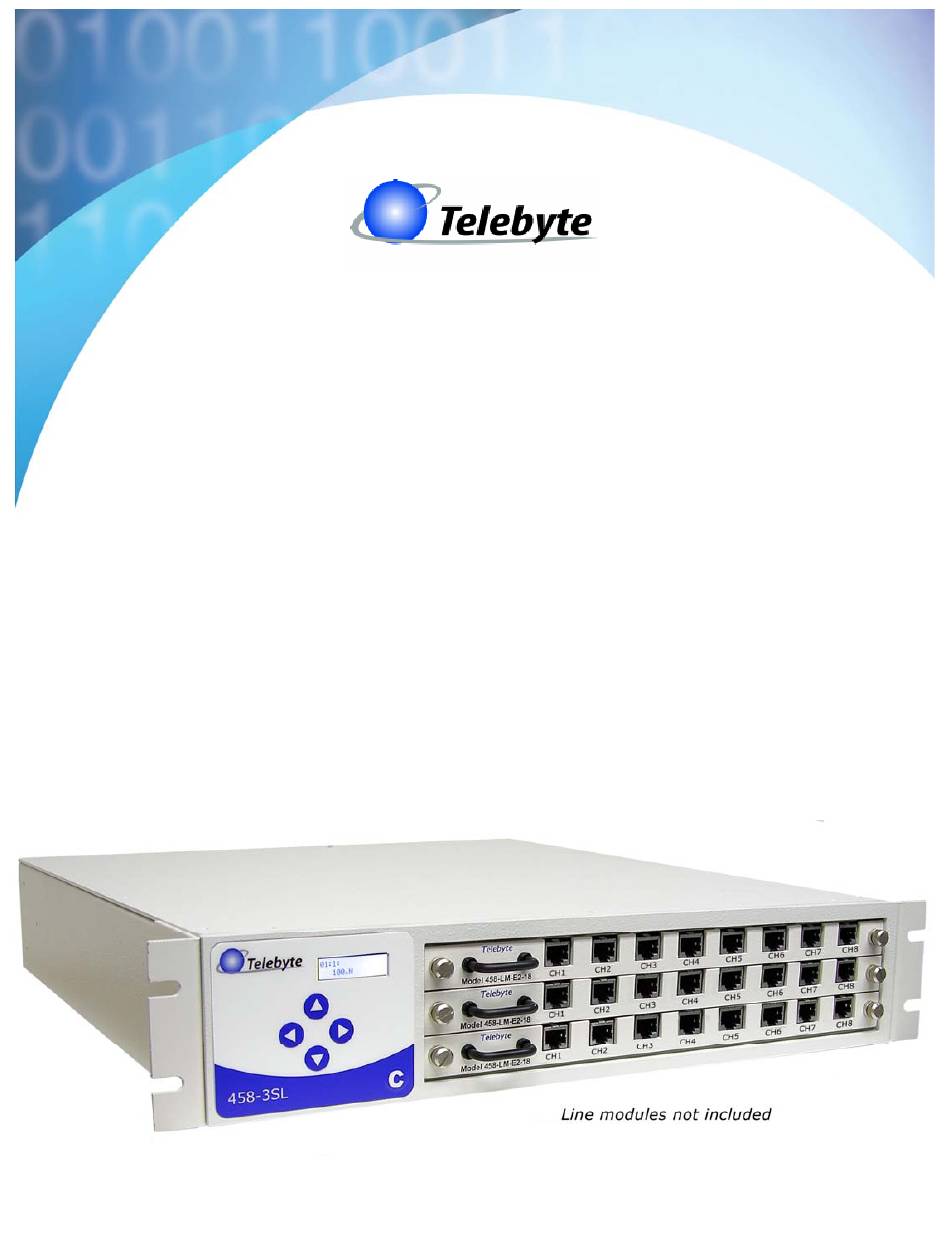

  • Page 1 “Results You Can Count On” Model 458-3SL (3-Slot Chassis) Rev.B Date of Publication: 01/25/07...
  • Page 2 This compact unit is extremely easy to use and a perfect fit when only one, two or three line modules are required. The Model 458-3SL is ideally suited for testing DSL modems and other bandwidth-compliant telecom devices in a high- volume production line environment.
  • Page 3 TELEBYTE, INC. warrants its broadband simulation equipment to be free from defects in material and workmanship, under normal and proper use and in its unmodified condition, for 12-months, starting on the date it is delivered for use. TELEBYTE’S sole obligation under this warranty shall be to furnish parts and labor for the repair or replacement of products found by TELEBYTE to be defective in material or workmanship during the warranty period.
  • Page 4 Equipment Returns Out of warranty equipment may be returned, prepaid, to the Greenlawn, N.Y. customer service facility. Return shipping charges will be billed to the customer. The repaired unit will have a 90-day warranty. In those cases where "no trouble" is found, a reduced charge will be billed to cover handling, testing, and packaging.

  • Page 5: Table Of Contents

    Table of Contents 1.0 Introduction ............................1 Chassis/Control Module ........................1 Line Module Series ......................... 2 2.0 Specifications ..........................3 3.0 RS-232/Ethernet Controls ....................... 4 RS-232 Connections ........................4 RS-232/Ethernet Connections ......................5 User Command Interface ........................ 5 RS-232 Mode Command List......................5 4.0 IEEE Controls ..........................

  • Page 6: Introduction

    1.0 Introduction The Model 458-3SL (3-Slot Chassis) is a compact, versatile unit that accepts 1, 2 or 3 line modules and controls from 1 - 24 channels. It is ideal for testing DSL modems and other bandwidth-compliant telecom devices in a high-volume production environment. While it can be used as a stand-alone unit, the built-in Control Module interfaces with a PC via RS-232, IEEE-488, or Ethernet.

  • Page 7: Line Module Series

    The image above shows the rear of the 458-3SL rear with three line modules installed (not included). Note the three types of connectors are RS232, IEEE-488 and Ethernet. In addition, the power connector door houses the fuses and voltage selector needed to change the AC Input voltage (if required).

  • Page 8: Specifications

    Operating: +32 F to +122 F (0 to +50 degrees C) Storage: 0 to 95% relative humidity (non-condensing) Remote Control RS-232: DB9 female (DCE); GPIB:IEEE488 24-pin connector. Connectors Ethernet: RJ-45 Plug-In Compatibility Accepts one, two or three 458 Line Modules Model 458-3SL (3-Slot Chassis) Rev A Page 3...

  • Page 9: Rs-232/Ethernet Controls

    CONNECTOR DB9 Figure 2 DB-9 for RS-232 Control Pin 2 on the Model 458-3SL connects to the RECEIVED DATA pin in the Communications Port Connector on the PC or controller. Pin 3 on the Model 458-3SL connects to the TRANSMIT DATA pin in the Communications Port Connector on the PC or controller.

  • Page 10: Rs-232/Ethernet Connections

    RS-232/Ethernet Connections RS-232 Commands may be sent over an Ethernet connection to control the Model 458-3SL. This allows users to connect to the 458-3SL over a LAN using the RS-232 commands listed in this section. The RS-232/Ethernet feature must be enabled prior to sending commands. Refer to section 6.0 Enabling RS-232/Ethernet Controls for detailed instructions.
  • Page 11 Set Length command sl:LM:H:LE,C Where: LM = Module slot number 01 - 02 (458-2SL) 01 – 03 (458-3SL) or 01 – 16 (458-CM) H = Channel number 1 - 8 LE = Length (in feet) Model 458-3SL (3-Slot Chassis) Rev A...
  • Page 12 Example: rl:01:1 reports the length of channel 1 on the board in slot 1. Read the Lengths of all channels on one board command rl:LM:a Example: rl:01:a reports the lengths of all channels on the board in slot 1. Model 458-3SL (3-Slot Chassis) Rev A Page 7...
  • Page 13 Read the lengths of all channels on all boards command rl:all Example: rl:all reports the lengths of all channels on all boards Read the serial number of one line module command rs:LM Read the serial numbers of all cards command rs:all Model 458-3SL (3-Slot Chassis) Rev A Page 8...

  • Page 14: Ieee Controls

    Interface Bus controller. User Command Interface The Model 458-3SL is intended to be operated from an IEEE Controller such as a PC equipped with an IEEE interface board. The set up of your computer and IEEE controller board may be different depending on the manufacturer of your equipment. Follow the set up instructions supplied with your equipment.

  • Page 15: Ieee Mode Command List

    Enable manual setting of lengths or configuration :lasterror Read last error Read description of last error *idn? Identify model no. and rev. Read model no. and software revision code *esr? Event Status Register read Read IEEE esr Model 458-3SL (3-Slot Chassis) Rev A Page 10...
  • Page 16 Enables Event Status Bits as defined by the numerical value of the bits following the command. *ESE? Used to read the Enabling Bits in the Event Status Enable Register. *ESR? Reads the Event Status Enable Register. Model 458-3SL (3-Slot Chassis) Rev A Page 11...
  • Page 17 Power On Set Length command :setcard:length:LM:H:LE,C Where: LM = Module slot number 01 - 02 (458-2SL) 01 – 03 (458-3SL) or 01 – 16 (458-CM) H = Channel number 1 - 8 LE = Length (in feet) C = Connect mode: N = connect both CO and CPE ends.
  • Page 18 Read the lengths of all channels on one board command :readcard:length:LM:a Example: :readcard:length:01:a Read the lengths of all channels on all boards command :readcard:length:all Read serial number of one line module command :readcard:sn:LM Read all serial numbers command :readcard:sn:all Model 458-3SL (3-Slot Chassis) Rev A Page 13...

  • Page 19: Enabling Rs-232/Ethernet Controls

    5.0 Enabling RS-232/Ethernet Controls Overview RS-232 commands may be sent over an Ethernet connection to control the Model 458-3SL. This is made possible by a Lantronix XPort transceiver installed in the unit. A one-time set up must be performed to assign an IP address to the transceiver and configure a virtual COM port. This is all done using a remote PC.
  • Page 20 In addition, note the MAC address of the XPort which is located on the back of the 458-3SL. This address allows the assignment software to locate the XPort. In some cases, firewall protection on the PC may interfere with the installation or assignment process.
  • Page 21 If the remote PC has more than one network adapter, a prompt appears. Select the adapter representing the network card connected to the same LAN as the XPort and click OK. 2. The DeviceInstaller control screen is shown, displaying a default IP address. Model 458-3SL (3-Slot Chassis) Rev A Page 16...
  • Page 22 3. If the default IP address is not correct, click the Assign IP icon on the top-left of the DeviceInstaller control screen. The Device Identification screen is displayed. 4. Enter the MAC address of the XPort device and click Next. The Assign Method screen is displayed. Model 458-3SL (3-Slot Chassis) Rev A Page 17...
  • Page 23 5. Select the Assign a specific IP address option and click Next. The IP Settings screen is displayed. 6. Enter the IP address in the IP address field. Model 458-3SL (3-Slot Chassis) Rev A Page 18...
  • Page 24 7. Enter the subnet mask for the network in the Subnet mask field. 8. If the remote PC and 458-3SL reside on separate subnets, enter the IP address of the subnet's router into the Default gateway field. 9. Click Next. The Assignment screen is shown.
  • Page 25 2. Click Run. The Welcome screen is displayed. 3. Click Next. The installation progress is shown and you are returned to the Welcome screen again. Click Next. The Choose Destination Location screen is displayed. Model 458-3SL (3-Slot Chassis) Rev A Page 20...
  • Page 26 A Setup Status screen is displayed, indicating the progress of the installation. When complete, the InstallShield Wizard Complete screen is shown. 5. Click Yes, I want to restart my computer now. Click Finish. Model 458-3SL (3-Slot Chassis) Rev A Page 21...
  • Page 27 Configuration b. For Windows XP: Click Start/All Programs/Lantronix/Redirector/Configuration 2. The Redirector configuration window is shown. 3. Click Com Setup on the left side of the screen. The Com Setup screen is displayed. Model 458-3SL (3-Slot Chassis) Rev A Page 22...
  • Page 28 8. Select Raw Mode and click OK to return to the Redirector configuration window. 9. Click Save. The message “Changes will take affect when port is reopened” is shown. Click OK to exit the program. Model 458-3SL (3-Slot Chassis) Rev A Page 23...
  • Page 29 Connecting to the Model 458-3SL To communicate with the 458-3SL, launch a terminal emulator program such as Hyper Terminal. Configure the connection within that program to use the COM port selected in the Redirector program. Use the following standard settings:...
  • Page 30 Web browser for direct access without using the DeviceInstaller program). 3. The Password screen is shown. If required, enter the Username and Password required. Click OK. The Device Server Configuration Manager screen is displayed. Model 458-3SL (3-Slot Chassis) Rev A Page 25...
  • Page 31 To ensure the local port setting matches the one entered when configuring the virtual COM port, do the following: 1. Click on Connection under the Channel 1 section. The Connection Settings screen appears. Model 458-3SL (3-Slot Chassis) Rev A Page 26...
  • Page 32 The Baud Rate settings used with the terminal emulator program must match the settings in the 458- 3SL and the transceiver. Set the Baud Rate on the 458-3SL using the keypad controls (refer to section 7.0 Keypad Controls). Set the Baud Rate for the transceiver using the DeviceInstaller program or a Telnet Connection.
  • Page 33 Apply Settings on the left-side menu bar. A message appears indicating the settings are being saved and a progress bar is shown. When the update to the transceiver is complete, the Device Server Configuration Manager screen is displayed. Model 458-3SL (3-Slot Chassis) Rev A Page 28...
  • Page 34 Baud Rate setting for Channel 1 is shown at the bottom of the screen. 5. Enter the desired Baud Rate to the right of the Baudrate <xxxx> ? prompt (where xxxx is the Baud Rate) and press Enter. Model 458-3SL (3-Slot Chassis) Rev A Page 29...
  • Page 35 Enter 9 to the right of the Your choice ? prompt to select Save and Exit and press Enter. 7. The message “Parameters stored. Connection to Host lost” is shown. The Telnet window closes automatically and the update is now complete. Model 458-3SL (3-Slot Chassis) Rev A Page 30...

  • Page 36: Keypad Controls

    5. C: Config switch used to access second menu for communications settings such as RS232 baud rates, GPIB addresses, etc. Baud Rates: 19200, 9600, 4800, 2400, 1200, 600 GPIB Addresses: 1 – 30 Model 458-3SL (3-Slot Chassis) Rev A Page 31...

  • Page 37: Ac-Input Voltage Selection

    Circular slot will align with post inside fuse housing Two fuses are during installation. inserted into the side with two fuse holders. 230-V and 240-V systems use two 250-V, 0.1250-A Time-logs fuses 5 x 20 mm Model 458-3SL (3-Slot Chassis) Rev A Page 32...
  • Page 38 Press gently to seat the fuse block. See Sample Installation at the end of these instructions. Model 458-3SL (3-Slot Chassis) Rev A Page 33...
  • Page 39 IEC connector and the edge containing the desired voltage first. Press gently until the card is seated in the slot. Replace the cover and verify the indicator pin shows the desired voltage. Model 458-3SL (3-Slot Chassis) Rev A Page 34...
  • Page 40 In addition, the fuse block is inserted with the fuse facing the unit and the circular slot on the left of the fuse block is aligned with the post. The two empty fuse holders used with the 230/240 V fuse configuration face the viewer and are not used in this example. Model 458-3SL (3-Slot Chassis) Rev A Page 35...
