Summary of Contents for Ropox Smartbox

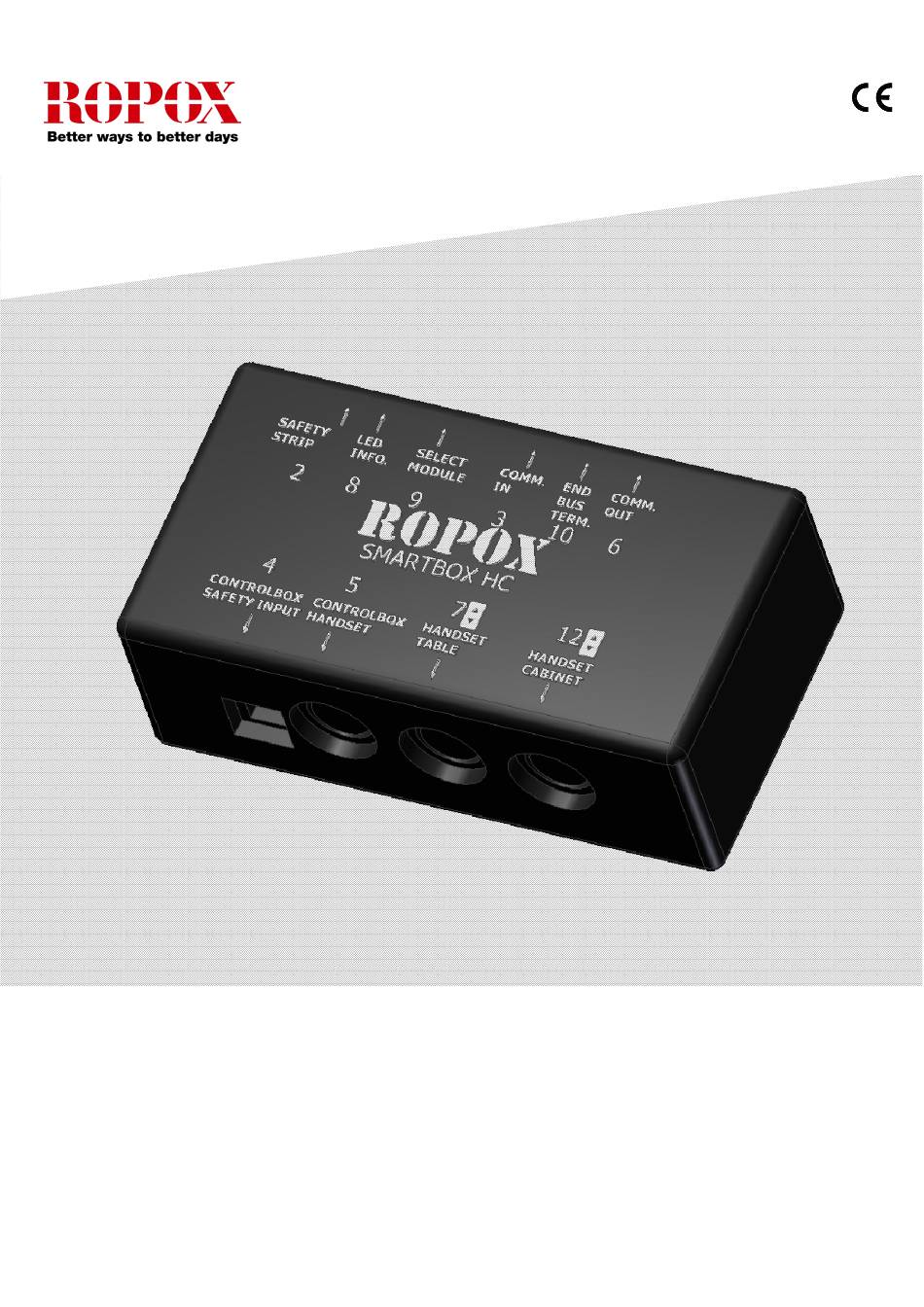

- Page 1 Smartbox, 30-69001-8 User Manual Mounting Instructions Keep always this folder with product! PDF 5956 / 01.01.2011...
-
Page 2: Table Of Contents
Safety strips and safty stopplates. Up to 4 FlexiElectric can be connected side by side with the use of the Smartbox. Above this you can also connect up to 4 VertiElectric side by side. This means that you can connect a maximum of 8 Smartboxes in one system. -
Page 3: List Of Components
L=50 cm Din 7Polet plug (Pos. 5 to controlbox) 6. Extension cable 98002008: 1 pc. L=250 cm male/female plug (Pos. 6 to next smartbox Pos. 3) 11. Spiral extension cable 98002016: 1 pc. (11) L =25-100 cm (black) to safety strip (Between Pos. -
Page 4: Connection Of Smartbox
7. Connection of the control switch for the table 12. Connection of the control switch for the VertiElectric (optional) Pos. 3 is not being used on the first Smartbox in the system. Pos. 6 is not being used on the last Smartbox in the system. -
Page 5: Connection Of Smartbox To Controlbox
Connection of Smartbox to controlbox Motor connections Safetystrip connection Antipinch connection to Smartbox Din plug (To controlbox handset) VertiElectric Table Connection between Smartboxes From Smartbox (Com. From Smartbox (Com. out) to Smartbox (Com. out) to Smartbox From Smartbox (Com. out) (Com. -
Page 6: Connection / Naming Of 8 Smartboxe In A System
Connection / naming of 8 Smartboxe in a system VertiElectric: VertiElectric: VertiElectric: VertiElectric: Last Smartbox =ON Smartbox =OFF Smartbox =OFF Smartbox =OFF Smartbox No. 2 Smartbox No. 4 Smartbox No. 6 Smartbox No. 8 3=Master FlexiElectric: FlexiElectric: FlexiElectric: FlexiElectric: First Smartbox =ON... -
Page 7: Initializing The Smartbox
You need to tell the system how many Smartboxes you have in the system. You have to indicate / set the first and the last Smartbox in the system. Use the DIP switch (pos 10) by setting No. 1 in ON position, both on the first and also on the last Smartbox . -
Page 8: Examples
Smartbox =OFF Smartbox No. 4 Smartbox No. 2 Smartbox No. 4 First Smartbox =ON Frst Smartbox =ON Smartbox No. 3 = Master Smartbox No. 3 = Master Smartbox =OFF Smartbox =OFF Last Smartbox =ON Smartbox No. 6 Smartbox No. 4 Smartbox No. -
Page 9: Performance Test
Now connect mains voltage to the control unit and proceed as follows: 5. Check that LED on master Smartbox (No. 3) flashes with the number of connected Smartboxes. For every FlexiElectric the following tests must be carried out: Press DOWN on the control switch, move the FlexiElectric frame to bottom position and check that the movement is even and smooth. -
Page 10: Cleaning And Maintenance
Cleaning and Maintenance Cleaning The frame must not be connected to the mains voltage during cleaning. Do not flush electrical components with water. Smartbox must only be cleaned with a soft dry cloth Trouble shooting LED indications Master Slave Description... -
Page 11: Combination Possibilities & Trapping Risks
On top of using the standard Safety strip and safetystopplates, this shows where the trapping risk will occur when putting up a system like this. By using the Smartbox you will solve this, and make your system even safer to use. - Page 12 Side 12...
- Page 13 Side 13...
- Page 14 Side 14...
-
Page 15: Ce-Marking
CE-Marking I hereby declare under sole responsibility that the following product: 30-69001 Smartbox conform to the following directives and standards: DIRECTIVES · 73/23EEC, Low voltage directive · 89/336/EEC, EMC-Directive STANDARDS DS/EN 60335-1 : 2002 DS/EN 61000-6-1: 2001 DS/EN 61000-6-3: 2001... -
Page 16: Complaints
Complaints We refer to our general Terms of sale and delivery on our homepage www.ropox.com ROPOX A/S Ringstedgade 221 DK – 4700 Naestved Tel.: +45 55 75 05 00 Fax.: +45 55 75 05 50 E-mail: info@ropox.dk www.ropox.com Side 16...
