RFX B/M - CURTAIN SENSOR
12 Vdc Reflex Sensor – Barrier with dual technology
Active Infrared + Passive Infrared - Alarm and Tamper Outputs by solid state relays N.C.
USER MANUAL
OPTEA s.r.l. Via
Saragat , 14
40062 Molinella (BO) – ITALY
Tel.: +39 051 665.00.71 Fax.: +39 051 665.00.28
Siti internet :
www.optea.it
www.optea-lift.com
Advertisement
Table of Contents
Summary of Contents for Optea RFX B

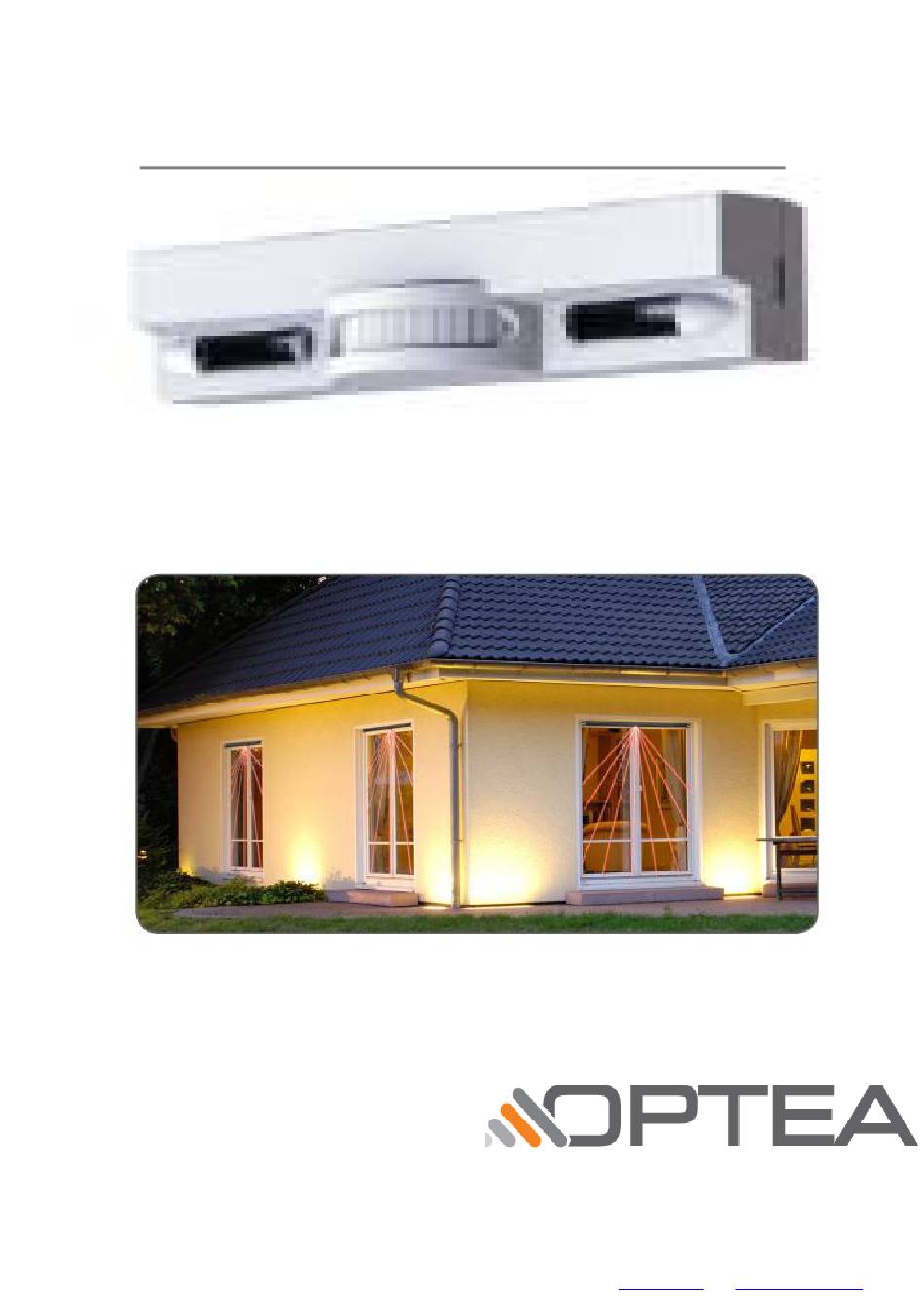

- Page 1 RFX B/M - CURTAIN SENSOR 12 Vdc Reflex Sensor – Barrier with dual technology Active Infrared + Passive Infrared - Alarm and Tamper Outputs by solid state relays N.C. USER MANUAL OPTEA s.r.l. Via Saragat , 14 40062 Molinella (BO) – ITALY Tel.: +39 051 665.00.71 Fax.: +39 051 665.00.28...
- Page 2 Mounting and wiring the RFX sensor a) Place the sensor at the center of the HIGH side of the area to be PROTECTED (between Window and roller shutter or immediately outside the roller shutter) b) Fix the MAGNET in the wall at 1 cm. to Sx or Dx from the center of the long side of the sensor by making an hole by the drill .
- Page 3 Adjustments RFX 3. Sensor The Sensor is already setted for a medium sensitivity that covers most of the installations, but if you want to increase or decrease the sensitivity of the Active and / or the Passive sensor to make the installation PET IMMUNE , you can adjust the 2 PARAMETERS separately from 1 (max) to 10 (min) of the sensitivity of the active and passive part.
- Page 4 : (210 x 40 x 40) mm. Lenght x Width x Height Weight : 0,15 Kg. Order codes Description Reflex Sensor at 12 Vdc for doors and windows WHITE RFX B Reflex Sensor at 12 Vdc for doors and windows BROWN RFX M...
