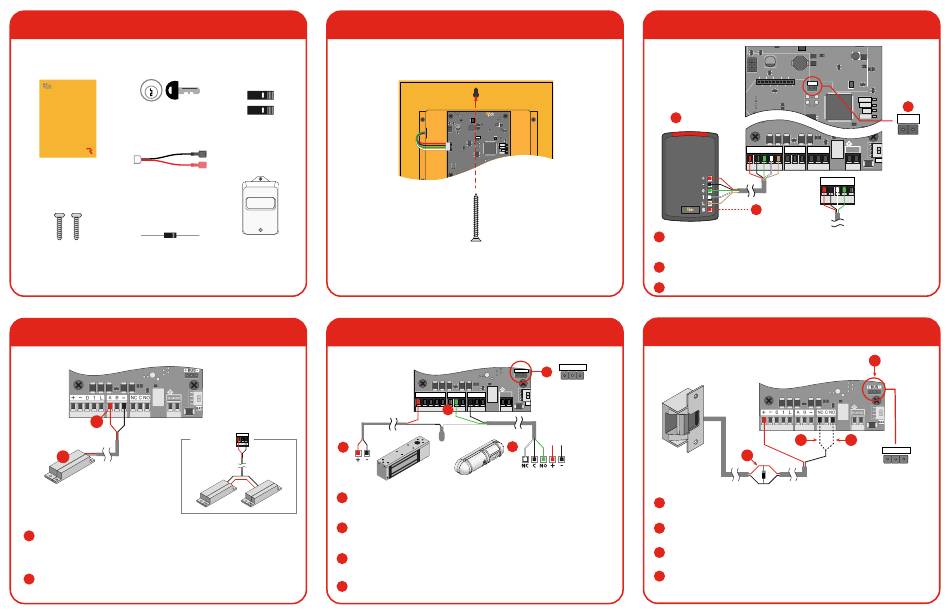

PDK RED CN cloud node Quick Start Manual

1. Package Contents

Can Lock (1)
Red Cloud Node
Controller (1)
Battery Leads (1)
Enclosure Screws (2) Diode (1)

4. Input A / DPS Connection

B
DPS Contact Double
DPS Contact
A
A
DPS (Door Position Sensor) - The DPS is mounted on the door frame with a
22/2 wire running from the DPS to the controller. Wire the DPS to the
controller as shown above. For reporting double doors, wire the two-door
position in series and connect to the controller.
B
AUX Input - A software rule can be programmed to trigger events or
outputs based on input triggers.

2. Mounting Controller

Jumpers (2)
Transformer (1)
14 VDC, 2 Amp
Mounting

5. Input B / REX Connection

-
A B
A
Maglock
A
Maglock
- When installing a Maglock, it is typical to install a REX (request to
exit) at the door for free egress. Run an 18/2 wire from the maglock to the
controller and REX as shown.
B
REX (Request to Exit)
18/5 wire. Wire the REX to the controller and maglock, as shown above. If
reporting is not needed in the system, simply eliminate the green input wire.
C Jumper Block - Use to designated (+) or (-) board voltage out of NO and NC.
If the jumper is off, the relay is a standard dry contact requiring an input into
C on the relay.
D
- A software rule can be programmed to trigger events or outputs
AUX Input
based on input triggers.
OSDP
POWER
HEART
LINK
RELAY
+ BUS -
+ - -
0 1 L A B NC C NO
12-24VDC
BAT
-
Mount the enclosure securely to a wall.
+ -
BUS
+ - C
BUS
+ - -
0 1 L
A B NC C NO
12-24VDC
BAT
D
If using a powered REX,
run to any 12VDC
output on controller.
B
REX
- The REX is mounted at your desired location with an

3. Reader Connection

OSDP
Red 1 Controller
OSDP
A
Reader
ETHERNET
+ - + -
- -
0 1 L 0 1 L A B NC C NO
A B NC C NO
ACTIVITY
+ - -
0 1 L
A B NC C NO
+ -
C
OSDP
Wiring
A
Reader - The reader is mounted at the door with a 22/5 or 22/6 wire running
to the door controller. Wire the reader to the controller as shown above. Be
sure to check the polarity and voltage prior to powering the controller.
B
OSDP - Place jumper to enable OSDP (see OSDP reference guide at the end
of this guide for more info)
C Piezo - Can be connected to available relay and configured with software.

6. Locking Relay

B
OR
A
A
Diode
- The provided diode must be installed when using a strike. Install at
the strike with the gray stripe on positive and black on negative.
B
NC
- Used for maglocks (or strikes in fail-safe configuration). Connect the
negative (-) of the maglock or strike to NC on the controller.
C NO - Used for strikes in fail-secure configuration. Connect the negative (-) of
the strike to NO on the controller.
D
Jumper Block - Use to designate (+) or (-) board voltage out of NO and NC. If
the jumper is off, the relay is a standard dry contact requiring an input into C
on the relay.
