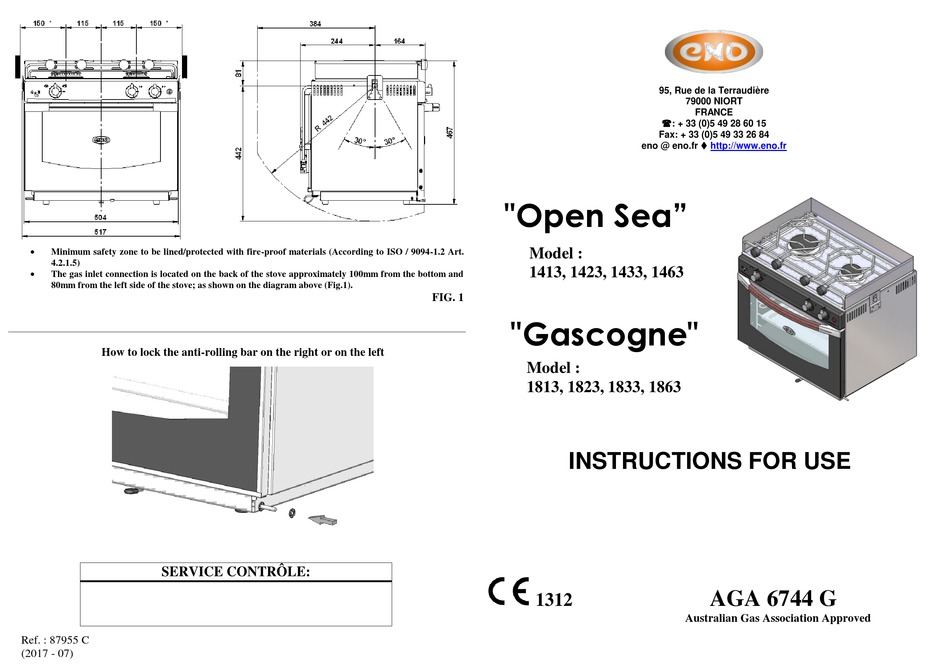

Minimum safety zone to be lined/protected with fire-proof materials (According to ISO / 9094-1.2 Art.
4.2.1.5)
The gas inlet connection is located on the back of the stove approximately 100mm from the bottom and
80mm from the left side of the stove; as shown on the diagram above (Fig.1).
How to lock the anti-rolling bar on the right or on the left
FIG. 2
SERVICE CONTRÔLE:
Ref. : 87955 C
(2017 - 07)

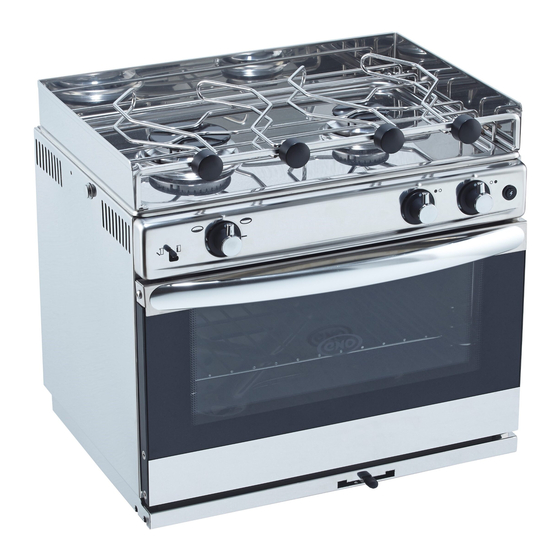

"Open Sea"
"Oc
Model :
1413, 1423, 1433, 1463
ean"
FIG. 1
"Gascogne"
Model :
1813, 1823, 1833, 1863
INSTRUCTIONS FOR USE
1312
95, Rue de la Terraudière
79000 NIORT
FRANCE
: + 33 (0)5 49 28 60 15
Fax: + 33 (0)5 49 33 26 84
eno @ eno.fr
http://www.eno.fr
AGA 6744 G
Australian Gas Association Approved
Advertisement
Table of Contents
Related Manuals for Eno Open Sea 1413
Summary of Contents for Eno Open Sea 1413
- Page 1 95, Rue de la Terraudière 79000 NIORT FRANCE : + 33 (0)5 49 28 60 15 Fax: + 33 (0)5 49 33 26 84 eno @ eno.fr http://www.eno.fr "Open Sea” "Oc Model : Minimum safety zone to be lined/protected with fire-proof materials (According to ISO / 9094-1.2 Art.
- Page 2 19 litre capacity (Paragraph VIII). UNLOCKING THE BRACKETS: ENO’s marine cookers are fitted with a thermocouple safety device on each burner (cooker and oven) and a 1.5V Handle To remove the cooker from the brackets: electronic ignition device.
- Page 3 Installation: The cooker connection point is a male 3/8 SAE 18 UNF flare fitting. It is located 280mm from the floor and 55 mm from VII – BURNERS IGNITION the left hand side of the cooker. The cooker can be connected with an AGA approved flexible hose assembly that complies with AS/NZS 1869, 8mm ID class subjected to abrasion, kinking or permanent deformation and should be able Each burner is controlled by a tap with control knob.
- Page 4 VIII – GAS ADJUSTMENT ABNORMAL OPERATION JETS AND OUTPUT While operating, the flame should be mostly blue. Nominal Propane 2,75kPa Check that burner parts are correctly repositioned after cleaning and if abnormal operation output Burner persists have the appliance serviced by a qualified person. Watt Mj/h Jet size...
