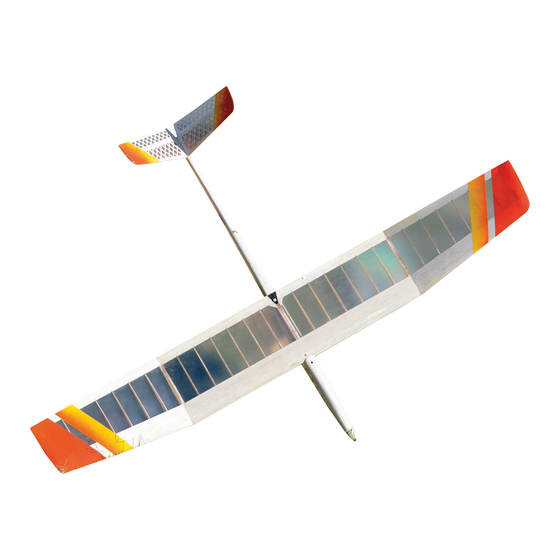

Summary of Contents for HL-Gliders Mucke 150 CNC

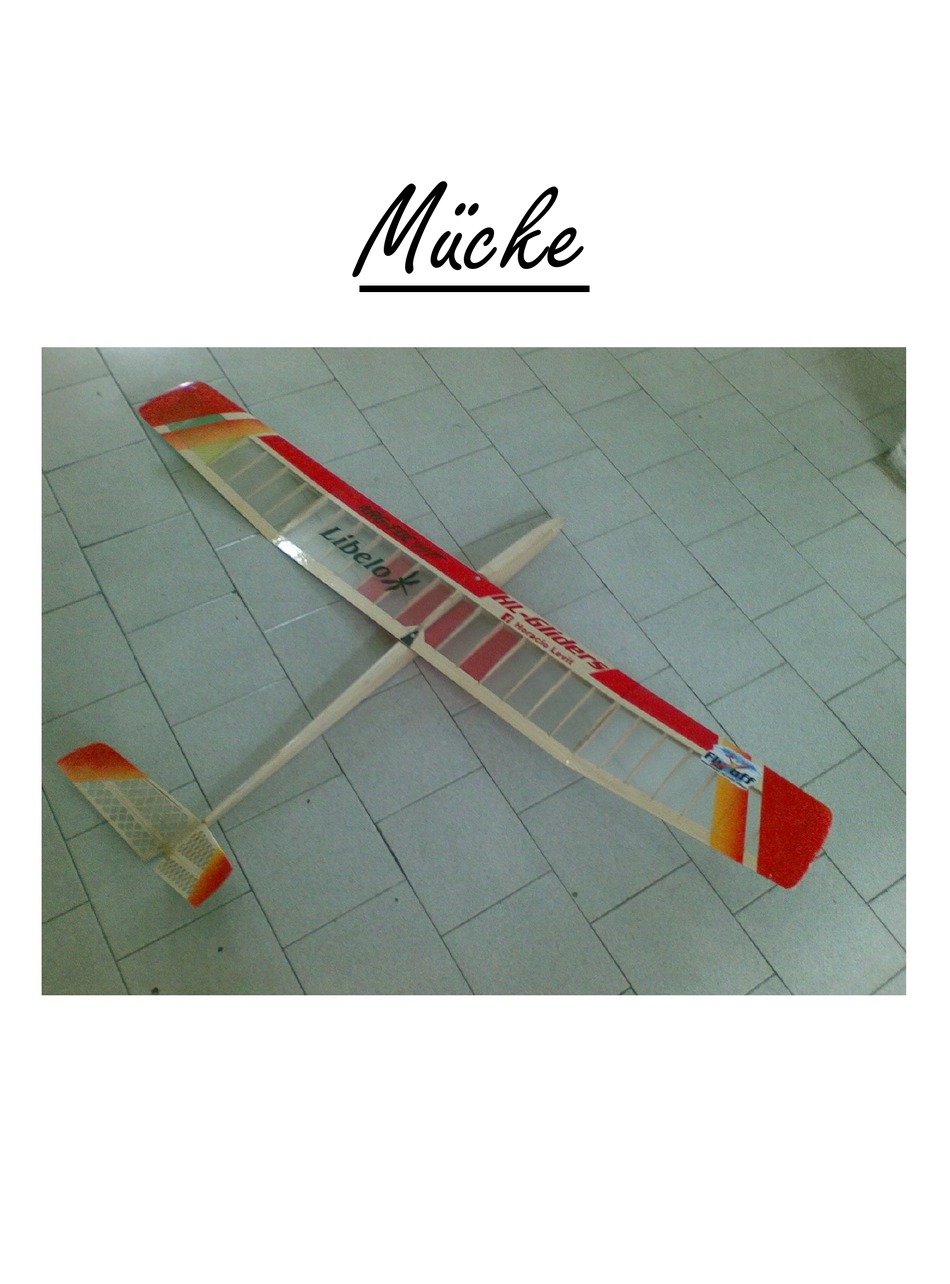

- Page 1 Mücke...
- Page 2 Building Wingtips Tape plan on building board. Put the plastic sealing over it. Pin the trailing edge on the building board. Glue rib 15 and 3 in place. Cut bottom spare to length. And Glue the bottom spare under rib 15 and 3. Glue rib 5, 7 9, 11 and 13 in place...
- Page 3 Glue Wingtip in place Glue top spare (balsa) in place.
- Page 4 Glue nose rib in place. Wait with Glue in rib 1. This rib will be glued in when midsection and tip are glued together. Glue the leading edge strip in place. After the glue dried, get the tip(s) from the building board. Sand careful the leading edge.
- Page 5 Glue the middle ribs 1c together and on the balsa underside Glue the side ribs 1 (3mm) at the end of the wing. Glue Ribs 1C on the 1,5 mm balsa Glue ribs 1 on the spar and trailing edge. Glue the top spar (balsa) in place...
- Page 6 Glue in the front Ribs 1c Glue leading edge to ribs Glue in Webbing between rib 1c to the end of the wing. Glue in the triangle to the middle ribs and trailing edge Sand down triangles so top deck fits. Glue balsa on top of middle wing between trailing edge and spar.
- Page 7 Join tips and middle section together Place the middle section on the building plate. Make from scrap wood a support for the wingtip (4 to 5 inch) Test fit wingtip to the middle section and cut and sand the topspar to fit. Sand the trailing edge on an angle to fit the middle section.
- Page 8 Building the Fuselage Glue the fuselage doubler to the side off the fuselage. Make two in mirror of each other. Glue W1 and W1” together Glue W2 and W2”together. Gue 3x3 balsa to the site of the fuselage (bottom side) Glue 3x3 balsa to the site of the fuselage (top back side)
- Page 9 Glue in F2 and W1, W1” at the bottom side to both sides Glue in F3 and W2, W2”at bottom side to both sides...
- Page 10 Glue tail part together with a drop of glue Glue rib F1 in place. Glue the top of the fuselage. Make a hole for the bowden cable. (see picture) and Put in the bowden cable. Glue the bowden cable inside the fuselage at some points.
- Page 11 Put on the wing and mark the holes for the wing mount. Glue the bottom side to the fuselage. Top off the nose Glue strips in place. After drying only glue the front part to the fuselage.
- Page 12 After drying sand the nose and fuselage. After sanding cut the lid (the not glued part) so battery compartment is accessible. (electro version. In the glider version it is the servo compartment. For the glider version Glue nose parts together When the glue is dry glue nose part to F1 Sand the nose in shape.
