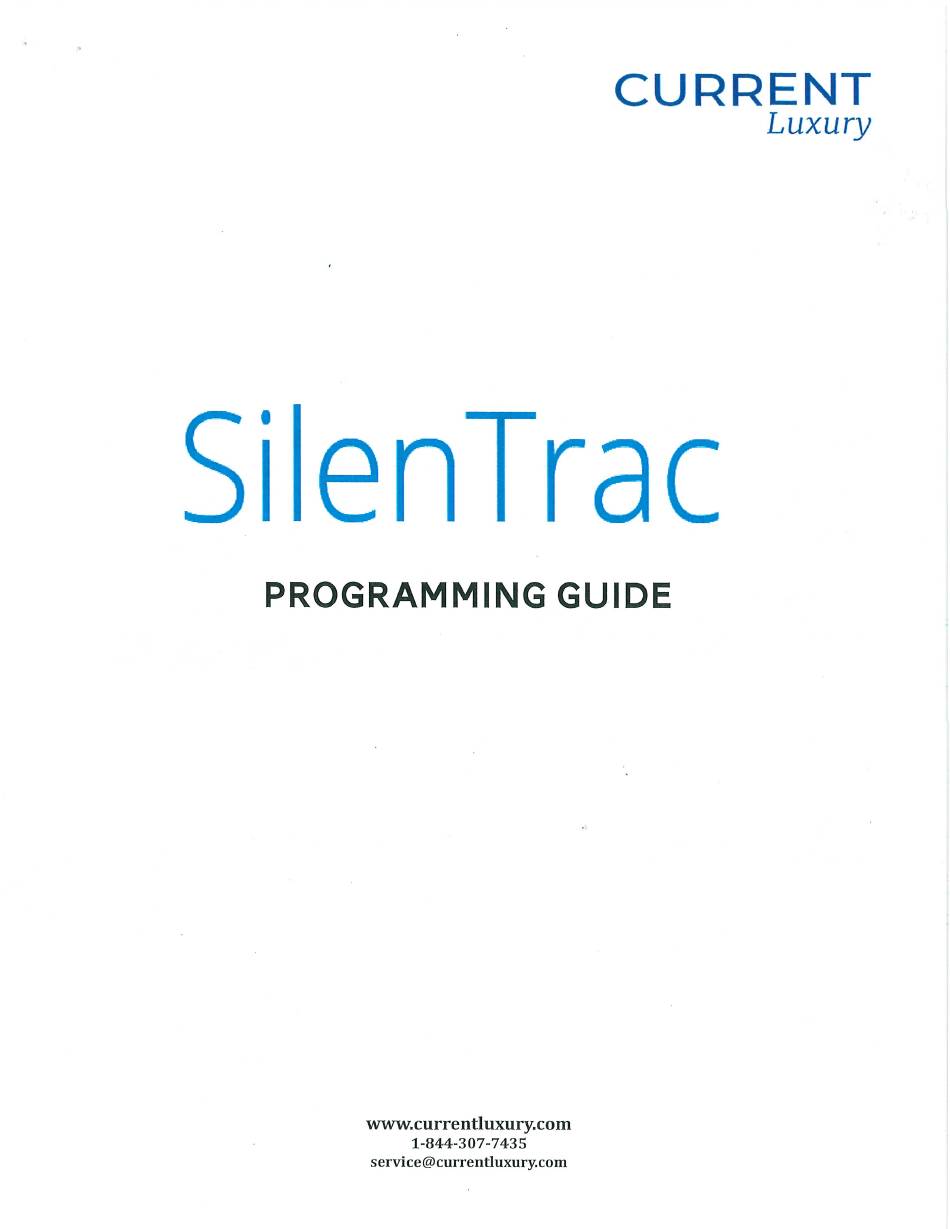

CURRENT Luxury SilenTrac Programming Manual

Hide thumbs Also See for SilenTrac:
Table of Contents

Advertisement

Quick Links

Download this manual
SETUP WITH THE BRIDGE AND APP............................................................................................Page 2
SETUP WITH THE BRIDGE (NO APP)...........................................................................................Page 3
CHANGE POSITIONS ON THE DRAPERY TRACK (SINGLE).......................................................Page 4
CHANGE POSITIONS ON THE DRAPERY TRACK (DUAL)..........................................................Page 6
PAIR THE REMOTE TO THE DRAPERY (ZIGBEE)....................................................................Page 10
INTEGRATE WITH GOOGLE HOME - ZIGBEE USING THE CURRENT PRODUCTS CORP
BRIDGE...........................................................................................................................................Page 13
PAIR THE REMOTE TO THE DRAPERY (FM)...........................................................................Page 18
ENABLE OR DISABLE SMART ASSIST........................................................................................Page 19
GROUPING MULTIPLE DRAPERY TOGETHER..........................................................................Page 20
REMOVE THE DRAPERY FROM A NETWORK...........................................................................Page 21
MASTER RESET THE DRAPERY..................................................................................................Page 22
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SilenTrac and is the answer not in the manual?

Questions and answers

Related Manuals for CURRENT Luxury SilenTrac

Summary of Contents for CURRENT Luxury SilenTrac

  • Page 1: Table Of Contents

    INTEGRATE WITH AMAZON ECHO PLUS- USE ALEXA’S BUILT IN ZIGBEE HUB….....Page 12 INTEGRATE WITH GOOGLE HOME - ZIGBEE USING THE CURRENT PRODUCTS CORP BRIDGE………………………………………………………………………………………........…...Page 13 SILENTRAC REMOTE PROGRAMMING INSTRUCTIONS WITHOUT A BRIDGE….….....Page 15 PAIR THE REMOTE TO THE DRAPERY (FM)………………………………………….....……Page 18 ENABLE OR DISABLE SMART ASSIST……………………………………………………......Page 19 GROUPING MULTIPLE DRAPERY TOGETHER……………………………......…….…………Page 20...

  • Page 2: Setup With The Bridge And App

    1. Download the App Setup with the bridge and app Download the MyCurtains App from the google play store (for Android) or the App Store (for Apple devices). Click “Register Account” to create user account. Open, app and select add bridge. 2.

  • Page 3: Setup With The Bridge (No App)

    Setup with the bridge (No App) 1. Connect Power to Bridge Find an outlet in a location central to the drapery you are installing in the home. Insert the micro-usb end of the included power cable into the power port on the bridge. Plug the other end of the cable into an outlet.

  • Page 4: Change Positions On The Drapery Track (Single)

    For additional help during installation of your drapery track, visit www.currentproductscorp.com/support/drapery-track Change Positions on the drapery Track (Single) or call 1-844-307-7435. 1. ENTER LEARN OPEN POSITION MODE Change the open Position Pull down and release the Pendant so the drapery moves towards the direction you would like to set as the “open”...
  • Page 5 1. ENTER LEARN CLOSE POSITION MODE Change the Close Position Pull down and release the Pendant so the drapery moves towards the direction you would like to set as the “close” position. Pull down and release the Pendant to close drapery After the drapery reaches the position, it will stop moving.

  • Page 6: Change Positions On The Drapery Track (Dual)

    Change Positions on the drapery Track (dual) 1. ENTER LEARN OPEN POSITION MODE Change the open Position for the Room Side drapery (Motor 1) Pull down and release the Pendant so the room side drapery moves towards the direction you would like to set as the “open” position.
  • Page 7 1. ENTER LEARN CLOSE POSITION MODE Change the Close Position for the room side drapery (MOTOR 1) Pull down and release the Pendant so the drapery moves towards the direction you would like to set as the “close” position. Pull down Pendant to move room side drapery to closed position After the drapery reaches the position, it will stop moving.

  • Page 8: Change The Open Position For The Window Side Drapery (Motor 2)

    CHANGE THE OPEN POSITION FOR THE WINDOW SIDE DRAPERY (MOTOR 2) 1. ENTER LEARN OPEN POSITION MODE Lift release Pendant drapery moves towards the direction you would like to set as the “open” position. Lift up and release Pendant to move drapery to open position After the drapery reaches the position, it will stop moving.

  • Page 9: Change The Close Position For The Window Side Drapery (Motor 2)

    Change the Close Position for the window side drapery (Motor 2) 1. ENTER LEARN CLOSE POSITION MODE Lift up and release the Pendant so the drapery moves towards the direction you would like to set as the “close” position. Lift up and release Pendant to move drapery to closed position After the drapery reaches the position, it will stop moving.

  • Page 10: Pair The Remote To The Drapery (Zigbee)

    1. Connect Remote to Bridge Pair the Remote to the drapery (Zigbee) If using the Current Products Corp. bridge, use a tack or other object to depress and hold the recessed button on the bottom of the bridge. The LED should flash blue to show it is in pairing mode. Pull the “Pull”...

  • Page 11: Integrate With Amazon Echo Or Echo Plus Zigbee Using The Current Products Corp Bridge

    Integrate with Amazon Echo OR Echo Plus ZigBee using the Current Products corp bridge 1. SET UP YOUR ECHO OR ECHO PLUS AND CPC BRIDGE If your Alexa device is not yet set up, do so now by following the instructions that came with your device.

  • Page 12: Integrate With Amazon Echo Plus- Use Alexa's Built In Zigbee Hub

    Integrate with Amazon Echo Plus- Use Alexa’s built in ZigBee hub 1. SET UP YOUR ECHO PLUS If your Alexa device is not yet set up, do so now by following the instructions that came with your device. 2. ADD A DEVICE From the menu in the Alexa app, go to “Devices”...

  • Page 13: Bridge

    Integrate with Google home ZigBee using the Current Products corp bridge 1. SET UP YOUR GOOGLE HOME AND CPC BRIDGE If your Google Home device is not yet set up, do so now by following the instructions that came with your device. Also be sure the bridge and app have been setup.
  • Page 14 3. SIGN IN AND CUSTOMIZE Use the login credentials you created when you first set up your bridge and app to log into the Current Products Drapery service. Add devices already linked to your account to “rooms” of the home, creating rooms as desired.

  • Page 15: Silentrac Remote Programming Instructions Without A Bridge

    SILENTRAC REMOTE PROGRAMMING INSTRUCTIONS WITHOUT A BRIDGE Programming Button LEARN A REMOTE TO A NETWORK Pull the “Pull” tab from the bottom of the remote. Next, push any button on the face of the remote. The LEDs should scroll to show it is seeking a bridge. Then should flash to confirm it has paired to a network.
  • Page 16 2. LEARN A DEVICE TO THE REMOTE. On multi-channel remotes, select the channel you wish to pair to by pressing the Channel button until the LED corresponding with the appropriate channel is lit. Tug twice on pendant of the drapery to put in learn mode. Depress the “programming”...
  • Page 17 6. FOR DUAL TRACK MOTOR 1 AND MOTOR 2 DRAPERY POSITIONS. On multi-channel remotes, select the channel of the drapery that you wish to reverse the direction on by pressing the Channel button until the LED corresponding with the appropriate channel is lit. Depress the “programming”...

  • Page 18: Pair The Remote To The Drapery (Fm)

    Pair the Remote to the drapery (FM) 1. INITIATE LEARN MODE Pull down and release the Pendant twice to enter learn mode. After the first tug, the drapery should start moving. The second tug should stop it. Pull down and release Pendant 2.

  • Page 19: Enable Or Disable Smart Assist

    Enable or disable smart assist Smart Assist allows users to pull the curtain manually and have the movement complete automatically. All drapery tracks come with Smart Assist enabled. 1. MANUALLY MOVE THE DRAPERY Begin with the drapery in the full open or full closed position. Manually move the drapery more than a foot towards the opposite direction.

  • Page 20: Grouping Multiple Drapery Together

    The grouping feature is available on all units with a sensor box. Grouping allows users to control multiple units simultaneously Grouping Multiple Drapery Together with one manual command. Grouping also allows units to move together simultaneously when any one unit in the group has a sensor automated command triggered.

  • Page 21: Remove The Drapery From A Network

    Remove the drapery from a network In some instances it may become necessary to remove your drapery from the network. Removing the drapery from the network will remove the drapery from the bridge and you will need to re-add it back to your network before you can use the remote or app.

  • Page 22: Master Reset The Drapery

    In some instances it may become necessary to master reset your drapery. Performing a master reset will restore the drapery to Master Reset the Drapery its factory settings, erasing saved open and closed positions, groups, and all paired remotes. 1. REMOVE POWER Disconnect power from the unit.
  • Page 23 Statements FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by Current Products Co.
  • Page 24 844-307-7435 service@currentluxury.com www.currentluxury.com...
