VivaChek VivaGuard EF-100A Owner's Manual

Forehead/ear thermometer

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Infrared Fo

Thermome

Owner's M

orehead/Ear

eter

Manual

Table of Contents

Need help?

Do you have a question about the VivaGuard EF-100A and is the answer not in the manual?

Questions and answers

Summary of Contents for VivaChek VivaGuard EF-100A

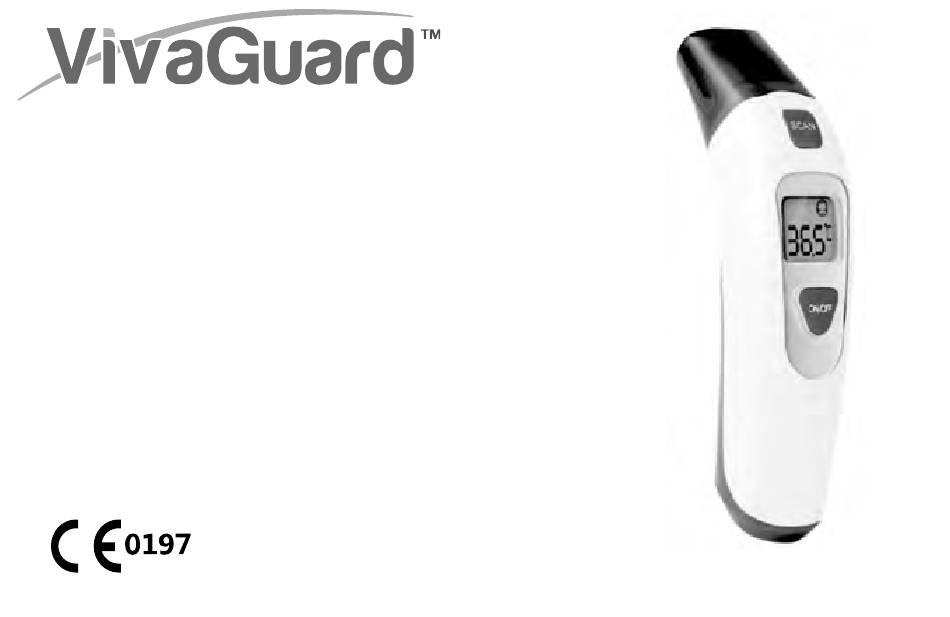

Page 1 Infrared Fo orehead/Ear Thermome eter Owner’s M Manual ...
Page 2: Table Of Contents
CONTENT Introduction…………………………………………………………………………………………………………………...1 Intended Use……………………………………………………….………………………………………………………...1 The Advantage of Multi-mode Infrared Thermometer………………….…………………………………………..…….1 Necessary Safety Instructions…………………………….………………….…………………………………….………2 Instructions for Product Designs…………………………….…………………………………………………..……4 How to Measure the Forehead Temperature……………………….………………………………………………….…4 How to Measure the Ear Temperature........................5 How to Measure the Object Surface and Environment Temperature……………….………………………………….5 Instructions for Display and Operation…….………………………………….……………….……………….………… 6 Technical Specifications…………………………..…………….…………………………………………………………9 After-sale Service…………………………………..………………………………………………………………………11 Warning Signs and Symbols Used………….……………………………………………………………………………11...
Page 3: Introduction
Introduction Thank you for choosing the Infrared Forehead/Ear Thermometer. With the unique technology, the Infrared Forehead/Ear thermometer can give the result with three modes, stable measurement and without the interference from ambient temperature .The product will self-test every time it starts up to make sure the normal operation and accuracy.
Page 4: Necessary Safety Instructions
Convenient for use  Special ergonomic design to facilitate operation.  No inconvenience would be caused to your daily life, It’s available for measurement when your children’s sleeping.  It provides comfortable user experience compared with anus thermometer for children, rapid reading and simple operation compared with mouth thermometer.
Page 5  Please do not use the product if the temperature sensor or the Dual mode infrared thermometer shows any sign of damage. Do not try to Repair the product if it is damaged.  This product consists of precision parts with high quality. Please prevent the product from falling off. Protection shall be provided for no intense sock and vibration.
Page 6: Instructions For Product Designs
 Medical assistance can’t be replaced by the use of infrared Dual mode Infrared thermometer.  The multi-mode infrared thermometer is not waterproof. Keep it away from water. Instructions for Product Designs (1) Sensor (Take off the cover before detecting the eardrum temperature) (2) Scan: start detection of forehead and eardrum temperature (3) On/mode (4) LCD display...
Page 7: How To Measure The Ear Temperature
How to Measure the Ear Temperature Take off the sensor cover, insert the sensor into the ear canal. Then press the button scan after a short tick the temperature reading is shown on LCD display. You can take another measurement when the backlight is off How to Measure the Object Surface and Environment Temperature Long press Mode button select the object mode.
Page 8: Instructions For Display And Operation
(5) Please make sure that there is no intense emotion and movement before measuring. (6) If is transferred from one condition to another which has different ambient temperature , it is suggested to deposit for more than 30 minutes, and please follow the rule (2). (7) If the tester is transferred from one condition to another which has different ambient temperature, it is suggested to have a rest for more than 10minutes, and please follow the rule(2).
Page 9 is off. 43°C/109.4°F 3. Press button on/mode under startup mode and enter Ear temperature mode: 37.5°C /99.5°F ≤ t < 43°C / measurement mode again. Attentions: 109.4°F, there shall be 10 short There shall be 10 short rapid ticks and red backlit when ticks and red backlit for 3 the measured temperature exceed 37.5°C / seconds.
Page 10 There are 20 Groups of data. The LCD shall only display “---“, °C /°F and M signal silence with M signal twinkling if there is no test data. C/F conversion LCD display Operational steps Sound and backlit Press button scan within 5 seconds until it shows unit. silence Then release and press again to shift the unit.
Page 11: Technical Specifications
In any mode, if no operation about 60 seconds, it will power off automatically. Attention:  Electromagnetic interference: This product contains sensitive electronic component and shall not use under the condition with electromagnetic interference (such as the place nearby the mobile phones and microwaves). ...
Page 12 ± 0.2°C (± 0.4°F): 35.0°C - 42.0°C (95°F - 107.6°F) ± 0.3°C (± 0.5°F): 42.1°C - 43.0°C (107.7°F - 109.4°F) Object mode: ± 4°C (± 7.2°F): 0°C - 4.9°C (32°F - 40.8°F) ± 1°C (± 2°F): 5.0°C - 60.0°C (41°F - 140.0°F) ±...
Page 13: After-Sale Service
Memory function Memorize 20 groups measured temperature. Current consumption Istand-by<2μA; Iworking<1mA; IBuzzer on<2mA; Ibanklight<15mA Operational conditions 10°C - 40°C (50°F -104°F) / 15 - 93%RH Type of measuring Applicable for forehead temperature and ear temperature Battery Changeable for two 1.5V triple AAA batteries Battery life More than 3000 times After-sale Service...
Page 14 Serial number Caution, consult accompanying doc cuments CE mark Authorized representative in the Eu uropean Community Type BF Equipment Do not use if package is damaged IP22 Waterproof Level Waste electrical and electronic equ ipment Storage Temperature and Relativ ve Humidity 12 ...
Page 15 Warranty Registration Card Complete this warranty card and mail it promptly _____________________________________________________________________________ Name ________________________________________________________________________ Street Address ________________________________________________________________________ APT# City Country ________________________________________________________________________ State / Zip Home Telephone ________________________________________________________________________ Meter Serial Number Date of Purchase (See label on back of meter) (Month-Day-Year) ________________________________________________________________________ I would like to receive special offers and updates from Universal...
Page 16 ...
