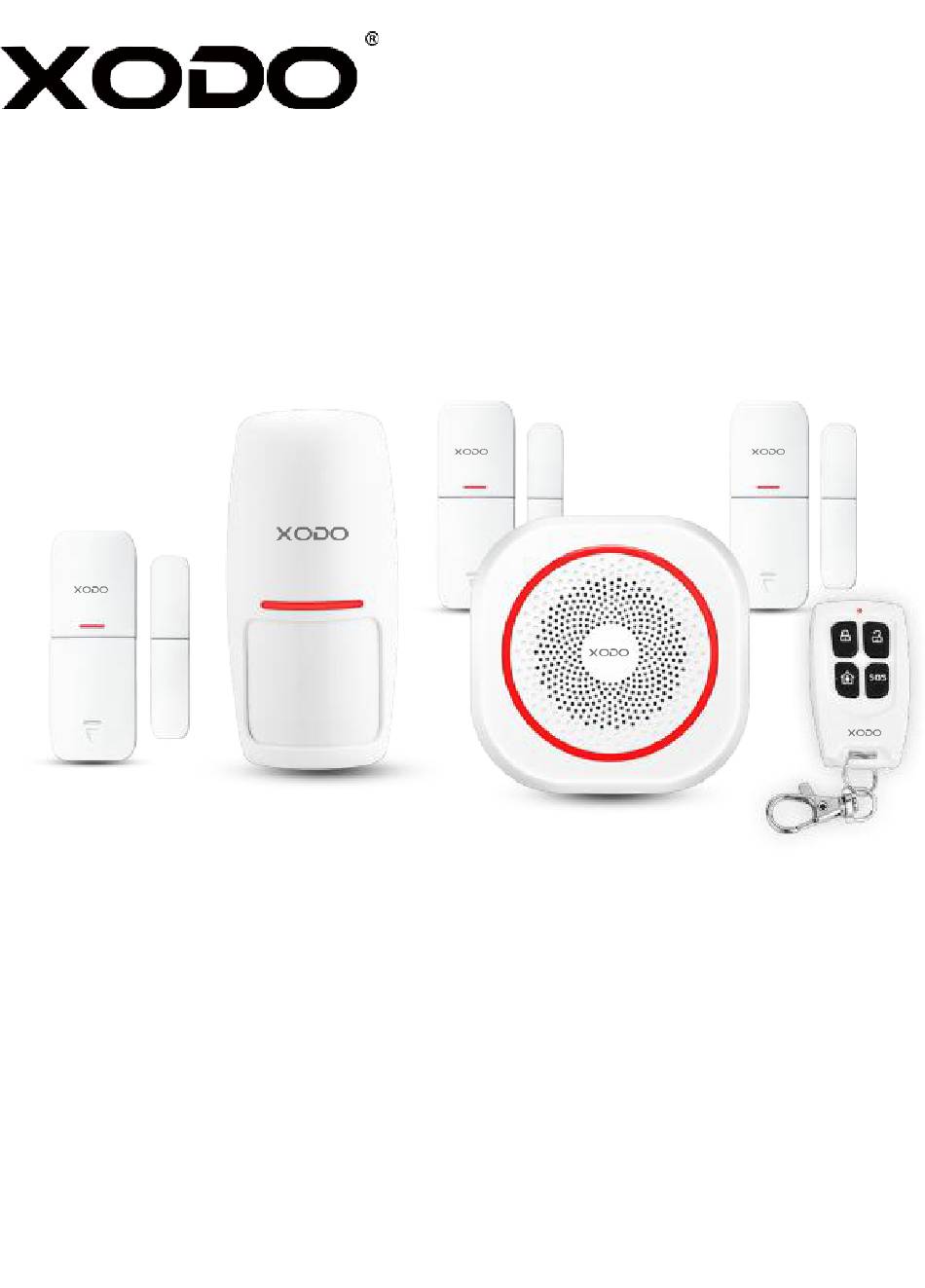

  • Page 1 Smart Home Security Kit PK6 User Manual...
  • Page 2 Welcome Thank you for purchasing Xodo Smart home products! We are commi�ed to bringing you excellence. Xodo smart home technology products are convenient, make your life more comfortable and provide a more dynamic lifestyle. General No�ce Always make sure to follow safety instruc�ons.
  • Page 3 What’s included in the box You will find the following contents included to help you get started: PK6 User Manual x1 Wireless Door/Window Sensor ×3 3M Glue ×3 Smart Alarm Gateway x1 Remote Control x1 Moun�ng Screw Set Wireless Mo�on Sensor x1 Bracket x1 Moun�ng Screw Set...

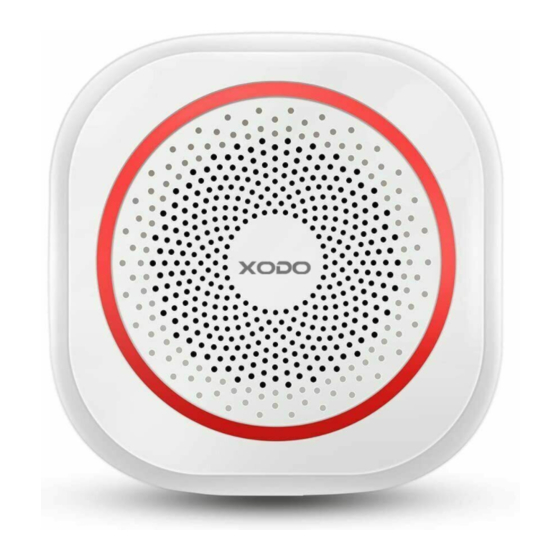

  • Page 4 Smart Alarm Gateway SA2 Input Voltage: AC 85V-250V Built-in lithium ba�ery: 250mah 3.7V Ba�ery Standby Time: 4 hours WIFI Standard: IEEE 802.11 b/g/n Wireless Receiving frequency: 433M ±75KHZ 330K EV1527 Wireless transmi�ng frequency: 315M ±75KHZ 330K EV1527 Wireless distance: ≤262 feet (in open space) Working Temperature: 14°F - 122°F Humidity: ≤90%RH Size: 2.75*2.75*1.57 inch...
  • Page 5 Installa�on of Smart Alarm Gateway Installa�on: Rotate clockwise a�er alignment Removal: Hold the upper right bu�on and rotate counterclockwise Wireless Door/Window Sensor DS2 Ba�ery Voltage: 12V 23A Standby current: ≤10uA Alarm current: ≤45mA Wireless frequency: 433MHz Control Range: ＜250 Feet Ba�ery cover Indicator light Ba�ery bay...
  • Page 6 Installa�on of Door/Window Sensor The ba�ery cover can be removed by sliding it down (Slide the sensor and ba�ery cover in opposite direc�ons and the ba�ery cover will come off so that the ba�ery can be replaced). The sensor can be installed using the 3M adhesive.
  • Page 7 Wireless Mo�on Sensor PS2 Ba�ery Voltage: 9V 6F22 Standby Current: ≤35uA Alarm Current: ≤45mA Wireless Frequency: 433MHz Control Range: ＜250 Feet Detec�on Range: ＜25 Feet Shell switch Indicator Light Power Bu�on Sensor Ba�ery bay Power Bu�on — Switch power on/off. Shell switch —...
  • Page 8 Installa�on of Wireless Mo�on Sensor 1. Install the arm to the bracket. 2. Install the bracket where you want to install. 3. Install the base. 4. Adjust the angle you want.
  • Page 9 Range of Wireless Mo�on Sensor 6 feet high is recommended PIR 110° 6 feet 25 feet...
  • Page 10 Download and Install the Xodo Smart APP Download and install the APP. It can be also be found by searching "XODO Smart" by Con�xo Inc. in the App Store (for IOS) or Google Play Store (for Android). Xodo Smart Open the APP The welcome screen will appear and then you will be asked to login or register a profile.
  • Page 11 Adding Devices You will be able to manually add a device. Select Siren to con�nue. Detec�ng SA2 When detec�ng devices manually, power on the device and confirm the indicator light is blinking rapidly. (Hold the reset bu�on for 5 seconds, the indicator light will blink once per second.
  • Page 12 Connect to a WiFi network The next step to connect the smart device is to connect to a WiFi network. If the proper network is not listed on this page, select the “Change Network” link to see a list of available networks.
  • Page 13 “Completed” bu�on at the bo�om of screen to con�nue to next step. Home Screen Updated Now that your device has been added, it will show on the home screen along with all other paired Xodo Smart Products. Now you are all set.
  • Page 14 4. Press the "SOS" bu�on to trigger the alarm. 5. Press the “Message History” bu�on to view the alarm history. 6. Press the “Accessories” bu�on to view connected Xodo accessories and connect new accessories. 7. Press the ”Se�ng” bu�on to set the siren alarm.
  • Page 15 10. Alarm no�fica�on: Turn on or off the message push when device alarm 11. Delay alarm �me: Delay into Arming Mode 12. Mode effec�ve countdown beep: When this func�on is turned on, there will be a counter prompt when switching modes 13.
  • Page 16 9. Check for Firmware Upgrade allows you to check for new so�ware updates to install. 10. Remove device will remove the Smart Alarm Gateway from the Xodo Smart app and remove pairing. This is necessary if pairing with a new device.
  • Page 17 DS2 Wireless Door/Window Sensor , the SA2 Smart Alarm Gateway will make a prompt. Click “Confirm”, your DS2 Wireless Door/Window Sensor is now ready to work. (The XODO DS2 Wireless Door/Window Sensor DS2 can only work with XODO SA2 Smart Alarm Gateway.)
  • Page 18 Wireless Door/Window Sensor Home Screen The home screen will show the live Wireless Door/Window Sensor status. 1. Press the “Click to view more” bu�on to view the alarm history. 2. Press the “ ” bu�on to set the Wireless Door/Window Sensor alarm mode.
  • Page 19 7. Add to Home Screen allows you to add the Wireless Door/Window Sensor to the home screen of your smartphone. 8. Remove device will remove the Wireless Door/Window Sensor from the Xodo Smart app and remove pairing. This is necessary if pairing with a new device.
  • Page 20 PS2 Wireless Mo�on Sensor, the SA2 Smart Alarm Gateway will make a prompt. Click “Confirm”, your PS2 Wireless Mo�on Sensor is now ready to work. (The XODO PS2 Wireless Mo�on Sensor can only work with XODO SA2 Smart Alarm Gateway.)
  • Page 21 Wireless Mo�on Sensor Home Screen The home screen will show the live Wireless Mo�on Sensor status. 1. Press the “Click to view more” bu�on to view the alarm history. 2. Press the ” ” bu�on to set the Wireless Mo�on Sensor alarm mode.
  • Page 22 7. Add to Home Screen allows you to add the Wireless Mo�on Sensor to the home screen of your smartphone. 8. Remove device will remove the Wireless Mo�on Sensor from the Xodo Smart app and remove pairing. This is necessary if pairing with a new device.
  • Page 23 Link Xodo Smart account to Google Home Screen 1. Open Google Play Store or Apple Store and download Google Home 2. Open the Google Home app. Click on Get Started. 3. Login with a Google Account or create a new account.
  • Page 24 9. The app will show se�ngs to add devices, setup rou�nes, and adjust se�ngs. 10. If the devices are already installed and setup through the Xodo app, you can select the "Works with Google" setup op�on to con�nue. 11. Configure the home se�ngs by adding address and name to a "Home"...
  • Page 25 Control your smart devices through Google Home Now you can control your smart devices through Google Home. Take XODO bulb as the example, the supported voice commands are as below: 1. Ok Google, turn on/off bedroom light. 2. Ok Google, set bedroom light to 50 percent.
  • Page 26 8. Click Se�ngs 9. Manage Smart Home Devices to verify Smart Life has been added. 10. You will be redirected to the account link page. Type in your Xodo Smart account and password, don't forget to select the country/region where your account belongs to.
  • Page 27 My Home Page Device Controls 1. Some devices can set group control. Click " " in the upper right corner 2. Click "Create Group". 3. The page displays all devices with the same model number and available to be added as a group. Select the device and click “Confirm”.
  • Page 28 4.Enter group name and click “Save” to finish. 5.When a group has been created successfully, the page will be automa�cally redirected to the group control panel, where grouped devices can be managed. Smart Features 1 Click “Automa�on” on the "Smart" page. 2 Click "+"...
  • Page 29 4 Select the ac�on to occur. 5 Click “Name” and enter the automa�on name. 6 Click “Effec�ve Period” to set a valid �me period for automa�on. 7 Click “Save” and then click “Yes” to create the automa�on. 8.Click the switch in the lower right corner to select to execute or turn off the automa�on.
  • Page 30 Smart Features - Tap-to-Run 1 Click “Tap-to-Run” on the "Smart" page. 2 Click "+" to go to the smart se�ngs page. 3 Click “launch Tap To Run“ to add set automa�on. 4 Click the task to occur. 5 Click “Name” and enter the Tap-to-Run’s name and click “Save” to finish.
  • Page 31 See our website for more products www.con�xo.com We enjoy your feedback! Xodo is a subdivision of the Con�xo Inc. group., and the respec�ve logos are registered trademarks of Con�xo Inc. and may not be used, reproduced, or altered without wri�en Permission. All other trademarks are the property of their respec�ve owners and used with permission.
