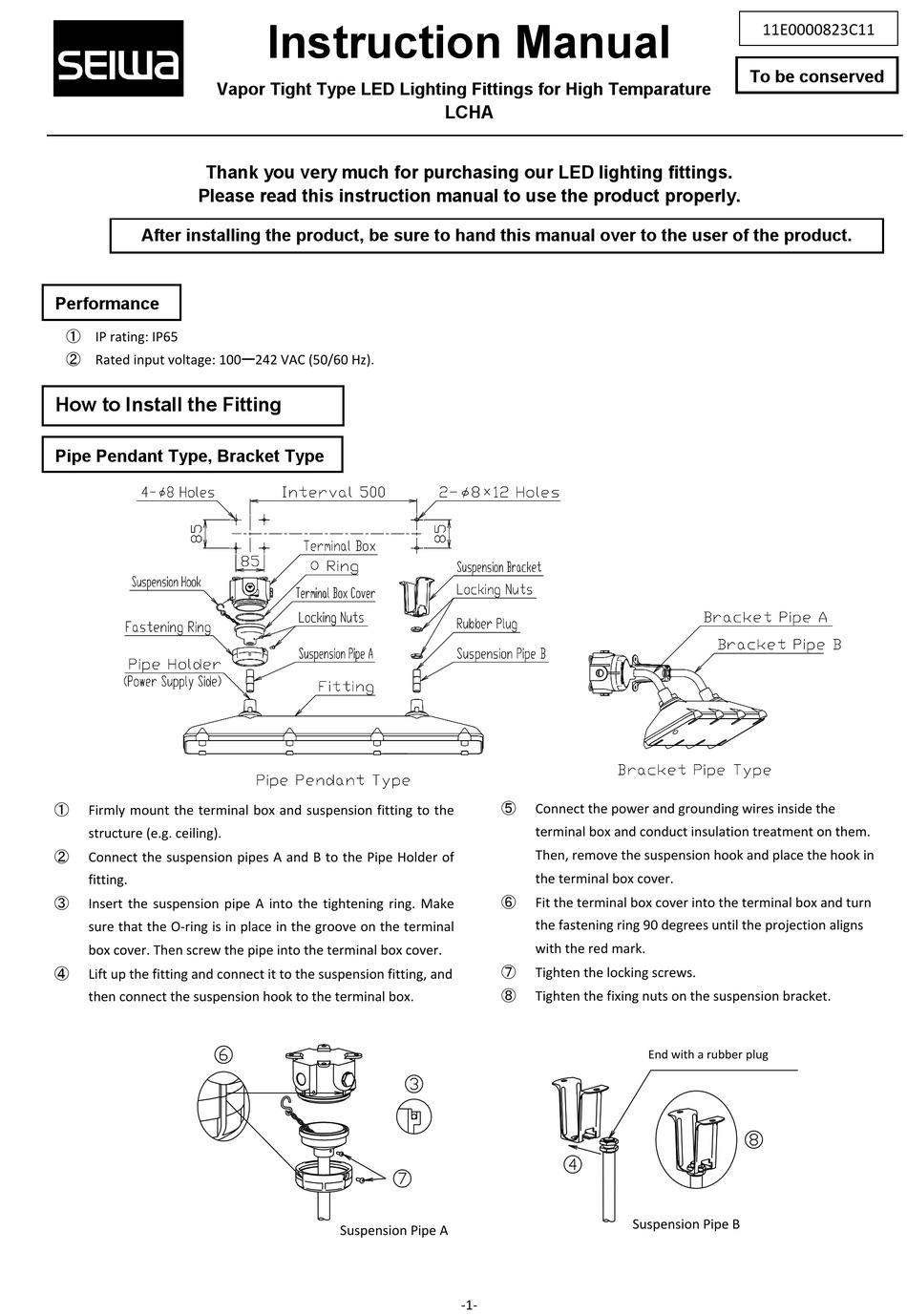

Seiwa LCHA Series Instruction Manual

Vapor Tight Type LED Lighting Fittings for High Temparature
Thank you very much for purchasing our LED lighting fittings.
Please read this instruction manual to use the product properly.
After installing the product, be sure to hand this manual over to the user of the product.
Performance
IP rating: IP65
Rated input voltage: 100ー242 VAC (50/60 Hz).

How to Install the Fitting

Pipe Pendant Type, Bracket Type
Firmly mount the terminal box and suspension fitting to the
structure (e.g. ceiling).
Connect the suspension pipes A and B to the Pipe Holder of
fitting.
Insert the suspension pipe A into the tightening ring. Make
sure that the O‐ring is in place in the groove on the terminal
box cover. Then screw the pipe into the terminal box cover.
Lift up the fitting and connect it to the suspension fitting, and
then connect the suspension hook to the terminal box.
Instruction Manual
Suspension Pipe A
LCHA
Connect the power and grounding wires inside the
terminal box and conduct insulation treatment on them.
Then, remove the suspension hook and place the hook in
the terminal box cover.
Fit the terminal box cover into the terminal box and turn
the fastening ring 90 degrees until the projection aligns
with the red mark.
Tighten the locking screws.
Tighten the fixing nuts on the suspension bracket.
‐1‐
11E0000823C11
To be conserved
End with a rubber plug
Suspension Pipe B
