Summary of Contents for SIMCom Wireless Solutions SIM5320AL EVB

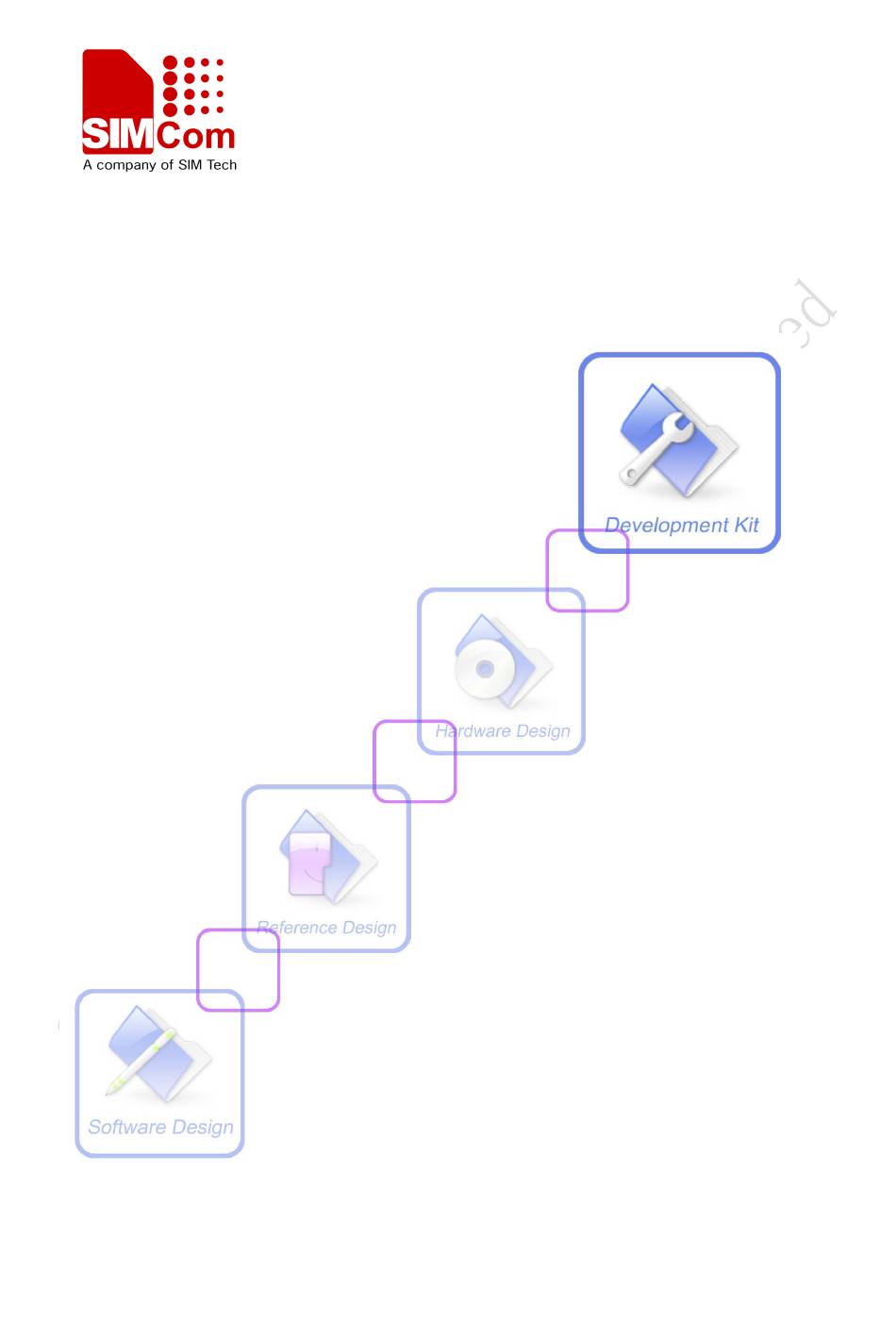

- Page 1 Development Kit Manual SIM5320AL_EVB_User Guide_V1.01...
- Page 2 All rights reserved in the event of grant of a patent or the registration of a utility model or design. All specification supplied herein are subject to change without notice at any time. Copyright © Shanghai SIMCom Wireless Solutions Ltd. 2011...
-
Page 3: Table Of Contents
Contents Contents...............................2 Figure Index............................2 Table Index............................3 Version History........................... 3 1 Overview............................4 2 SIM5320AL EVB..........................5 3 EVB accessories..........................7 4 Accessory Interface.......................... 8 4.1 Power Interface........................8 4.2 SIM card interface........................9 4.3 Antenna Interface......................... 10 4.4 RS232 Interface........................10 4.5 Operating Status LED...................... -
Page 4: Version History
TABLE 5: SERIAL INTERFACE......................10 TABLE 6: NETWORK STATUS LED....................11 TABLE 7: USB INTERFACE......................... 12 TABLE 8: SWITCH INTERFACE......................13 TABLE 9: IO INTERFACE........................14 Version History Data Version Description of change Author 2014-08-20 1.01 Origin 3G Team SIM5320AL EVB User Guide 20.08.2014... -
Page 5: Overview
Smart Machine Smart Decision 1 Overview This document gives the usage of SIM5320AL EVB, user can get useful information about the SIM5320AL EVB quickly through this document. All the functions of the SIM5320AL can be used by this board. NOTE: This document is subject to change without notice at any time. -

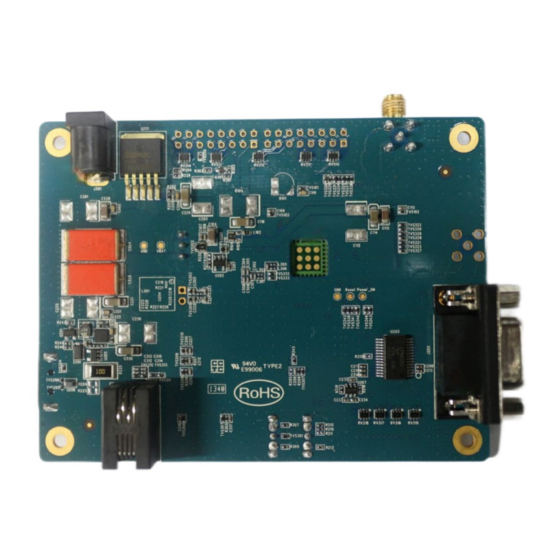

Page 6: Sim5320Al Evb
Smart Machine Smart Decision 2 SIM5320AL EVB SIM5320AL EVB User Guide 20.08.2014... - Page 7 K: IO interface 2（including PCM，GPIO, UART, I2C, etc） L: Main antenna SMA M: Handset connector N: UART connector O: Adapter connector P: SIM5320AL JTAG test point All hardware Sub-interfaces included in SIM5320AL EVB are described in detail in following chapters. SIM5320AL EVB User Guide 20.08.2014...
-
Page 8: Evb Accessories
VSWR ≤1.5 (900MHz) ≤2 (1800MHz) Gain: 1dBi Input Impedance (Ω): 50 Polarization Type: Vertical Connector Type: SMA C: USB cable D: 6V DC adapter NOTE: The maximum gain of the RF antenna gain should not exceed 1dBi for end-users. SIM5320AL EVB User Guide 20.08.2014... -
Page 9: Accessory Interface
This board could be powered by USB bus. User should connect the USB pin. USB_VBAT is the USB power out.If user wants to use USB VBUS to power up the module, please connect connector VBAT with connector USB_VBAT as following figure shows.and disconnect Adapter_VBAT. SIM5320AL EVB User Guide 20.08.2014... -
Page 10: Sim Card Interface
USIM Card Power output automatic V_USIM output on USIM mode，one is 3.0V±10%, another is 1.8V±10%. Current is about 10mA. USIM_RESET USIM Card Reset USIM_CLK USIM Card Clock Ground SIM_VPP V_USIM USIM_DATA USIM Card data I/O SIM5320AL EVB User Guide 20.08.2014... -
Page 11: Antenna Interface
4.3 Antenna Interface Figure 5: Main Antenna connector 4.4 RS232 Interface Serial Port Figure 7: J205 is 9 pins standard RS232 UART interface. It can be connected to a PC directly. Table 4: Serial Interface Signal Description SIM5320AL EVB User Guide 20.08.2014... -
Page 12: Operating Status Led
Module is not running Module is running, or voice call is connected Module find the network and registered 800ms On/ Off Data communication 200ms On/ Off Description D201 ADAPTER power indicator D202 USB power indicator SIM5320AL EVB User Guide 20.08.2014... -
Page 13: Usb Interface
Smart Machine Smart Decision 4.6 USB interface Figure 9: USB Interface It is a normal 4Pin USB connector. Table 6: USB interface Signal Description USB_VBUS USB_DM D+ line USB_ DP D- line Ground SIM5320AL EVB User Guide 20.08.2014... -
Page 14: Switch Interface
Figure 10: Switch Interface Table 7: Switch interface Switch Signal Description RS232 chip SHUTDOWN UART switch GPIO4 RF switch (S301) ON : Normal mode OFF : Flight mode RESET Reset the module PWRER_ON Power on the module SIM5320AL EVB User Guide 20.08.2014... -
Page 15: Io Interface
Smart Machine Smart Decision 4.8 IO interface IO Interface Figure 11: Table 8: IO interface SIM5320AL EVB User Guide 20.08.2014... - Page 16 KEYPAD_4 Bit 4 drive to the pad matrix I2C_SDA I2C data I2C_SCL I2C clock GPIO0 General input pin for module wake up interrupt. GPIO2 General input pin. GPIO3 General output pin. GPIO5 General output pin. SIM5320AL EVB User Guide 20.08.2014...
-
Page 17: Quickly Start
UART to UART cable, please make sure that the pin sequences of it is same as those of cable in EVB kit, pin sequences of which are shown in Figure SIM5320AL EVB User Guide 20.08.2014... -
Page 18: Connecting Net And Calling
Connect the USB port line to the USB port, connect the direct current source adapter, run the download program, and choose the correct image, please follow the QDL downloading menu for the operation. Update procedure is described in the figure below. SIM5320AL EVB User Guide 20.08.2014... -
Page 19: Turning Off
SIM5320AL current consumption in the sleep mode on our EVB. User need to follow steps. (1) Remove the jumper from J202, and provide a 3.8V DC power supply (such as: Agilent 66319B) for VBAT on SIM5320AL EVB; (2) Install a SIM card and a RF antenna; (3) Shutdown UART by S204;... - Page 20 H i g h 47. 2376m A M a x 103. 9990m A current consumption in the sleep mode Figure 14: Contact us: Shanghai SIMCom Wireless Solutions Ltd. Add: Building A，SIM Technology Building，No.633，Jinzhong Road，Changning Disdrict，Shanghai P.R. China 200335 Tel: +86-21-3252 3300 Fax: +86-21-3252 3301 URL: www.sim.com...
