morse MORStak 289F Operator's Manual

The Specialist In Drum Handling Equipment
CONTENTS
Receiving Procedures. . . . . . . . . . . . . . . . . . . .
Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Information. . . . . . . . . . . . . . . . . . . . .
Machine Description. . . . . . . . . . . . . . . . . . .
Operating Instructions. . . . . . . . . . . . . . .. . . . .
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . .
Center of Gravity Dimensions. . . . . . . . . . . . . . . . . 6
Receiving Procedures
Every Morse drum handler is inspected prior to shipping. However,
damage may be incurred during transit.
• Check for visible damage. If you choose to accept damaged
freight, always sign noting the damage on the Bill of
Lading.
• Document the damage and have the truck driver sign. We
recommend keeping a digital camera at your receiving dock
for this purpose.
• Open packages expeditiously to check the condition of the
goods. There is only a 24 hour window to notify the carrier
of any concealed damage.
• Immediately report all damage to the shipping company!
Then you may contact Morse for assistance with your
freight claim.
• Morse Manufacturing will not be held responsible for any
damaged freight that is not signed for as damaged.
Limited 2 Year Warranty
Morse drum handling equipment is guaranteed against defects in
workmanship or materials for two years when used properly within
its rated capacity. Warranty does not cover wear from normal use
or damage from accident or abuse. Motors and other purchased
parts carry the warranties of their manufacturers.
For warranty claims, contact your Morse Dealer to obtain a
return authorization number, and for return freight advice. Return
freight must be prepaid.
In all instances, liability is limited to the purchase price paid or to
repairing or replacing the product. Customer assumes liability for
any modifications, unauthorized repairs or parts substitution.
morsedrum.com
Copyright 2022 - Morse Mfg. Co., Inc.
MORStak
Operator's Manual
for Morse
Page
1
MORStak
Drum Racker
1
1 - 2
Serial Number 243093 to ______
3
4 - 6
6
Safety Information
While Morse Manufacturing Co. drum handling equipment is
engineered for safety and efficiency, a high degree of responsibility
must be placed upon the machine operator to follow safe practices,
based primarily on common sense, upon which true safety
depends.
Failure to follow the safety precautions in this manual can result in
personal injury or property damage. Observe the same precautions
as with similar machinery where carelessness in operating or
maintenance is hazardous to personnel. Carefully read the safety
precautions below and throughout this manual.
Review the Material Safety Data Sheet(s) for the material(s) in
the drum(s) and take all necessary precautions. Safety shoes,
work gloves, hard hat and other personal protective devices are
recommended.
Prior to initial use, inspect all moving parts and test rotation of hand
wheel and saddle assembly. Inspect saddle assembly for proper
operation. Perform necessary load test, inspections, operator
training, etc.
service@morsedrum.com
Form OM289F (243093-______)

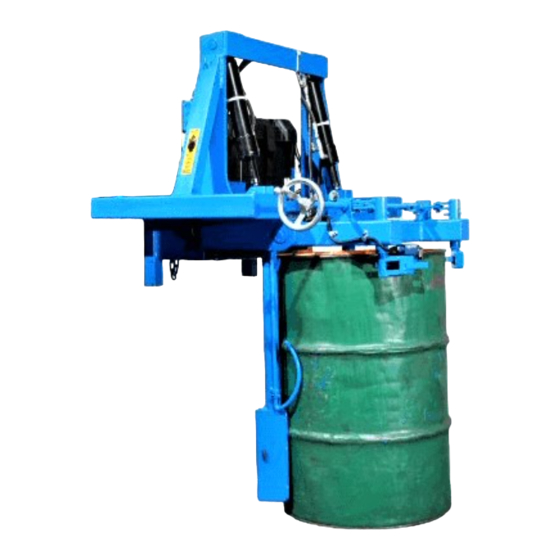

Model 289F
Forklift-Mounted Drum Racker
TM
Model 289F
Forklift-Mounted
TM
(315) 437-8475 103 Kuhn Rd.
Syracuse, NY, 13208 U.S.A.
(Updated 26 Jul., 2022)
1
