OPERATION AND INSTALLATION INSTRUCTIONS

IMPORTANT POINTS TO REMEMBER:

1. Read and save these instructions.
2. Please note that all fixed wiring appliances should be installed by a qualified electrician.
3. The supply to the remote control receiver should be connected with this wall control transmitter.
4. Disconnect from power supply at wall switch before working on remote control receiver or ceiling fan.
5. Install receiver into the ceiling fan canopy of the fan to ensure proper protection.
6. This unit is to be used for the control of ceiling fan and in an AC120V 60Hz power supply only.
7. Do not install in wee locations or immerse in water.
8. Do not pull on or cut leads shorter.
9. Do not drop or bump the unit.
10. PLEASE NOTE: The battery will weaken with age and should be replaced before leaking takes place as
this will damage the transmitter. Dispose of used battery properly, and keep the battery out of reach of
children.

ACTIVATING THE LEARNING PROCESS

1. Open plate cover and install batteries, DC1.5V/ AAA*2pcs.
2. After installation is complete, AC power is
turned on and
fan is at ON position within 30 seconds,
press and hold the SET button for 3
seconds. The receiver will make sound, Bi,
once. This will indicate the receiver has
learned the ID that was previously selected
on the transmitter.
Then the wall transmitter
can control the receiver.
3. If user cannot finish the setting within the
30 seconds time frame, the main power must be turned off and re-started again. This will reset
the unit. Repeat step 1 until the LEARNING feature is activated as indicated. (Fig. 1)
FUCNCTIONS OF REMOTE CONTROL: (Fig. 2)
□
While the fan is on, press this button to increasing fan speed
(1~6speed).
While the fan is on, press this button to decreasing fan speed
(1~6 speed).
Press this button to turn the fan on or off.
TR293A WALL TRANSMITTER
(Please keep this instruction pamphlet.)
SWITCH for

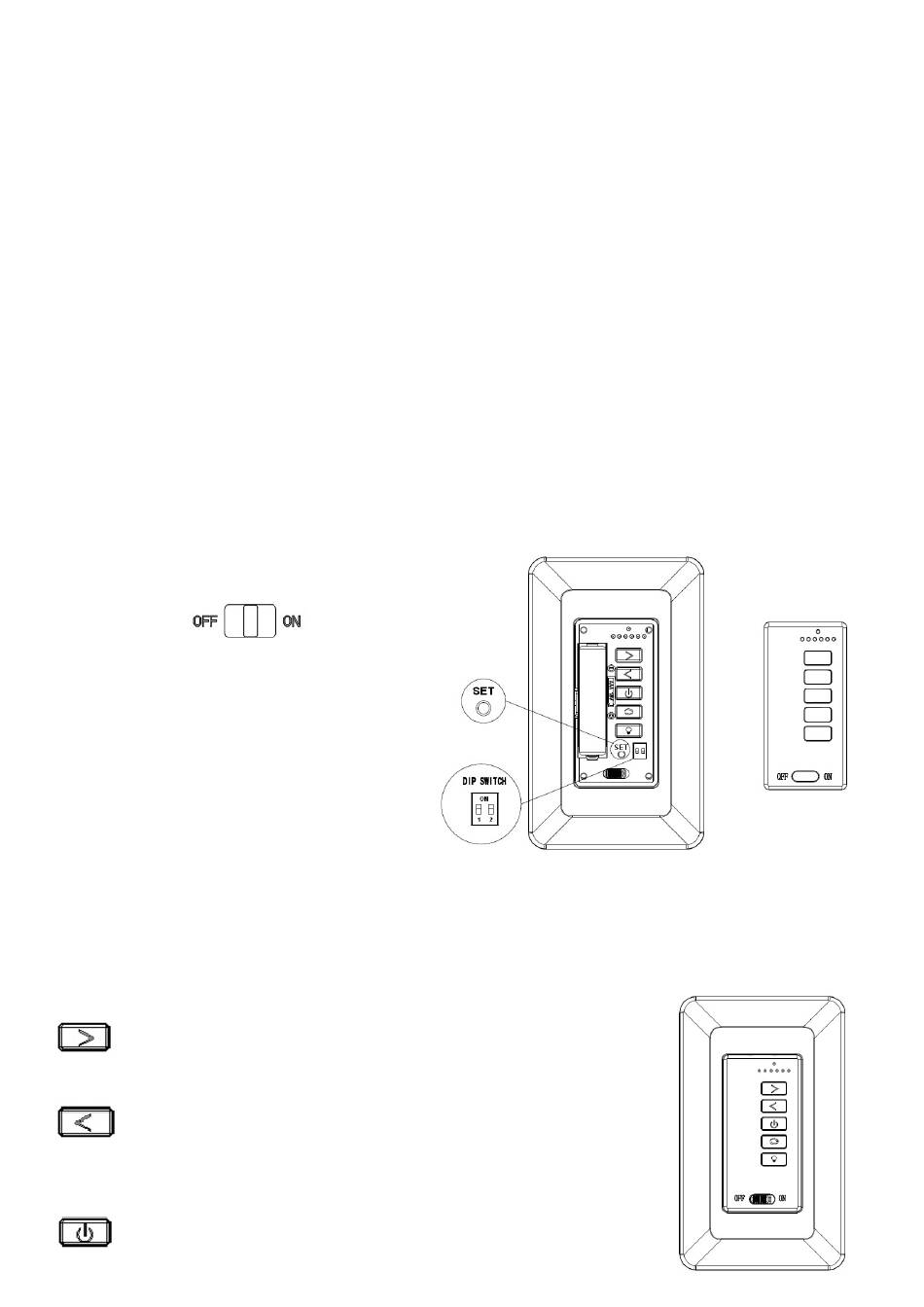

FIG. 1
