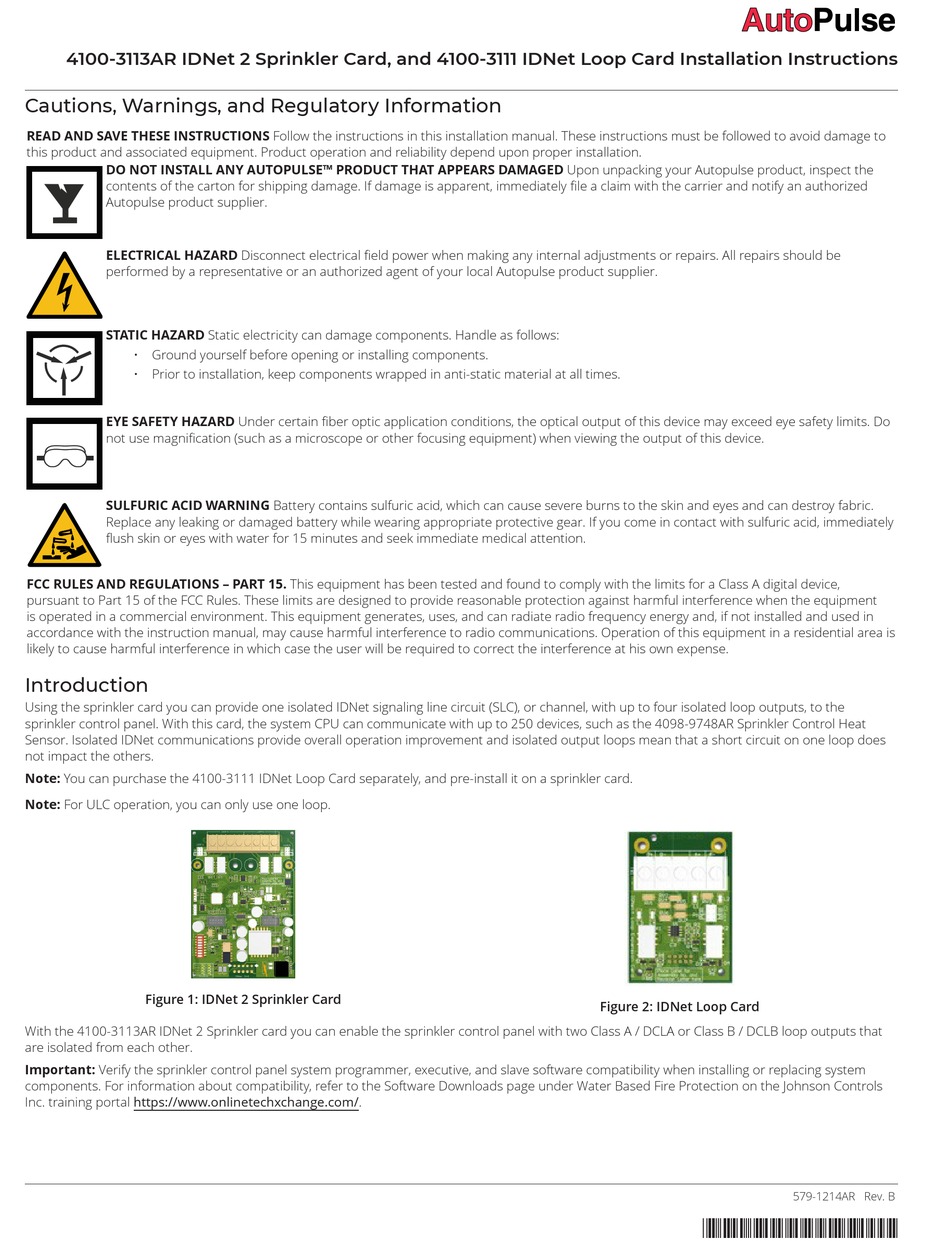

4100-3113AR IDNet 2 Sprinkler Card, and 4100-3111 IDNet Loop Card Installation Instructions
Cautions, Warnings, and Regulatory Information
READ AND SAVE THESE INSTRUCTIONS Follow the instructions in this installation manual. These instructions must be followed to avoid damage to
this product and associated equipment. Product operation and reliability depend upon proper installation.
DO NOT INSTALL ANY AUTOPULSE™ PRODUCT THAT APPEARS DAMAGED Upon unpacking your Autopulse product, inspect the
contents of the carton for shipping damage. If damage is apparent, immediately file a claim with the carrier and notify an authorized
Autopulse product supplier.
ELECTRICAL HAZARD Disconnect electrical field power when making any internal adjustments or repairs. All repairs should be
performed by a representative or an authorized agent of your local Autopulse product supplier.
STATIC HAZARD Static electricity can damage components. Handle as follows:
• Ground yourself before opening or installing components.
• Prior to installation, keep components wrapped in anti-static material at all times.
EYE SAFETY HAZARD Under certain fiber optic application conditions, the optical output of this device may exceed eye safety limits. Do
not use magnification (such as a microscope or other focusing equipment) when viewing the output of this device.
SULFURIC ACID WARNING Battery contains sulfuric acid, which can cause severe burns to the skin and eyes and can destroy fabric.
Replace any leaking or damaged battery while wearing appropriate protective gear. If you come in contact with sulfuric acid, immediately
flush skin or eyes with water for 15 minutes and seek immediate medical attention.
FCC RULES AND REGULATIONS – PART 15. This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
Introduction
Using the sprinkler card you can provide one isolated IDNet signaling line circuit (SLC), or channel, with up to four isolated loop outputs, to the
sprinkler control panel. With this card, the system CPU can communicate with up to 250 devices, such as the 4098-9748AR Sprinkler Control Heat
Sensor. Isolated IDNet communications provide overall operation improvement and isolated output loops mean that a short circuit on one loop does
not impact the others.
Note: You can purchase the 4100-3111 IDNet Loop Card separately, and pre-install it on a sprinkler card.
Note: For ULC operation, you can only use one loop.
Figure 1: IDNet 2 Sprinkler Card
With the 4100-3113AR IDNet 2 Sprinkler card you can enable the sprinkler control panel with two Class A / DCLA or Class B / DCLB loop outputs that
are isolated from each other.
Important: Verify the sprinkler control panel system programmer, executive, and slave software compatibility when installing or replacing system
components. For information about compatibility, refer to the Software Downloads page under Water Based Fire Protection on the Johnson Controls
Inc. training portal https://www.onlinetechxchange.com/.
Figure 2: IDNet Loop Card
*05791214ARB*
579-1214AR Rev. B
