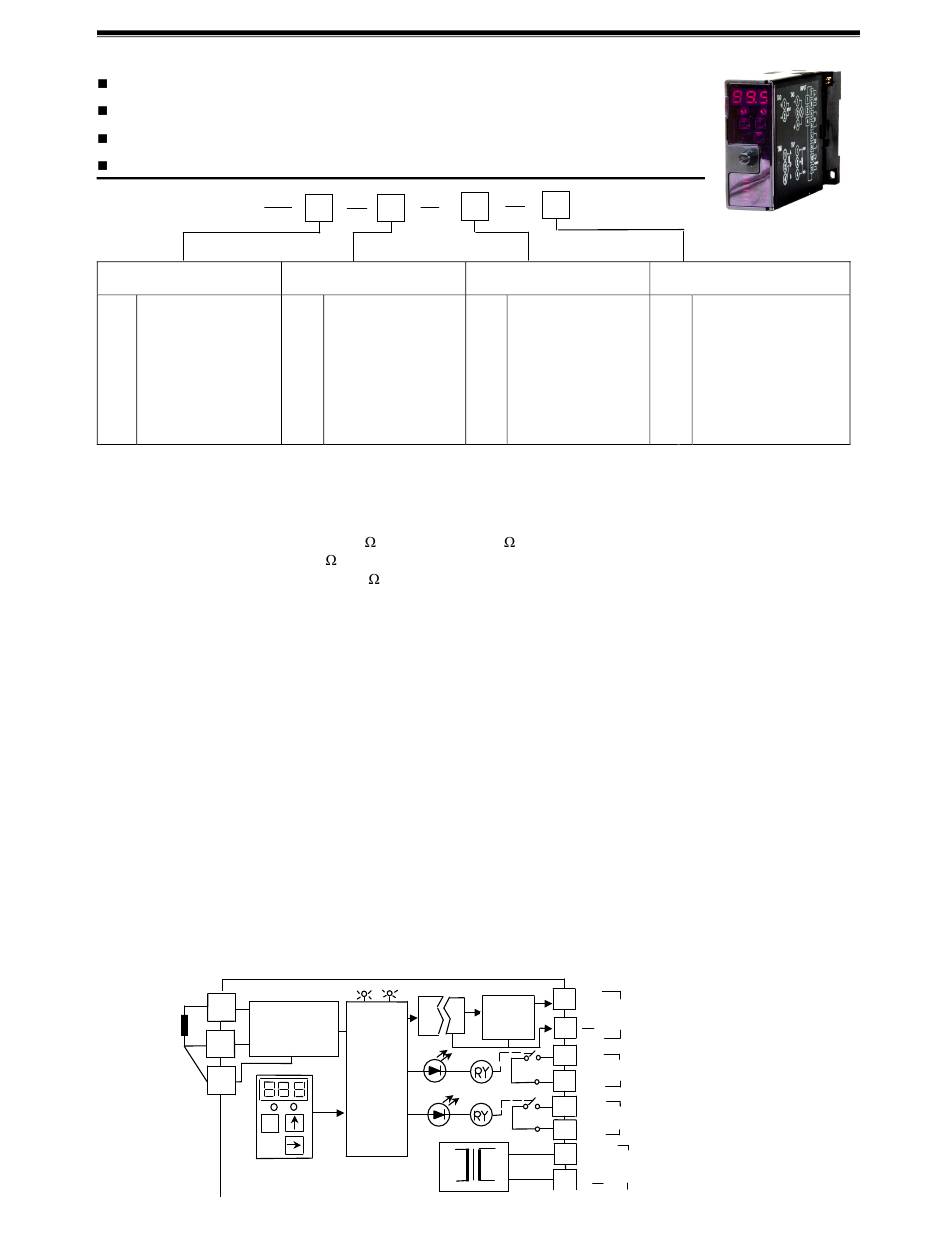

rtd TAR Series Quick Start Manual

RTD Alarm Setter Transmitter
□
FEATURES： ： ： ：
Figure Display -100～400℃/-100～700℉
Output / Set User Selectable
Ultrathin Type, 27mm Width
High Dielectric Strength ( AC 2KV/Min , between Input / Output / Power )
□
TAR
MODEL： ： ： ：
INPUT
A
PT100Ω Ω Ω Ω 3Wire
-100～ ～ ～ ～ 400℃ ℃ ℃ ℃ /
-150～ ～ ～ ～ 700
℉ ℉ ℉ ℉
Y OTHER
□
SPECIFICATIONS： ： ： ：
Accuracy：Input Accuracy ± 0.2％FS、Output Accuracy ± 0.1％RO、Display Accuracy ± 0.2％FS ±2C.
Display Range：0.28 High Lightness, Red LED 3 Digits. Under100, display decimal. Over100, display integer.
Input Impedance：Voltage Input ≧1M ，Current Input≦50
Insulation Resistance：≧100M
Output Load：DC Current Mode：＜750 in Output 20mA，DC Voltage Mode：5mA Maximum
Output Coordination：Digit Coordination
Dielectric Strength：AC 2KV / 1Min，between Input / Output / Power. DIN IEC 688.
Setting Function：Two Units Alarm Joining. Hi / Lo User Selectable
Setting Range：0 ～ 800 Counts Adjustable
Nonmoving Zone：0 ～ 800 Counts Adjustable
Time Delay：0 ～ 999 sec Adjustable
Relay Contact：SPST AC 120V 5A ,250V 2.5A,DC 24V 3A PF=1
Stability：Year ≦ 0.2％
Response Time：≦1sec
Ripple：≦0.1％rms RO
Temperature Coefficient：≦100ppm / ℃ From 0～60℃
Operation Condition：-5℃～+85℃ 20～95％ RH Non-Condensed.
Storage Condition：-10℃～+105℃ 20～95％ RH Non-Condensed.
Power Fluctuation Rate：Power Could Support AC 85～265V or DC 24V ± 10％
Aux. Power Effect：≦0.03％ / V
Housing Material：Non-Combustible PC Products , Compliance With UL 94 CLASS V-O
Mounting：DIN Rail or Wall Mounting
Dimension：27 W ×119 H × 70 L mm (Base)
□
SCHEMATIC CIRCUITRY & CONNECTION DIAGRAM
A
1
Low Drift
B 2
Amplifier&Burnout
b
4
S.D
Setting Function
A Hi-Lo Setting
B Hi-Hi Setting
C Lo-Lo Setting
N NONE
/ DC 500V
S2
S1
Isolation
Digital
Computation
Circuit
OUTPUT
A DC 0~10mA
B DC 0~20mA
C DC 4~20mA
D DC 0~5V
E DC 1~5V
F DC 0~10V
Y OTHER
：
+
7
Output
OUT
Driver 8
3
S1
6
5
S2
9
10 +
POWER
11
AUX. POWER
C DC 24V
F AC 85~265V
DC 100~300V
Y OTHER
