44" (1,12 m)

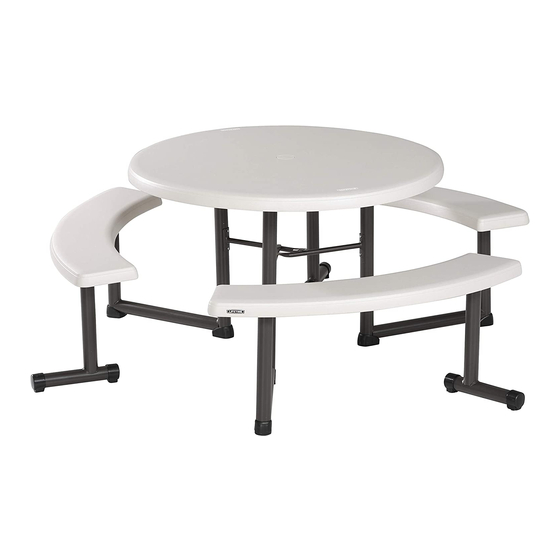

ROUND PICNIC TABLE
MODEL 60205

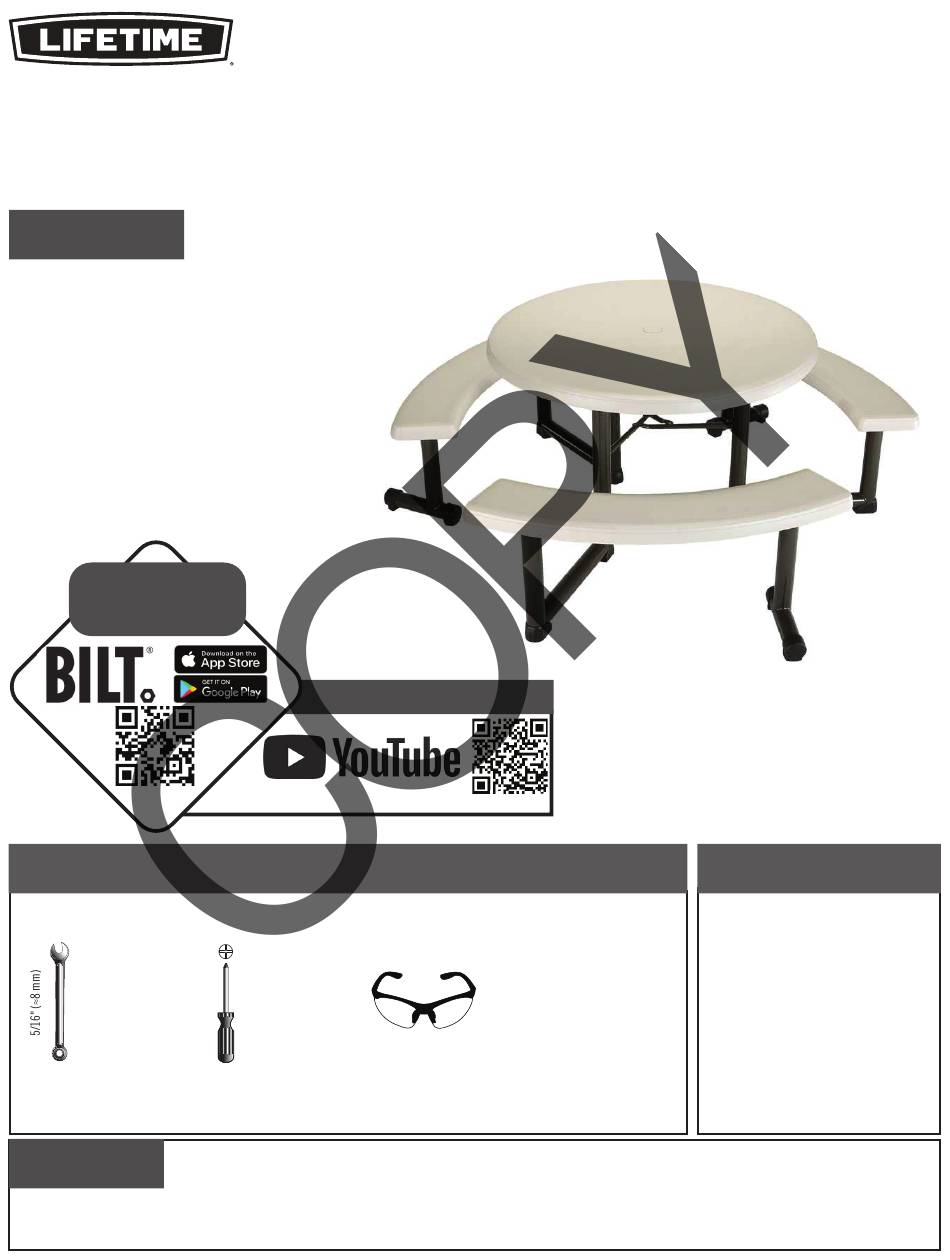

BEFORE ASSEMBLY:
• Assemble on a level surface
• At least 2 people are recommended for setup
WATCH
3D ANIMATION
OF THE FULL ASSEMBLY
SCAN THE
CODE
YouTube
TOOLS REQUIRED
QUESTIONS?
Call: 1-800-225-3865
7:00 am–5:00 pm (Monday–Friday) MST
and 9:00 am–1:00 pm Saturday MST
OR WATCH THE HOW-TO ON YOUTUBE
OR SEARCH
1180950
Scan the code, or visit go.lifetime.com/rpicnicplaylist
®
and the YouTube logo are trademarks of Google, LLC.
CONTACT LIFETIME
Live Chat: www.lifetime.com/customerservice
(click on "LIVE CHAT" tab)
For Customer Service in Mainland Europe and the United Kingdom,
E-mail: cs@lifetimeproducts.eu
ASSEMBLY INSTRUCTIONS
Pour le français, voir la page 2. Para el español, ver la página 3.
®
CUSTOMER SERVICE:
TABLE OF CONTENTS
Icon Legend................................4
Warnings & Notices.....................5
Parts Identifi er............................6
Table Top Assembly.....................7
Table Leg Assembly...................16
Bench Assembly.......................25
Additional Warnings..................32
Cleaning & Care........................35
Registration..........................36
Warranty...............................37
MODEL# AND PRODUCT ID
(both are needed when contacting us)
Model Number: 60205
Product ID:
