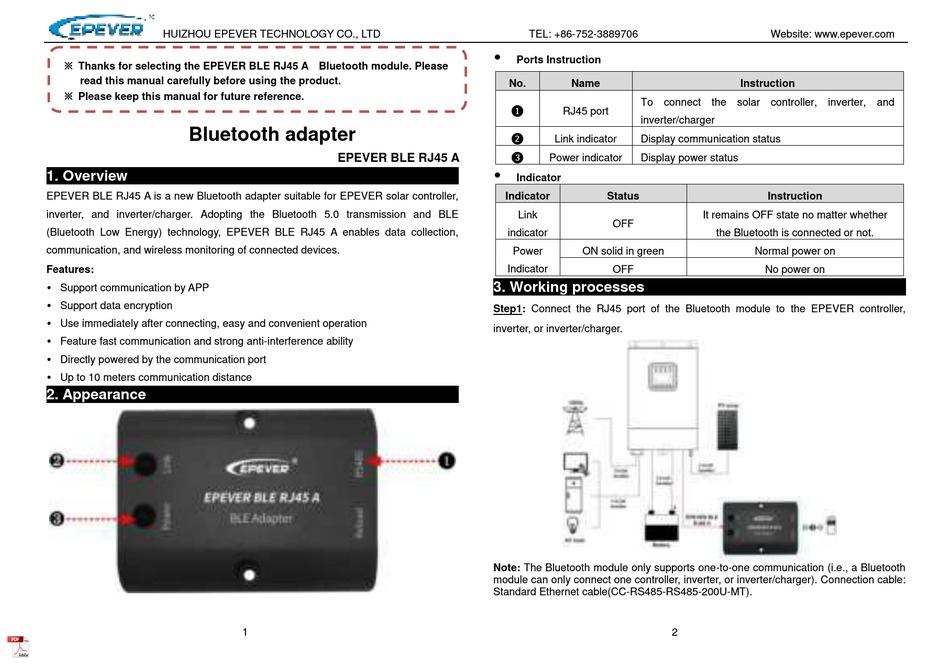

Epever BLE RJ45 A Instruction Manual

HUIZHOU EPEVER TECHNOLOGY CO., LTD
※ Thanks for selecting the EPEVER BLE RJ45 A Bluetooth module. Please
read this manual carefully before using the product.
※ Please keep this manual for future reference.
Bluetooth adapter
1. Overview
EPEVER BLE RJ45 A is a new Bluetooth adapter suitable for EPEVER solar controller,
inverter, and inverter/charger. Adopting the Bluetooth 5.0 transmission and BLE
(Bluetooth Low Energy) technology, EPEVER BLE RJ45 A enables data collection,
communication, and wireless monitoring of connected devices.
Features:
 Support communication by APP
 Support data encryption
 Use immediately after connecting, easy and convenient operation
 Feature fast communication and strong anti-interference ability
 Directly powered by the communication port
 Up to 10 meters communication distance
2. Appearance
EPEVER BLE RJ45 A
1
TEL: +86-752-3889706

Ports Instruction
No. Name
❶
To connect the solar controller, inverter, and
RJ45 port
❷
inverter/charger
❸
Link indicator Display communication status
Power indicator Display power status

Indicator
Indicator Status
Link
OFF
indicator
Power ON solid in green
Indicator OFF
3. Working processes
Step1: Connect the RJ45 port of the Bluetooth module to the EPEVER controller,
inverter, or inverter/charger.
Note: The Bluetooth module only supports one-to-one communication (i.e., a Bluetooth
module can only connect one controller, inverter, or inverter/charger). Connection cable:
Standard Ethernet cable(CC-RS485-RS485-200U-MT).
2
Website: www.epever.com
Instruction
Instruction
It remains OFF state no matter whether
the Bluetooth is connected or not.
Normal power on
No power on
