Summary of Contents for MFG EXMICRO2i

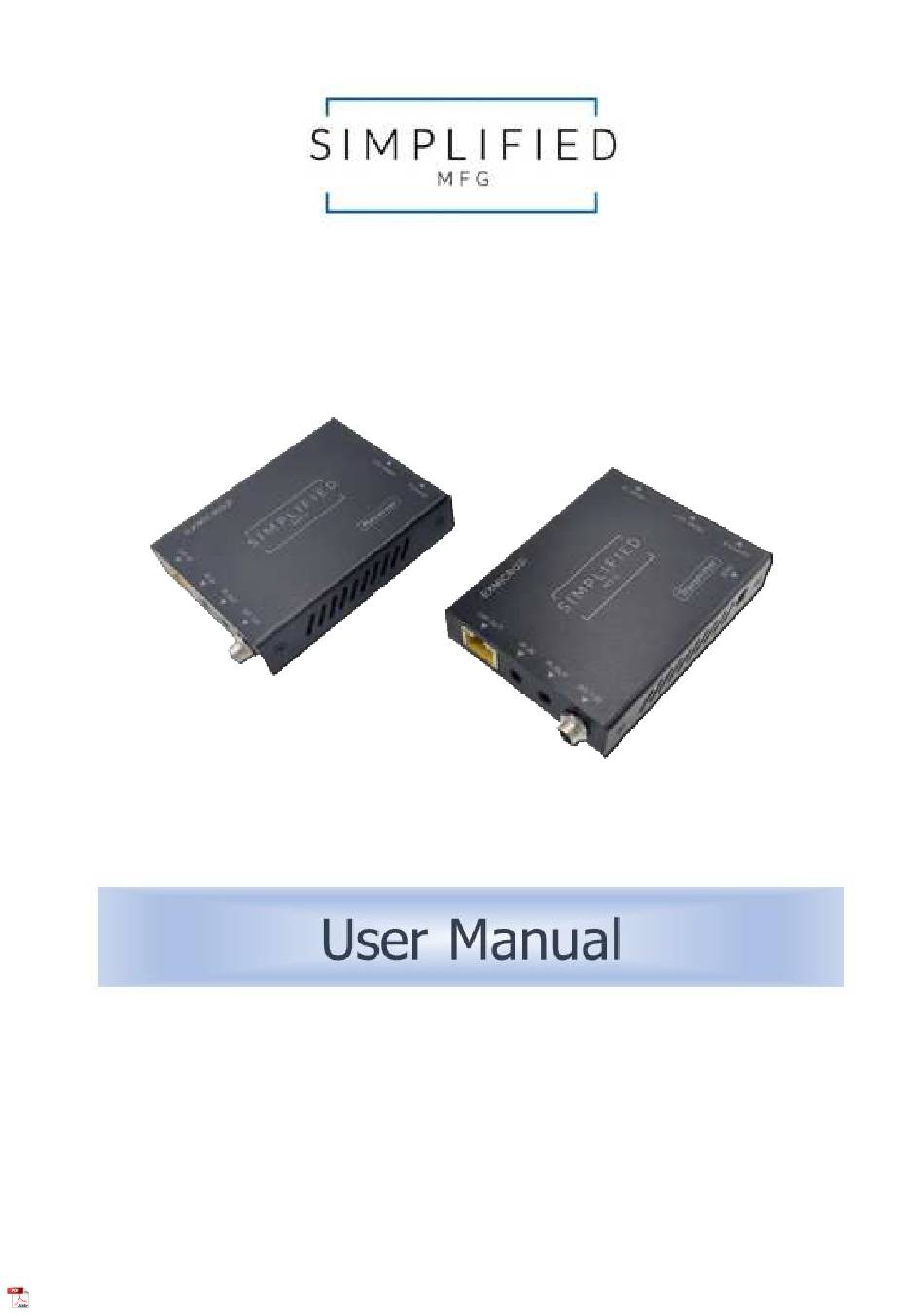

- Page 1 EXMICRO2i VER 1.1...
-
Page 2: Table Of Contents
Thank you for purchasing this product The Simplified MFG EXMICRO2i is designed to provide years of reliable service. At Simplified MFG, we want the experience with this device to be the best possible and are committed to helping achieve that experience. -
Page 3: Features
2. Features • HDMI 2.0b, HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant • Supports input and output video resolution up to 4k2k@60Hz 4:4:4 up to 18Gbps • Supports HDR/HDR+ • Distance up to 164ft/50m @ 4k or 1080p •... -
Page 4: Specifications
4. Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 / HDCP 1.4 Video Bandwidth 18Gbps HDR Formats HDR/HDR10+ Video Resolution Up to 4K60Hz 4:4:4 Color Space RGB / YCbCr 4:4:4, YCbCr 4:2:2/4:2:0, YUV 4:4:4 Color Depth 8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr 4:2:2/4:2:0) 8-bit (4K60Hz 4:4:4) HDMI Audio Formats LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby... -
Page 5: Operation Controls And Functions
5. Operation Controls and Functions 5.1 Transmitter Panel ❻ ❶ ❷ ❹ ❸ ❺ ❼ ❽ ❾ Name Function description Number HDMI Out HDMI loop output port, connect to HDMI display device such as TV or Projector with an HDMI cable. HDMI In HDMI input port, connect to HDMI source device such as Media server or other 4K source... -
Page 6: Receiver Panel
DC 12V Plug DC 12V/1A power supply into the unit and connect the adapter to an AC outlet. (Note: The EXMICRO2i can be powered from either the RX or the TX by 12V/1A power adapter, only one supply is needed) -
Page 7: Application Example
IR Use Example: HDMI Source HDMI Cat6/6A/7/8 HDMI 6. Application Example... -
Page 8: Warranty Information
Or b) Replace the product with new or refurbished product. All Simplified MFG products are covered by a 3-year PARTS and LABOR warranty. During this period there will be no charge for unit repair, replacement of unit components or replacement of the product if deemed necessary. - Page 9 TX and the RX allowing IR to be sent from source end to display and/or from display end to source end Simplified MFG • 550 W Baseline Road Ste 102-121 • Mesa, AZ 85210 • www.simplifiedmfg.com • 833-HDMI-411 (436-4411)
- Page 10 2. El cable de categoría debe terminarse en el protocolo 568b que se muestra arriba 2. Le câble de catégorie doit être terminé dans le protocole 568b indiqué ci-dessus Simplified MFG ● 550 W Baseline Rd. Ste #102-121 ● Mesa, AZ 85210 ● ● 844-821-5455...
- Page 11 Known working terminated Category cable • means no HDCP, off means no signal at HDMI port(s) • SP12S splitter for clocking issues, etc. Simplified MFG • 550 W Baseline Road Ste 102-121 • Mesa, AZ 85210 • www.simplifiedmfg.com • 833-HDMI-411 (436-4411)
- Page 12 EXMICRO2i HDMI 2.0b (18Gbps) 50m Extender over Category cable Specifications: Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 and HDCP 1.4 Video Bandwidth 18 Gbps up to 4K2K@50/60Hz YUV4:4:4), 4K2K@30Hz, 1080P@ Video Resolutions 120Hz, and 1080P 3D@60Hz Color Space...
- Page 13 Troubleshooting an Extender At TX end Is everything connected (Cat, HDMI, Power etc)? I the HDMI cable in the HDMI input of the TX? What are the lights where the Cat cable plugs into doing? Is the Green Solid? Yes, good! Flashing or off the category cable is poor Is the Amber Solid? Yes good! Flashing means no HDCP, off means no signal at HDMI port(s) At RX end...
