KANE-TCAM

Warmtebeeldcamera

handleiding

Table of Contents

Summary of Contents for Kane TCAM

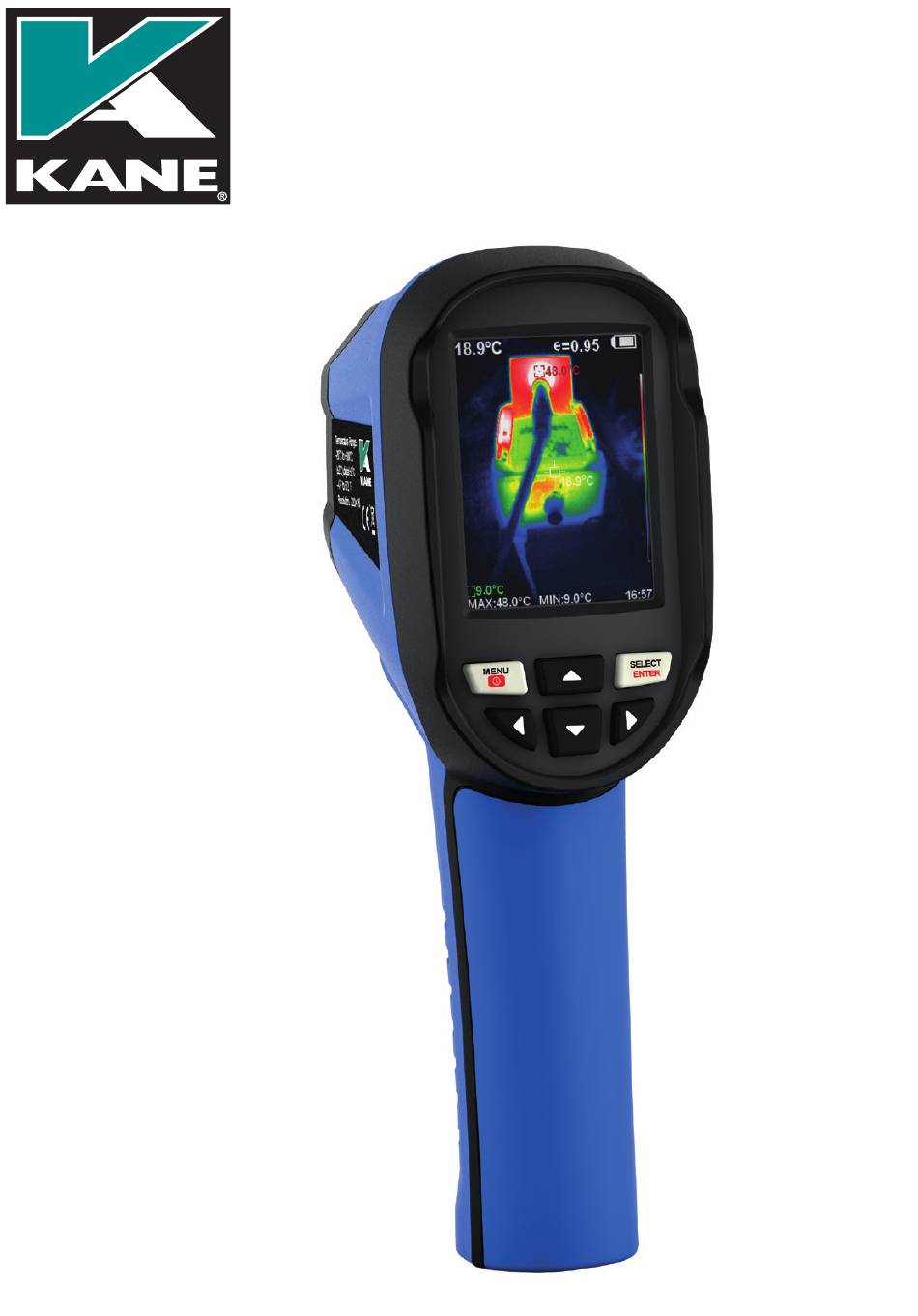

Page 1 KANE-TCAM Warmtebeeldcamera handleiding...
Page 2: Table Of Contents
INHOUD VOORWOORD ALGEMENE VEILIGHEID OVERZICHT ONDERHOUD REINIGING ONDERHOUD LENS BATTERIJEN SPECIFICATIES KENMERKEN EN TOETSENBORD LAYOUT SCHERM TOETSENBORD KNOPPEN WERKING MENU BEELD SUB MENU AFBEELDING OVERLAPPING AFBEELDING MENU BEKIJK AFBEELDINGEN AFBEELDINGEN VERWIJDEREN KLEURENPALLET BESCHRIJVING...
Page 3 TOEPASSING VAN KLEURENPALLET EMISSIVITEIT SUB-MENU EMISSIVITEITSBESCHRIJVING EMISSIVITEITSINSTELLING EMISSIVITEITSWAARDE MATERIALEN SUBMENU INSTELLINGEN AUTOMATISCH UITSCHAKELEN INTENSITEITSINSTELLINGEN TAAL INSTELLEN EENHEID INSTELLEN TIJDFORMAAT INSTELLEN TIJD DATUM INSTELLEN HOTSPOT IN/UIT SCHAKELEN PROBLEEMOPLOSSEN...
Page 4: Voorwoord
Bedankt voor het aanschaffen van ons instrument. Gebruik het volgens deze instructies en onderhoud het op de juiste manier voor optimale prestaties. BELANGRIJK: LEES DEZE INSTRUCTIES AANDACHTIG DOOR. LET OP DE VEILIGE BEDIENINGSVEREISTEN, WAARSCHUWINGEN EN VOORZORGSMAATREGELEN. GEBRUIK HET PRODUCT CORRECT EN MET ZORG VOOR HET DOEL WAARVOOR HET BEDOELD IS.
Page 5 • • Bescherm de warmtebeeldcamera tegen thermische schokken - veroorzaakt door grote en / of schommelingen in temperatuur en hoge temperaturen. • Monteer of demonteer de warmtebeeldcamera NIET. • Gebruik de warmtebeeldcamera NIET als deze beschadigd is. • Laat de warmtebeeldcamera NIET nat worden en gebruik hem NIET in vochtige of natte omstandigheden of gebieden met condensatie.
Page 6: Overzicht
De KANE-TCAM maakt gebruik van een gegevensopslagsysteem waarmee de gebruiker afbeeldingen op het apparaat kan opslaan. Deze kunnen via USB worden geëxtraheerd om rapporten te genereren.
Page 7: Onderhoud
ONDERHOUD REINIGING Gebruik een vochtige doek en lichte zeep om de behuizing van het apparaat te reinigen. Gebruik geen schuurmiddel, isopropanol of oplosmiddel om schoon te maken. De lens en het scherm moeten worden gereinigd met reinigingsmiddelen voor professionele optische brillen.
Page 8: Batterijen
BATTERIJEN OPLADEN VAN BATTERIJEN • • Gebruik een micro-USB-kabel om op te laden. • Het product heeft ingebouwde oplaadbare 18650 lithium- ionbatterijen. • Als het batterijniveau laag is, wordt de rechterbovenhoek van het ”. scherm weergegeven“ • • Zorg ervoor dat het product is uitgeschakeld voordat u het oplaadt.
Page 9: Specificaties
SPECIFICATIES Model KANE-TCAM Display screen 2.8-inch full-view TFT display Temperature -20℃ to 300℃ (-4°F to 572°F) measurement range Measurement accuracy ±2℃/±2% (whichever is greater) Infrared image resolution 220×160 Visible image resolution 35200 pixel LCD resolution 320×240 Field angle 35°×26° Focal distance (shortest) 0.15m...
Page 10 Model KANE-TCAM Rainbow, iron oxide red, cold col- Colour palette our, black & white, white & black Storage capacity Built-in memory 3GB File format Micro USB 2.0 Built-in chargeable 18650 battery Power supply Detachable Working time 2-3 hours Unit, language, date, time,...
Page 11 INSTRUMENT FEATURES AND KEYPAD INSTRUMENT LAYOUT Colour display screen On/Off switch & Select & enter Keypad Menu Handle Micro USB Infrared imaging sensor Visible light camera LED lighting lamp Image capture trigger Battery...
Page 12 DISPLAY Current emissivity Battery Central point power temperature Colour code Highest Central point temperature temperature cursor cursor Lowest temperature cursor Time Maximum value & minimum value of field temperature COLOUR CODE Marks the colour corresponding to the relative temperature from low to high.
Page 13 HIGHEST TEMPERATURE CURSOR Indicates the highest temperature position in the screen area. The temperature value is also displayed in the bottom left corner of the screen. LOWEST TEMPERATURE CURSOR Indicates the lowest temperature position in the screen area. The temperature value is also displayed in the bottom central position of the screen.
Page 14: Werking
OPERATION POWER ON/OFF Press & hold the key for 3 seconds to turn the Thermal Imaging Camera on or off. LCD SCREEN DISPLAY After turning on, the screen shows the thermal imaging status. Note: Time adjustment may be required when you move the camera between environments with varying ambient temperatures.
Page 15: Menu
IMAGE OUTPUT Saved images can be downloaded by connecting a computer through a Micro USB lead. *Supported operating systems: all USB 2.0 compliant OS. MENU Press the “MENU/ ” key to access the menu bar. IMAGE OVERLAPPING SUB-MENU IMAGE OVERLAPPING Image overlapping makes it easier for users to understand the infrared images by using aligned visible images &...
Page 16: Beeld Sub Menu
IMAGE SUB-MENU VIEW IMAGE Press the “MENU/ ” key to enter the main menu, & select “ ” image. 171229-105030 171229-105031 171229-105032 171229-105033 Press the “ ” key to enter image list. Then press the “ ” or “ ” key to navigate to the image you want to select. To view the image press the “SELECT/ENTER”...
Page 17 COLOUR PALETTE SUB-MENU COLOUR PALETTE DESCRIPTION The palette can be used to change the pseudo-colour display of the infrared image on the display. Some tune swatches are better suited for specific applications & can be set up as needed. The palette is divided into five colour sections: rainbow, iron red, cool, white hot &...
Page 18 APPLICATION OF COLOUR PALETTE Color palette Spectra Iron Cool White Black Select “ ” (colour palette) option & press the “ ” key to enter the colour palette list. Press the “ ” & “ ” keys to navigate once in the colour pallete menu.
Page 19 The surface emissivity will impact the surface temperature measured by the product. Understanding the surface emissivity will enable you to obtain correct the temperature measurement. EMISSIVITY SETTING The product has four types of surface measurement modes: • Coarse surface (0.95) •...
Page 20 Press the “MENU/ ” key to enter the main menu & select “ ”(emissivity) option then press the “ ” key to enter the emissivity list. Press the “ ” & “ ” keys to navigate the emissivity. Then press the “SELECT/ENTER”...
Page 21 Snow 0.83 Plastic 0.85~0.95 Glass 0.90~0.95 Timber 0.90 Ceramics 0.90~0.94 Paper 0.70~0.94 0.94 Chromium 0.81 Marble hemitrioxide Gypsum 0.80~0.90 Copper oxide 0.78 Mortar 0.89~0.91 Ferric oxide 0.78~0.82 Brick 0.93~0.96 Textile 0.90 SETTINGS SUB-MENU Press the “MENU/ ” key to select the “ ”(setting) option in the main menu.
Page 22 AUTO SHUTDOWN SETTING After selecting “ ” automatic shutdown, press the “ ” key to enter the auto power shutdown setting. Can be set how long you want it to be before the Thermal Imaging Camera automatically shuts down. INTENSITY SETTINGS After selecting “...
Page 23 TIME AND DATE SETTING In the Set Time menu “ ” you can set the time and date. Set time 2016 Year Month Hour Minute Second Press the “ ” / “ ” key to navigate between the year/month/day/ hour/minute. Press the “SELECT/ENTER”...
Page 24 ENABLE/DISABLE HOTSPOT CURSOR In the cold hotspot menu “ ” you can toggle the hotspot on or off. Spot Press the “ ” / “ ” keys to either enable or disable the option. Then press the “ SELECT/ENTER ” key to determine selection. After setting, press the “...
Page 25 TROUBLESHOOTING If you encounter any problems when using the thermal imaging camera please use the following table for repair. If the problems are not solved, please cut off the power supply & contact with the manufacturer. Failure type Failure cause Solution The battery is not Install the battery...
Page 26 This declaration of conformity is issued under the sole responsibility of the manufacturer:- Kane International Ltd. Kane House, 11 Bessemer Road, Welwyn Garden City, Hertfordshire. AL7 1GF, UK. Tel: +44 1707 375550 Web: www.kane.co.uk The KANE T-CAM is in conformity with the relevant Union harmonization legislation below: DIRECTIVE TITLE 201430EU...
Page 27 Email: nservice@kane.co.uk Email: sservice@kane.co.uk Follow us on... KANE and the KANE logo (registered in the UK and elsewhere) are trademarks of Kane Group Limited, used under licence. All other marks are trademarks of their respective holders. © 2020 Kane International Limited...
