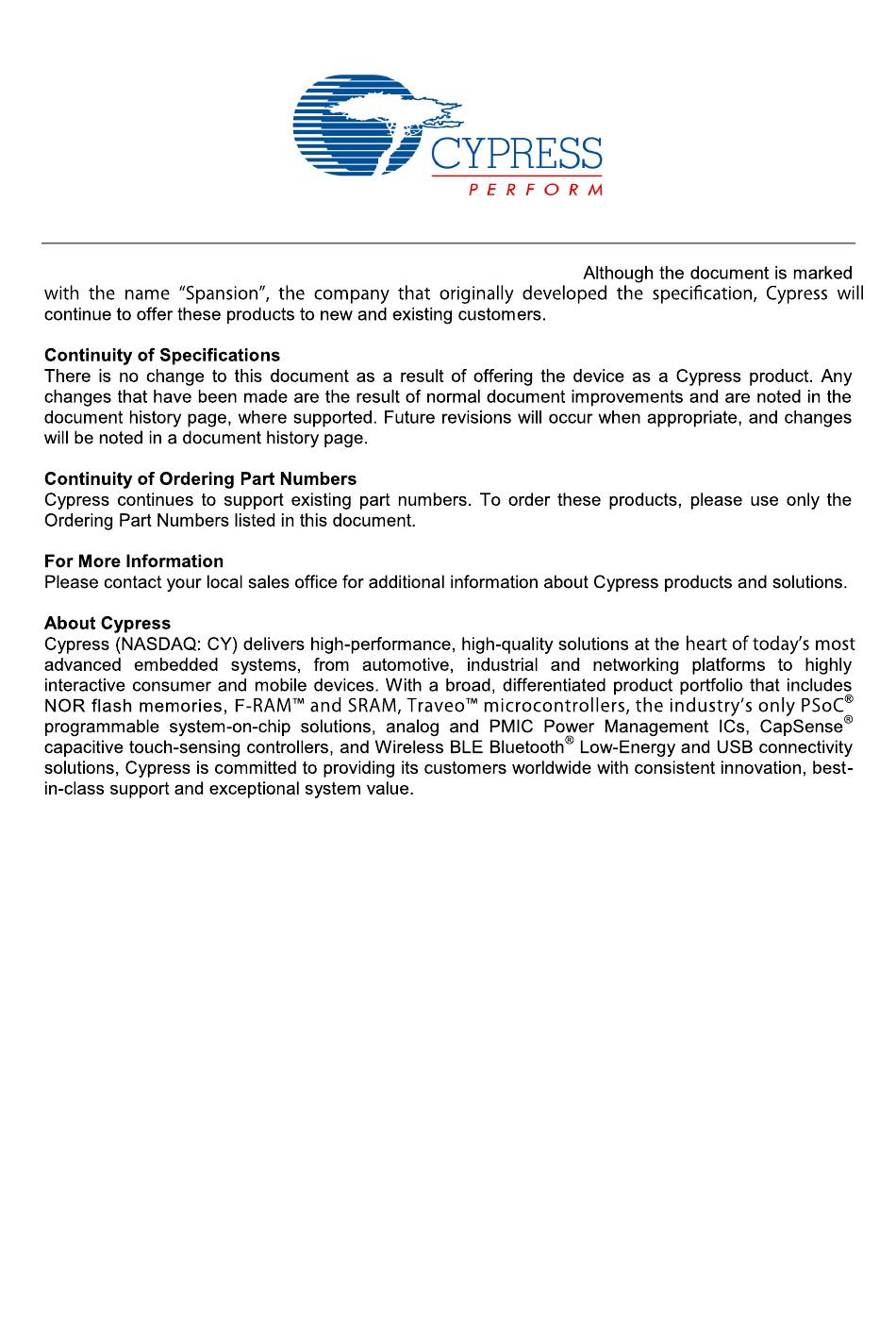

The following document contains information on Cypress products.
Page 2
S6SAL211A31SA2001 S6SAL211A31SA3001 Intelligent LED Lighting Starter Kit for DALI System 4ch 72W LED Driver Board and Communication Board Operation Manual Publication Number S6SAL211A31SA3001_SS405-00003 Revision 1.0 Issue Date March 31, 2015...
Page 3
O P E R A T I O N M A N U A L Preface This manual explains how to use the evaluation board. Be sure to read this manual before using the product. For this product, please consult with sales representatives or support representatives. Handling and Use Handling and use of this product and notes regarding its safe use are described in the manuals.
Page 4
O P E R A T I O N M A N U A L Caution of the Products Described in this Document The following precautions apply to the product described in this manual. Indicates a potentially hazardous situation which could result in death or serious injury and/or a WARNING fault in the user’s system if the product is not used correctly.
O P E R A T I O N M A N U A L Table of Contents Description ............................. 7 S6SAL211A31-DALI-SA2 Board Specification ................8 PIN Descriptions ..........................8 Input/Output Connecter Descriptions .................. 8 Switch Descriptions ......................8 Setup and Verification ........................9 Contents in a Package ......................
Page 6
Table 3-3 S6SAL211A31-DALI-SA2 Switch Descriptions ................8 Table 3-4 S6SATU03 Switch Descriptions ....................8 Table 4-1 S6SAL211A31SA3001 Contents List ..................9 Table 4-2 S6SAL211A31SA2001 Contents List ..................9 Table 7-1 S6SAL211A31-DALI-SA2 Components List ................30 Table 7-2 S6SATU03 DALI Communication Components List ..............32 Table 10-1 Ordering Information .......................
Page 7
O P E R A T I O N M A N U A L S6SAL211A31SA3001_SS405-00003-1v0-E, March 31, 2015...
4ch 72W LED Driver Board and Communication Board Operation Manual Description S6SAL211A31SA2001 and S6SAL211A31SA3001 are starter kit tool for DALI communication system. A master board (S6SATU03) and a slave board (S6SAL211A31-DALI-SA2) are included in S6SAL211A31SA3001. A slave board (S6SAL211A31-DALI-SA2) is included in S6SAL211A31SA2001.
O P E R A T I O N M A N U A L S6SAL211A31-DALI-SA2 Board Specification Figure 2-1 S6SAL211A31-DALI-SA2 Board Specification Item Symbol Min. Typ. Max. Unit Input voltage Input current (VIN = 24V, ACTUAL LEVEL = 254 (max.)) Input current IINoff (VIN = 24V, LED OFF, Include LED001 indicator current (1.7 mA))
S6SAL211A31-DALI-SA2 LED control board of 4CH 72W with S6AL211A31 S6SATU03 DALI and USB communication board with FM3 USB cable USB to USB mini B cable Table 4-2 S6SAL211A31SA2001 Contents List Contents Description Quantity Notes S6SAL211A31-DALI-SA2 LED control board of 4CH 72W with S6AL211A31...
O P E R A T I O N M A N U A L Evaluation with DALI Communication for S6SAL211A31SA3001 Using Items for Evaluation with I C Control S6SAL211A31-DALI-SA2 1pic (*1) S6SATU03 1pic (*1) USB cable 1pic (*1) ...
O P E R A T I O N M A N U A L 4.2.2 Operation Check When Using S6SATU03 Do not look directly at LED. There is a possibility that your eye is hurt. WARNING 1. Connect CN_101,201,301,401 of S6SAL211A31-DALI-SA2 and LED by connection cable. *1 2.
DALI Slave. We have to select the cable in consideration of the rated current and then rated voltage *3: Beforehand, make a setup of PC and install software. *4: A board of S6SAL211A31-DALI-SA2 is possible to buy as single item. (Part Number: S6SAL211A31SA2001) Figure 4-3 Connection of 6SAL211A31-DALI-SA2 and LED S6SAL211A31-DALI-SA2 LED,Thermistor...
O P E R A T I O N M A N U A L 4.2.3 GUI Control Function When Using S6SATU03 4.2.3.1 Preparing the Control GUI Run DALI communication software (S6AL211_DALI_GUI.exe) after connecting the USB cable. Show the message box below if the connecting GUI and DALI controller is success. Otherwise, check USB cable connection or installation of the device driver.
Page 15
O P E R A T I O N M A N U A L 4.2.3.3 Checking State of the DALI Slave You can check the state of connecting DALI slaves in "Management" tab. Crick "SEARCH SHORT ADDRESS" button, then GUI will search some connected DALI slave. If you see no highlighted number, Please refer to 4.2.3.6 Control Lighting by the Short Address.
Page 16
O P E R A T I O N M A N U A L 4.2.3.4 Control Lighting by the Broadcast DALI MASTER send to all connected DALI SLAVE by the broadcast in "control" tab. (Selected "BroadCast" Radio button in "Address Select" Group) Click Some Button and you can control lighting.
Page 17
O P E R A T I O N M A N U A L 4.2.3.5 Control Lighting by the Group DALI MASTER sends to each DALI group in "control" tab. (Selected "Group" Radio button in "Address Select" Group) Click Some Button and you can control lighting. The operations of each button (ON, OFF, (STEP) UP, (STEP) DOWN, DAPC, SCENE function) are same in broadcast.
Page 18
O P E R A T I O N M A N U A L 4.2.3.6 Control Lighting by the Short Address DALI MASTER send to the particular DALI SLAVE by the short address. DALI SLAVE needs to choose short address number. Crick "Short Address Setting"...
Page 19
O P E R A T I O N M A N U A L Setting Panel Level, Fade, etc. For the LEVEL You can set each level from 1 to 254. (MAX LEVEL, MIN LEVEL, POWER ON LEVEL, SYSTEM FAILURE LEVEL).
Page 20
O P E R A T I O N M A N U A L You can select lighting level in 1 action as choosing the scene number without using UP, DOWN, DPAC and etc. Using the SCENE You can set 16 scenes lighting level by below window. Example: Setting 125 in SCENE 2 1.
Page 21
O P E R A T I O N M A N U A L For the GROUP You can set lighting group from 0 to 15. Example: Setting group to No.5. 1. Select "5" group number by drop box at left "ADD GROUP" button. 2.
O P E R A T I O N M A N U A L Layout S6SAL211A31-DALI-SA2 Component Layout Figure 5-1 S6SAL211A31-DALI-SA2 Component Layout 71.5mm S6SAL211A31-DALI-SA2 Top side (Top view) 71.5mm S6SAL211A31-DALI-SA2 Bottom side (Top view) March 31, 2015, S6SAL211A31SA3001_SS405-00003-1v0-E...
O P E R A T I O N M A N U A L S6SAL211A31-DALI-SA2 Wiring Layout Figure 5-2 S6SAL211A31-DALI-SA2 Wiring Layout (Layer 1, Layer 2) S6SAL211A31-DALI-SA2 Layer 1 (Top view) S6SAL211A31-DALI-SA2 Layer 2 (Top view) S6SAL211A31SA3001_SS405-00003-1v0-E, March 31, 2015...
O P E R A T I O N M A N U A L Figure 5-3 S6SAL211A31-DALI-SA2 Wiring Layout (Layer 3, Layer 4) S6SAL211A31-DALI-SA2 Layer 3 (Top view) S6SAL211A31-DALI-SA2 Layer 4 (Top view) March 31, 2015, S6SAL211A31SA3001_SS405-00003-1v0-E...
O P E R A T I O N M A N U A L S6SATU03 Component Layout Figure 5-4 S6SATU03 Component Layout 65mm S6SATU03 Top side (Top view) 65mm S6SATU03 Bottom side (Top view) S6SAL211A31SA3001_SS405-00003-1v0-E, March 31, 2015...
O P E R A T I O N M A N U A L 6. Circuit Schematic S6SAL211A31-DALI-SA2 Schematic Figure 6-1 S6SAL211A31-DALI-SA2 Circuit Schematic March 31, 2015, S6SAL211A31SA3001_SS405-00003-1v0-E...
O P E R A T I O N M A N U A L 7. Component List S6SAL211A31-DALI-SA2 Components List Table 7-1 S6SAL211A31-DALI-SA2 Components List Rated Rated Component Parts Number Vendor Value Remarks Voltage(V) Current(A) BD061 MB2S FAIRCHILD 500m C001 C2012X5R1V106K125AC 10 μF...
Page 32
O P E R A T I O N M A N U A L Rated Rated Component Parts Number Vendor Value Remarks Voltage(V) Current(A) LED061 OSTG1608C1A OptoSupply M001 S6AL211A SPANSION PC061 PS2561L-1-A PC062 PS2561L-1-A Q061 FMMT491A DIODES Q101 FDC658AP FAIRCHILD Q102 FDC8886 FAIRCHILD Q201 FDC658AP...
O P E R A T I O N M A N U A L Rated Rated Component Parts Number Vendor Value Remarks Voltage(V) Current(A) R420 RR0816P-752-D 7.5 kΩ SW081 SKRPACE010 ALPS ZD061 MMSZ5229B FAIRCHILD NMT: No mount. These components are compliant with RoHS, and please ask each vendor for details if necessary. S6SATU03 Components List Table 7-2 S6SATU03 DALI Communication Components List Rated...
O P E R A T I O N M A N U A L S6SAL211A31-DALI-SA2 Property Data Figure 8-1 Switching Waveform CH1 100% Dimming VIN=24V, ILEDout=1A LED:LUW W5AM (5 series × 4ch) ACTUAL LEVEL=254(Logarithm) CH1: LED current (ILEDout) CH2: LEDp voltage (VLEDout) CH4: Switching node voltage CH1 1% Dimming VIN=24V, ILEDout=10 mA...
O P E R A T I O N M A N U A L 9. Board Picture S6SAL211A31-DALI-SA2 Board Picture Figure 9-1 S6SAL211A31-DALI-SA2 Board Picture S6SAL211A31-DALI-SA2 (Top View) S6SAL211A31-DALI-SA2 (Bottom View) S6SAL211A31SA3001_SS405-00003-1v0-E, March 31, 2015...
O P E R A T I O N M A N U A L S6SATU03 Board Picture Figure 9-2 S6SATU03 Board Picture S6SATU03 (Top View) S6SATU03 (Bottom View) March 31, 2015, S6SAL211A31SA3001_SS405-00003-1v0-E...
M A N U A L 10. Ordering Information Table 10-1 Ordering Information Part Number EVB Revision Note S6SAL211A31-DALI-SA2 Rev1.0 S6SAL211A31SA3001 S6SATU03 Rev1.0 S6SAL211A31SA2001 S6SAL211A31-DALI-SA2 Rev1.0 11. Major Changes Table 11-1 Major Changes Page Section Change Results Revision 1.0 Initial release GUI Ver1.1...
