Elan LSWP Instruction Sheet

LSWP
INSTRUCTION SHEET
LSWP LOCAL SOURCE WALL PLATE KIT for S12
Introduction
Designed for use with the System12's eight Local
Source Inputs, the LSWP sends audio from any local
source (i.e. a CD player in the Master Bedroom) back
down to the S12, and IR control signals from the S12
back to the local source.
Audio and IR are transmitted over a single run of Cat-
5 cable to the Local Source RJ-45 jacks on the S12.
Balanced differential line drivers ensure noise-free
audio from sources located up to 300 feet from the
S12. An IR OUT jack on the wall plate allows you to
plug in an IR emitter (included) for control of the
source from that zone's keypad or touch panel. A
video connector is available to convieniently route
video from the local source to a local monitor.
Up to eight Local Source Wall Plates, one for each
zone, can be connected to an S12. Systems with
more than one S12 (and you can link up to four of
them!) can accommodate eight LSWPs per S12.
Please see the System12 Installation Manual for
complete instructions on S12 pre-wire, rough-in,
design and applications.

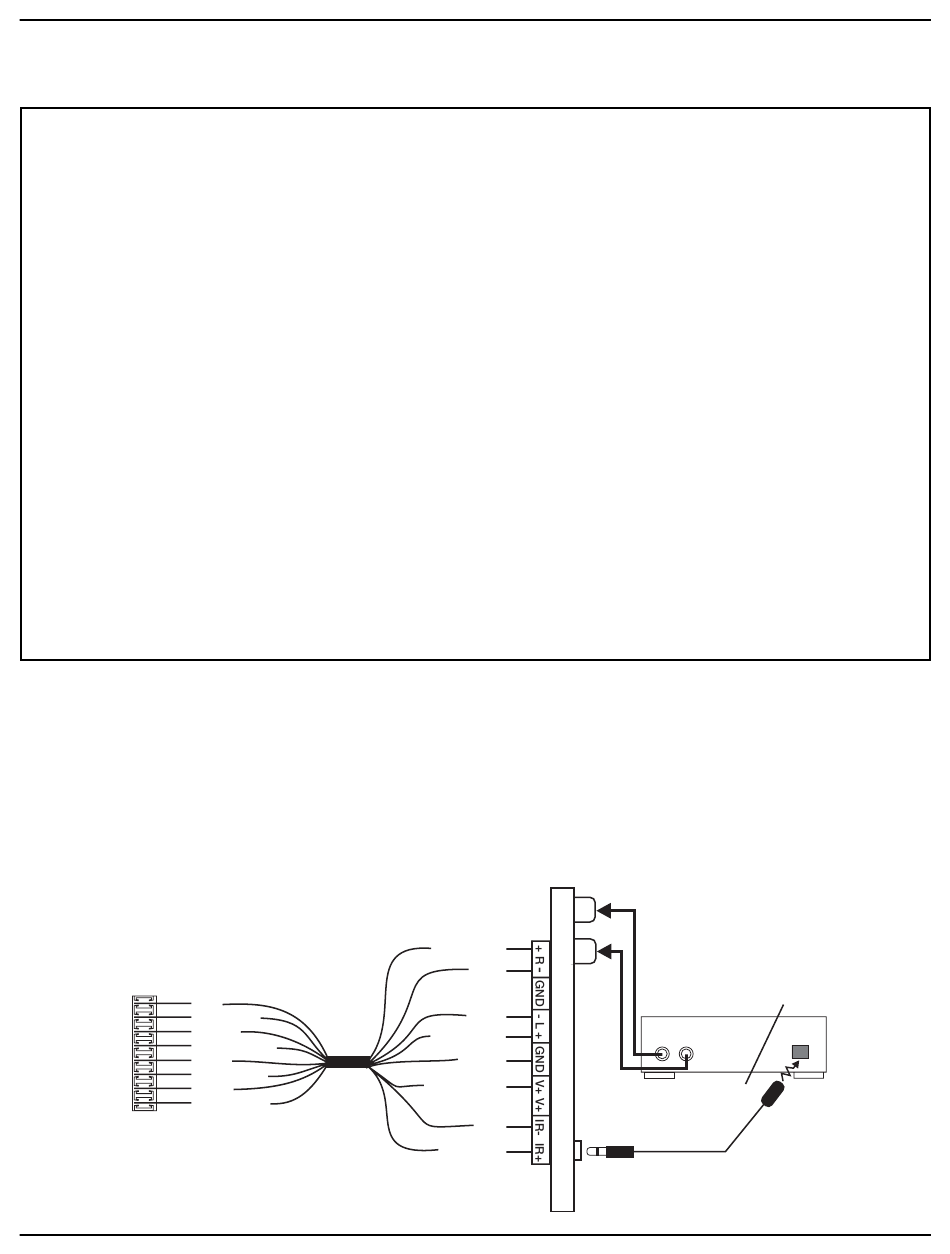

Local Source Connections w/ PS12 Precision Panel
Connect a local audio source to the LSWP Local Source Wall Plate using the
stereo interconnect cable provided. Only one local source per zone can be con-
nected. Connect Cat-5 from the LSWP to the appropriate Local Source (LS) con-
nector on the PS12 as shown below. Complete the installation by connecting the
provided IR emitter from the LSWP to the IR window of the source.
PS12 Precision Panel
Local Source (LS)
Connector
IR-
Blue
IR+
White/Blue
GND
Orange
V+
White/Orange
R-
Green
R+
White/Green
L-
Brown
L+
White/Brown
Kit includes:
(1) Local Source Wall Plate
(1) IR Emitter
(1) 1-Meter Stereo Interconnect Cable
(1) Leviton
Specifications:
Input Level: . . . . . . . . . . . . . . . . . . . . . . . 0 - 2V RMS
Gain: . .+1dB at Source plate, -1dB at S12, 0dB total
Frequency Response: . . . . .20Hz to 20kHz, +/-0.5dB
THD + Noise: . . . . . . . . . . . . . . . . . . . . . . . . .<0.01%
IR Output Level: . . . . . . . . . . . . . . . . . . . . . . . . .+12V
IR Bandwidth: . . . . . . . . . . . . . . . . . . . . . . . . 100kHz
Wire Requirements: . . . . . . . . . . . . . (Audio/IR) Cat-5
. . . . . . . . . . . . . . . . . . . . . . . . . . .(Video) RG-6 Coax
Input Power: . . . . . . . . . . . . . . . . . . . . . . . . .+12VDC
Style: . . . . . . . . . . . . . . . . . . . . . .White Decora
LSWP
Local Source
Wall Plate
White/Green
Green
Brown
White/Brown
Cat-5
Orange
White/Orange
Blue
White/Blue
1
E L A N H O M E
Frame
®
1 M Stereo
Interconnect Cable
(included w/ LSWP Kit)
Local Audio Source
Back
Audio Out
L R
IR Emitter
(included w/ LSWP)
S Y S T E M S
only
®
Front
IR
Window
