CS-IRKITCCUS
460 Walker Street
Holly Hill, FL 32117-2699
htsupport@metrahometheater.com
www.MetraHomeTheater.com
1-866-839-9187
I
386-257-1186
Melra ..... t..........-
H □ ME
THEATER GROUP

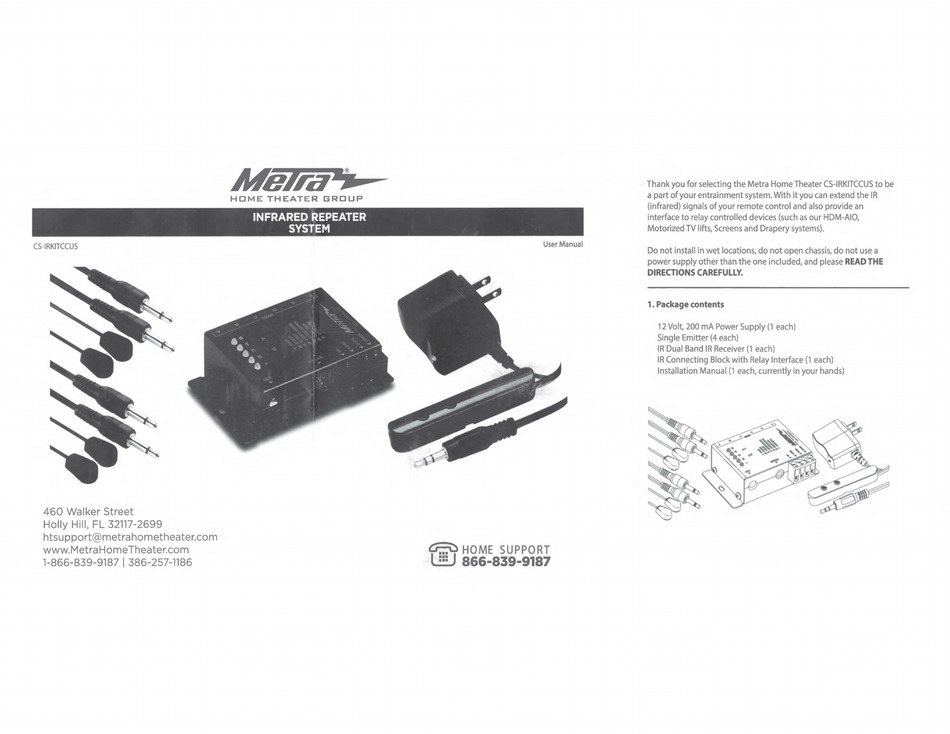

INFRARED REPEATER
SYSTEM
User Manual
~
HOME SUPPORT
t:::J
866-839-9187
Thank you for selecting the Metra Home Theater CS-IRKITCCUS to be
a part of your entrainment system. With it you can extend the IR
(infrared) signals of your remote control and also provide an
interface to relay controlled devices (such as our HDM-AIO,
Motorized TV lifts, Screens and Drapery systems).
Do not install in wet locations, do not open chassis, do not use a
power supply other than the one included, and please
READ THE
DIRECTIONS CAREFULLY.
1. Package contents
12 Volt, 200 mA Power Supply (1 each)
Single Emitter (4 each)
IR Dual Band IR Receiver (1 each)
IR Connecting Block with Relay Interface (1 each)
Installation Manual (1 each, currently in your hands)
Advertisement
Table of Contents
Summary of Contents for Metra Electronics CS-IRKITCCUS
- Page 5 SALES 866-839-9187 The new Metra Home Theater CS-IRKITCCUS is a unique product; it has all of the usual capabilities and functions that one would expect from a “US 12 V IR standard” plus a built in “contact closure” relay with “IR Code Learning” for its Open and Close states.
