Goodson CF-140 Instructions

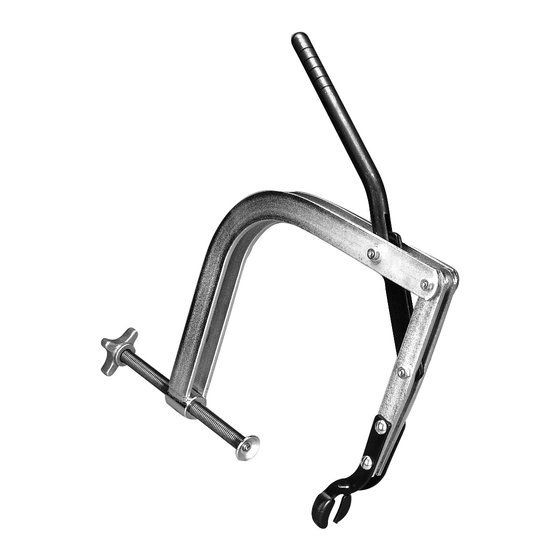

CF-140
Manual Valve
Spring Compressor
nstructions
CF-140
Replacement Jaw for CF-140 is Order No. CF-44.
Please read instructions
before using.
© Goodson Tools & Supplies
Prior to use,
remove this
bolt and nut
to position
handle as
shown
2. Adjust tool jaws to fit over retainer.
3. Compress tool with handle. Position on head and adjust
screw to put light tension on spring. Release handle.
Tighten screw 3 or 4 turns. Try compressing spring, readjust
screw to compress springs just enough to remove keepers.
Check retainer-to-seal clearance to avoid damage seals.
The tool is now adjusted for remainder of springs.
4. To re-assemble, reverse procedure. Compress spring. Place
keepers on stem and slowly release handle.
Caution:
Wear eye protection to prevent personal injury.
07/2013
Note:
Before using compressor, remove
bolt and nut, slide handle and link
assembly into position and
replace bolt and nut through
frame and pivot hole in handle
and link assembly (see photo at
left).

Operating Instructions

1. Rap all retainers sharply with a
light hammer to break keepers
loose.
