DORO SECURE 241 Quick Start Manual

Doro Secure 241
®
English
®
Doro Secure 241 is a passive infrared (PIR) motion sensor for indoor usage,
compatible with the European social alarm standard for radio transmitters.
Movements are detected by sensing the energy e.g. from a warm body, as it moves
across the motion coverage area of the sensor. When this motion is detected, the
sensor transmits a signal to the main unit.

Package contents:

• Motion sensor
• 9V Alkaline MN1604/6LR61 battery
• 2 angle plates (1 mandatory and 1 optional)
• 2 screws and wall plugs
• 12m wide angle motion coverage lens (mounted by default), 18m long range motion
coverage lens and pet adapted lens

Suitable locations

®
We recommend a Doro Secure 241 in the most used room, or if there are several
rooms that are widely used, install one sensor in each room.

Unsuitable locations

To avoid false alarms and malfunctions, do not install the sensor:
• In places where the temperature may fall below 0°C or rise above +50°C, as there
would be a risk of the sensor not operating properly.
• In locations with heat producing devices i.e. air conditioners and furnace vents,
fans, ovens or heaters etc. because the sensor reacts on temperature changes.
Kitchens, bathrooms and laundry rooms must be avoided.
• Aiming at direct or reflected (mirror) sunlight as this may distort the coverage
pattern.

Installation

Make sure that no cables, water pipes or gas pipes are located inside the
wall before drilling into it.
• Use the angle plates to fix the universal swivel mount on the wall in the desired
location, by screw. Suggested installation height is approximately 2.3m.

Setup

1.
Use a small Philips screwdriver to remove the cover.
2.
Connect the battery.
3.
Stabilization time of approximately 45 seconds.
4.
Replace the cover.
5.
Perform a "Walk test".
6.
Optional: to increase battery life set Switch 4 to OFF.

Walk test

After mounting the sensor it is important to carry out a Walk test to determine the
actual motion coverage area of the sensor. Walk test is automatically activated for
three minutes when the battery is connected.
The mounting angle can be adjusted using the optional angle plate. Determine
the best angle and adjust the sensor upwards to increase range and downwards to
decrease range.
To activate Walk test; disconnect the battery and connect it again.

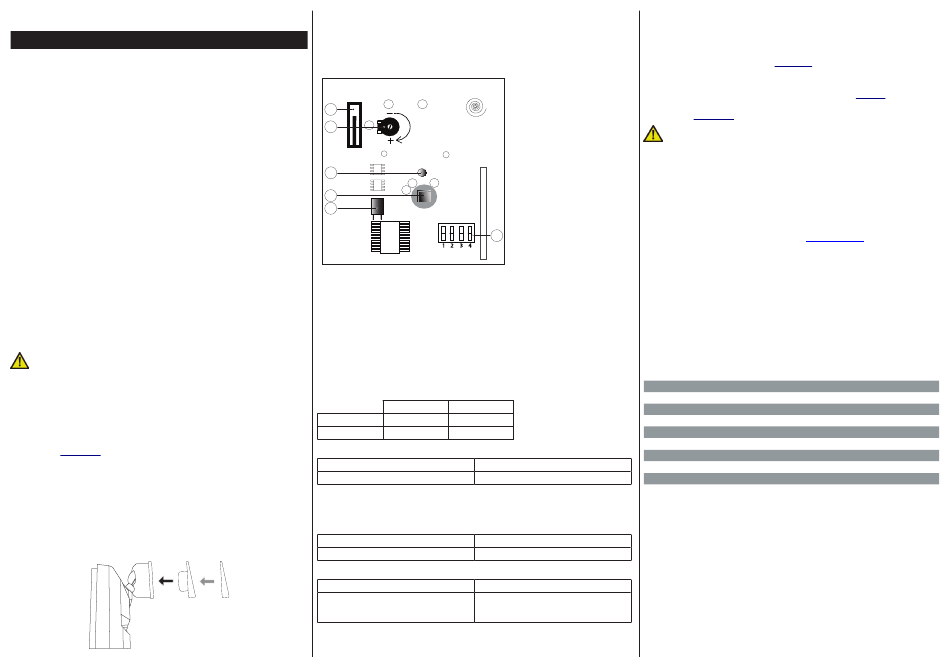

Angle plates

Pair/register with Doro main unit

Follow the manual of the Doro main unit section about pairing, and activate pairing
mode. When the Doro main unit is in pairing mode; activate pairing on Doro Secure
by tampering the motion detector. The radio range of the detector varies depending on
the environment in which it is used. Walls, floors, furniture and other obstacles may limit
coverage.
1
2
3
4
5
6
1 2 3 4
®
Doro Secure 241 is pre-programmed prior to shipping in order to facilitate installation,
these settings is usually to be preferred.
Switch 1 and switch 2=Supervision
Supervision – sensor is configured to output an I'm Alive message, over a cyclical period,
to notify that the sensor is working. Less frequent cyclical period increases battery life.
Switch 1 OFF Switch 1 ON
Switch 2 OFF 3h 6h
Switch 2 ON 12h 24h (default)
Switch 3=Tamper
Switch 3 OFF Switch 3 ON
Enable tamper switch (default) Disable tamper switch
Switch 4=LED
If the user experiences the flashing blue light from the LED (the indicator light) as
disturbing, it is possible to disable it (this only affects the LED, not the function of the
sensor itself). Disabling LED increases battery life.
Switch 4 OFF Switch 4 ON
No flashing blue light Flashing blue light (default)
Sensitivity
Jumper open Jumper closed
Single pulse=higher sensitivity (default) Double pulse=lower sensitivity
(not compatible with long range motion
coverage lens)
Note Sensitivity setting should only be changed in exceptional cases.

Clean

Use a slightly damp cloth to clean the surface of the cover. Normally only dusting is
needed. Do not use harsh or abrasive cleaners.
®
241

Replace the battery

When the battery runs low the operator will be notified. Check the functionality after
each battery change by performing a
1.
Use a small Philips screwdriver to remove the cover.
1.
Tamper switch
2.
Replace the battery and make sure that it is properly connected. Batteries must
2.
Sensitivity setting
not be disposed of with your other household waste, see "WEEE".
3.
3.
Flashing blue LED
Replace the cover.
4.
Motion detector 4.
Perform a "Walk
5.
Sensitivity jumper
Only use high quality 9V Alkaline MN1604/6LR61 batteries.
6.
Switches
1 and 2=Supervision

Warranty

3=Tamper
This product is guaranteed for a period of 12 months from the date of purchase. In the unlikely
4=LED
event of a fault occurring during this period, please contact the place of purchase. Proof of
purchase is required for any service or support needed during the guarantee period.
This guarantee will not apply to a fault caused by an accident or a similar incident or damage,
liquid ingress, negligence, abnormal usage, non-maintenance or any other circumstances on the
user's part. Batteries are consumables and are not included in any guarantee.

Declaration of Conformity

We hereby declare that Doro Secure
relevant regulations contained in the Directives 1999/5/EC (R&TTE) and 2011/65/EC (RoHS).
A copy of the Declaration of Conformity is available at www.doro.com/dofc.
WEEE
Disposal of Waste Equipment by Users in Private Households in the European Union. This symbol
on the product or on its packaging indicates that this product must not be disposed of with your
other household waste. Instead, it is your responsibility to dispose of your waste equipment by
handing it over to a designated collection point for the recycling of waste electrical and electronic
equipment. The separate collection and recycling of your waste equipment at the time of disposal
will help to conserve natural resources and ensure that it is recycled in a manner that protects
human health and the environment. For more information about where you can drop off your waste
equipment for recycling, please contact your local city office, your household waste disposal service
or the shop where you purchased the product.
Where batteries or accumulators are collected together with waste electrical and electronic
equipment on the basis of Directive 2002/96/EC, batteries or accumulators shall be removed from
the collected waste electrical and electronic equipment.

Specifications

Weight:
Dimensions:
Operational temperature:
Storage temperature:
Battery:
Battery life:
Radio frequency:
Radio range:
Motion coverage:
Please keep these instructions for future reference.
"Walk test".
test".
®
241 conforms to the essential requirements and other
145g (including battery)
120mm x 80mm x 66mm
0°C -- +50°C
-10°C -- +60°C
9V Alkaline MN1604/6LR61
Approx. 3 years
869 MHz European Social Alarm Frequency
100m in open space
12m 94° with default lens
