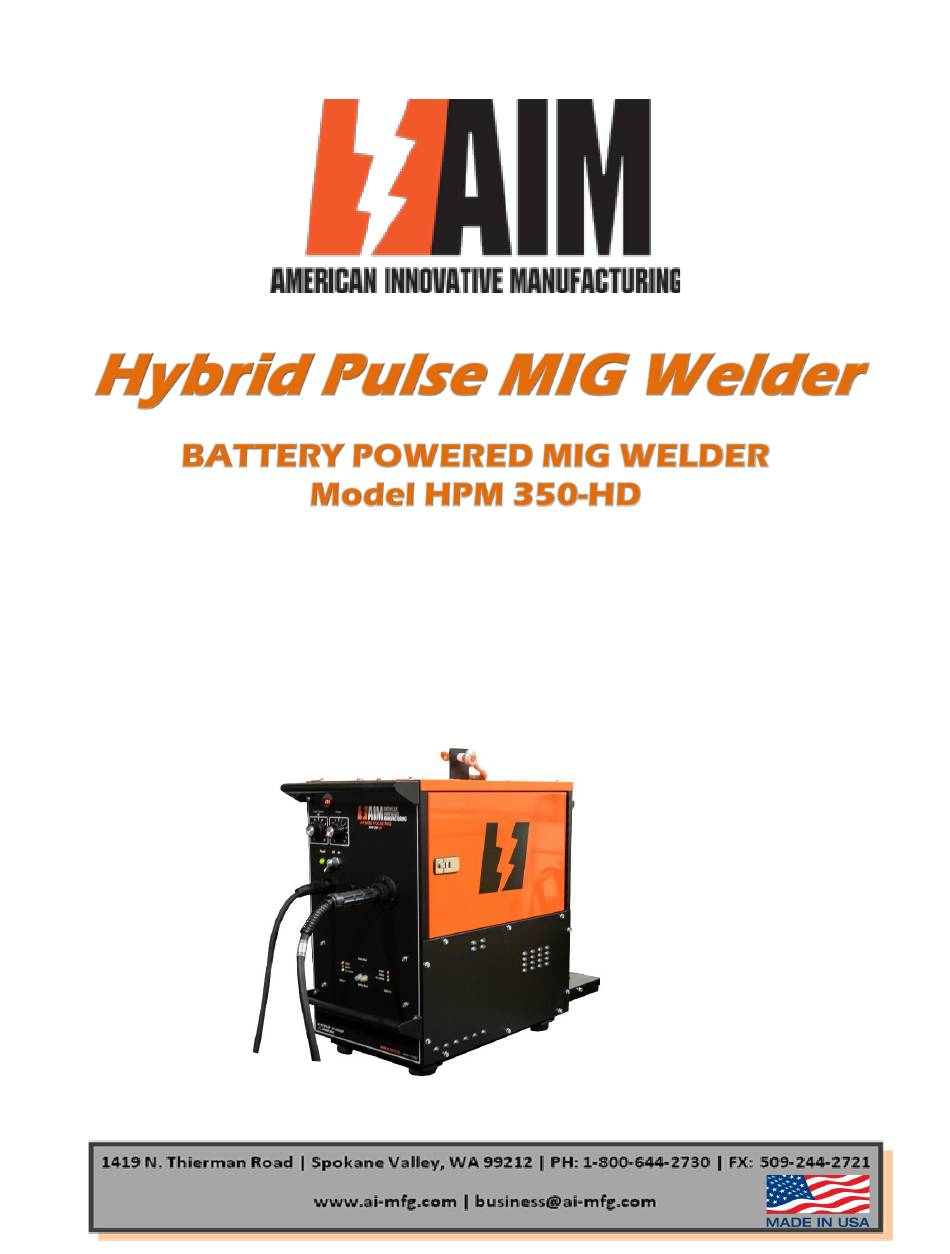

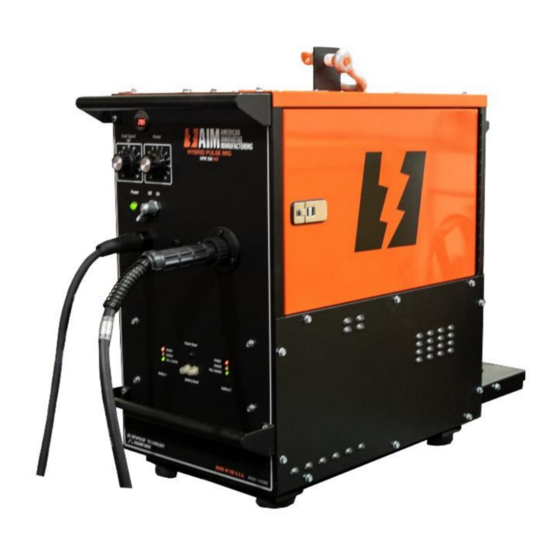

Page 1 OWNER’S MANUAL & WARRANTY INFORMATION...
Page 2 AIM Hybrid Pulse MIG Welder -HPM-350-HD THANK YOU for purchasing an A.I.M. product. This Manual has been prepared to ensure that you experience years of trouble-free use of your new welder. Please read this manual and share it with any personnel that will be involved with the use and care of this equipment.
Page 3: Table Of Contents
AIM Hybrid Pulse MIG Welder -HPM-350-HD TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS: _____________________________________________ 4 STANDARD EQUIPMENT_________________________________________________________5 FIRST TIME USE _______________________________________________________________ 6 1. Installation of Batteries a. Safety Precautions b. Battery Installation Diagram c. Connecting Battery Cables CHARGING THE UNIT __________________________________________________________ 6...
Page 4: Important Safety Instructions
AIM Hybrid Pulse MIG Welder -HPM-350-HD IMPORTANT SAFETY INSTRUCTIONS: WARNING – When operating this equipment, please follow basic precautions, including the following: • Read all instructions before using this machine and its attachments. • Use this equipment only for its intended use.
Page 5: Standard Equipment
AIM Hybrid Pulse MIG Welder -HPM-350-HD HPM-350-HD Standard Equipment and General Assembly o Welder o MIG Torch-Steel o Torch/Cable Rack o Ground Cable with Clamp Items to be provided by others (not included with the basic welder) • Compressed Gas Cylinder •...
Page 6: First Time Use
1. If batteries have not been provided from the factory, proper batteries must be installed (see battery specification). See Figure #1 for proper battery position 2. The HPM 350-HD requires AGM/Spill proof batteries. Do not use flooded wet batteries 3. Carefully connect battery terminals as shown.
Page 7 AIM Hybrid Pulse MIG Welder -HPM-350-HD Figure #2- Battery Locations and Orientation Figure #3 Battery Charger Face AIM MIG OWNER’S MANUAL Rev. 2019:...
Page 8: Indicator Lights
AIM Hybrid Pulse MIG Welder -HPM-350-HD INDICATOR LIGHTS There are two sets of three indicator lights displayed on the front panel of the machine; a set for each of the two batteries. The RED light indicates there is power to the charger.
Page 9: Preparation
AIM Hybrid Pulse MIG Welder -HPM-350-HD WELD PREPARATION Carefully examine the surface, looking for defects; cracks, contamination and rust. Properly prepare the work piece for welding. When the workpieces are treated with transport coatings applied, initially clean all sides. The work pieces need to be free of all coatings as required for proper weld technique Special Note: Preparation is very important.
Page 10 AIM Hybrid Pulse MIG Welder -HPM-350-HD AIM MIG OWNER’S MANUAL Rev. 2019:...
Page 11: Welder Settings
AIM Hybrid Pulse MIG Welder -HPM-350-HD WELDER SETTING GUIDLINES Note: The tables below our general guidelines for setting the welder prior to welding; Actual setting may vary based on many factors, such as; Ambient temperature and humidity, battery condition, work piece preparation and position, operator preference and technique etc.
Page 12: Operations & Care Instructions
110V circuit during any welding procedure. BATTERY ONLY OPERATION An important feature of the AIM MIG Welding Station is the ability to produce high quality welds on battery power alone. The duty cycle for battery welding will vary over a large range based on work piece thickness, metal alloy, battery condition.
Page 13: Changing Weld Wire Sizes
AIM Hybrid Pulse MIG Welder -HPM-350-HD CHANGING WELDING WIRE SPOOL Caution • The gear drive can injure or crush fingers in open rolls, Keep Guards in Place • Eye protection must be worn, weld wire can spring off reels when unrestrained;...
Page 14: General Instructions
AIM Hybrid Pulse MIG Welder -HPM-350-HD GENERAL INSTRUCTIONS Do not try to weld with low batteries. This will cause a substandard weld and rapid heat build- up in cables. The charge indicator lights and/or analog voltage meters provide an indication of the battery charge condition.
Page 15: Battery Care And Maintenance
AIM Hybrid Pulse MIG Welder -HPM-350-HD BATTERY CARE AND MAINTENANCE Note: This machine is equipped with maintenance free batteries. Equipment needed ➢ Gloves and Goggles ➢ Insulated wrench ➢ Baking soda ➢ Terminal protector spray ➢ Voltmeter ➢ Discharge tester (if available) Safety ➢...
Page 16 AIM Hybrid Pulse MIG Welder -HPM-350-HD Cleaning Clean the top of your battery with a cloth or brush and a solution of baking soda and water. Do not allow cleaning solution to get inside the battery. Keep the battery cabinet clean and dry.
Page 17: Mig Welding Station Periodic Maintenance
AIM Hybrid Pulse MIG Welder -HPM-350-HD Hybrid Pulse MIG HPM-350 PERIODIC MAINTENANCE Note: Follow safety instructions before performing maintenance DAILY Inspect for damage to the machine, torches and gas system. Make any repairs or adjustments. Check for leakage or unusual odors from the...
Page 18: Useful Operating Information
AIM Hybrid Pulse MIG Welder -HPM-350-HD USEFUL OPERATING INFORMATION Keeping your battery fully charged after use will increase the life of your battery. Keep welding tips cool. A low battery will cause excessive cable heat. Gases from battery vent out of the machine.
Page 19: Trouble Shooting
AIM Hybrid Pulse MIG Welder -HPM-350-HD TROUBLE SHOOTING Problem Check the following: Unit does not charge–Red light Make sure power cord is plugged in. Check power supply. Yellow light does not come on. Is the charger output cord disconnected or damaged? Check charger output cord for damages;...
Page 20: Limited Warranty
PERSONS TRAINED AND EXPERIENCED IN THE USE AND MAINTENANCE OF THE EQUIPMENT. AIM shall honor valid warranty claims on warranted equipment for a period of ONE YEAR in the event of such a failure within the warranty time period. All warranty time periods start on the date manufacture of the equipment and not to exceed one year after the equipment is shipped to a distributor or retail customer.
Page 21 TO THE EXTENT PERMITTED BY LAW, THE REMEDIES PROVIDED HEREIN ARE THE SOLE AND EXCLUSIVE REMEDIES. IN NO EVENT SHALL AIM BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING LOSS OF PROFIT), WHETHER BASED ON CONTRACT, TORT OR ANY OTHER LEGAL THEORY.
Page 22: Parts & Accessories
AIM Hybrid Pulse MIG Welder -HPM-350-HD REPLACEMENT PARTS & ACCESSORIES (Available through your dealer or at www.ai-mfg.com) Parts and accessories available please visit our website: www.ai-mfg.com AIM MIG OWNER’S MANUAL Rev. 2019: | REPLACEMENT PARTS & ACCESSORIES...
Page 23: Shipping & Handling Procedures
AIM Hybrid Pulse MIG Welder -HPM-350-HD SHIPPING & HANDLING PROCEDURES HYBRID PULSE MIG HPM-350-HD This machine contains AGM batteries. Each battery is liquid tight when battery manufacture instructions are followed. However, in the event the battery is tipped over and some acid spillage does occur, neutralize the acid with baking soda.
Page 24: Warranty Registration
AIM Hybrid Pulse MIG Welder -HPM-350-HD WARRANTY REGISTRATION INFORMATION Please Record the Following Information Owner:_______________________________________ Location:______________________________________ Owner Address:________________________________ Owner Telephone:_______________Fax:____________ Owner E-Mail:_________________________________ Dealer:________________________________________ Dealer Telephone:______________________________ Dealer E-Mail:__________________________________ Serial Number:_________________________________ Date of Manufacture:____________________________ Date Placed in Service:___________________________ AIM MIG OWNER’S MANUAL Rev. 2019:...
Page 25: Battery Msds
AIM Hybrid Pulse MIG Welder -HPM-350-HD AIM MIG OWNER’S MANUAL Rev. 2019: | SHIPPING & HANDLING PROCEDURES...
Page 26 AIM Hybrid Pulse MIG Welder -HPM-350-HD AIM MIG OWNER’S MANUAL Rev. 2019: | SHIPPING & HANDLING PROCEDURES...
Page 27 AIM Hybrid Pulse MIG Welder -HPM-350-HD AIM MIG OWNER’S MANUAL Rev. 2019: | SHIPPING & HANDLING PROCEDURES...
Page 28 AIM Hybrid Pulse MIG Welder -HPM-350-HD AIM MIG OWNER’S MANUAL Rev. 2019: | SHIPPING & HANDLING PROCEDURES...
Page 29 AIM Hybrid Pulse MIG Welder -HPM-350-HD AIM MIG OWNER’S MANUAL Rev. 2019: | SHIPPING & HANDLING PROCEDURES...
Page 30 AIM Hybrid Pulse MIG Welder -HPM-350-HD AIM MIG OWNER’S MANUAL Rev. 2019: | SHIPPING & HANDLING PROCEDURES...
Page 31 AIM Hybrid Pulse MIG Welder -HPM-350-HD AIM MIG OWNER’S MANUAL Rev. 2019: | SHIPPING & HANDLING PROCEDURES...
