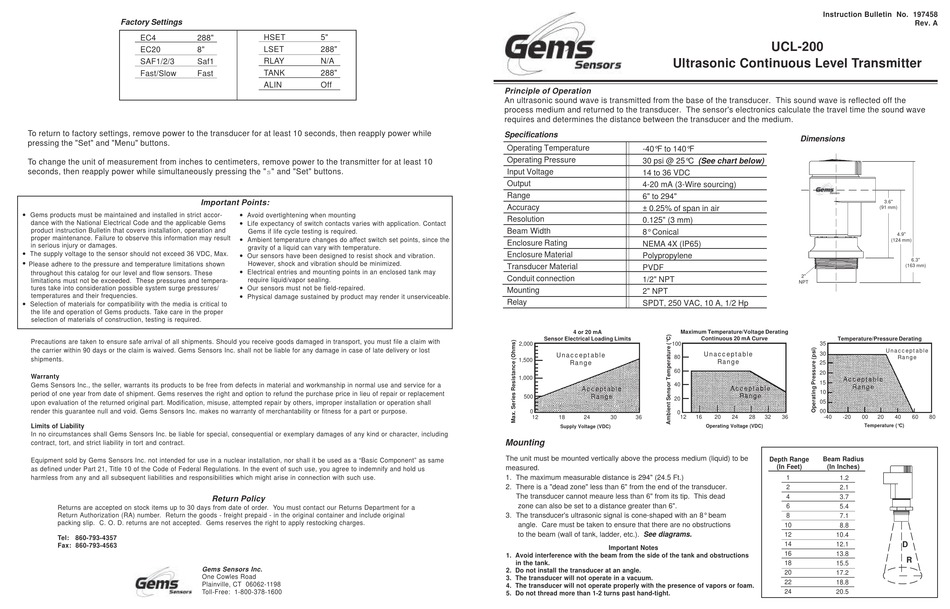

Gems Sensors UCL-200 Quick Start Manual

Factory Settings
EC4 288"
EC20 8"
SAF1/2/3 Saf1
Fast/Slow Fast
To return to factory settings, remove power to the transducer for at least 10 seconds, then reapply power while
pressing the "Set" and "Menu" buttons.
To change the unit of measurement from inches to centimeters, remove power to the transmitter for at least 10
seconds, then reapply power while simultaneously pressing the "s" and "Set" buttons.
Important Points:
•
Gems products must be maintained and installed in strict accor-
dance with the National Electrical Code and the applicable Gems
product instruction Bulletin that covers installation, operation and
proper maintenance. Failure to observe this information may result
in serious injury or damages.
•
The supply voltage to the sensor should not exceed 36 VDC, Max.
•
Please adhere to the pressure and temperature limitations shown
throughout this catalog for our level and flow sensors. These
limitations must not be exceeded. These pressures and tempera-
tures take into consideration possible system surge pressures/
temperatures and their frequencies.
•
Selection of materials for compatibility with the media is critical to
the life and operation of Gems products. Take care in the proper
selection of materials of construction, testing is required.
Precautions are taken to ensure safe arrival of all shipments. Should you receive goods damaged in transport, you must file a claim with
the carrier within 90 days or the claim is waived. Gems Sensors Inc. shall not be liable for any damage in case of late delivery or lost
shipments.

Warranty

Gems Sensors Inc., the seller, warrants its products to be free from defects in material and workmanship in normal use and service for a
period of one year from date of shipment. Gems reserves the right and option to refund the purchase price in lieu of repair or replacement
upon evaluation of the returned original part. Modification, misuse, attempted repair by others, improper installation or operation shall
render this guarantee null and void. Gems Sensors Inc. makes no warranty of merchantability or fitness for a part or purpose.

Limits of Liability

In no circumstances shall Gems Sensors Inc. be liable for special, consequential or exemplary damages of any kind or character, including
contract, tort, and strict liability in tort and contract.
Equipment sold by Gems Sensors Inc. not intended for use in a nuclear installation, nor shall it be used as a "Basic Component" as same
as defined under Part 21, Title 10 of the Code of Federal Regulations. In the event of such use, you agree to indemnify and hold us
harmless from any and all subsequent liabilities and responsibilities which might arise in connection with such use.
Returns are accepted on stock items up to 30 days from date of order. You must contact our Returns Department for a
Return Authorization (RA) number. Return the goods - freight prepaid - in the original container and include original
packing slip. C. O. D. returns are not accepted. Gems reserves the right to apply restocking charges.
Tel: 860-793-4357
Fax: 860-793-4563
HSET 5"
LSET 288"
RLAY N/A
TANK 288"
ALIN Off
•
Avoid overtightening when mounting
•
Life expectancy of switch contacts varies with application. Contact
Gems if life cycle testing is required.
•
Ambient temperature changes do affect switch set points, since the
gravity of a liquid can vary with temperature.
•
Our sensors have been designed to resist shock and vibration.
However, shock and vibration should be minimized.
•
Electrical entries and mounting points in an enclosed tank may
require liquid/vapor sealing.
•
Our sensors must not be field-repaired.
•
Physical damage sustained by product may render it unserviceable.

Return Policy

Gems Sensors Inc.
One Cowles Road
Plainville, CT 06062-1198
Toll-Free: 1-800-378-1600
Ultrasonic Continuous Level Transmitter

Principle of Operation

An ultrasonic sound wave is transmitted from the base of the transducer. This sound wave is reflected off the
process medium and returned to the transducer. The sensor's electronics calculate the travel time the sound wave
requires and determines the distance between the transducer and the medium.

Specifications

Operating Temperature
-40°F to 140°F
Operating Pressure
30 psi @ 25°C (See chart below)
Input Voltage
14 to 36 VDC
Output 4-20 mA (3-Wire sourcing)
Range
6" to 294"
Accuracy
± 0.25% of span in air
Resolution
0.125" (3 mm)
Beam Width
8° Conical
Enclosure Rating
NEMA 4X (IP65)
Enclosure Material
Polypropylene
Transducer Material
PVDF
Conduit connection
1/2" NPT

Mounting

2" NPT
Relay
SPDT, 250 VAC, 10 A, 1/2 Hp
4 or 20 mA Maximum Temperature/Voltage Derating
Sensor Electrical Loading Limits
2,000 100
Unacceptable
80
1,500 Range
60
1,000
40
Acceptable
Range
500
20
0
0
12 18 24 30 36 12
Supply Voltage (VDC)
Mounting
The unit must be mounted vertically above the process medium (liquid) to be
measured.
1. The maximum measurable distance is 294" (24.5 Ft.)
2. There is a "dead zone" less than 6" from the end of the transducer.
The transducer cannot meaure less than 6" from its tip. This dead
zone can also be set to a distance greater than 6".
3. The transducer's ultrasonic signal is cone-shaped with an 8° beam
angle. Care must be taken to ensure that there are no obstructions
to the beam (wall of tank, ladder, etc.). See diagrams.
Important Notes
1. Avoid interference with the beam from the side of the tank and obstructions
in the tank.
2. Do not install the transducer at an angle.
3. The transducer will not operate in a vacuum.
4. The transducer will not operate properly with the presence of vapors or foam.
5. Do not thread more than 1-2 turns past hand-tight.
Instruction Bulletin No. 197458
UCL-200
Dimensions
2"
NPT
Continuous 20 mA Curve Temperature/Pressure Derating
35
Unacceptable
30
Range
25
20
Acceptable
15
Range
Acceptable
10
Range
05
00
16 20 24 28 32 36 -40 -20 00
Temperature (°C)
Operating Voltage (VDC)
Depth Range Beam Radius
(In Feet) (In Inches)
1 1.2
2
2.1
4 3.7
6
5.4
8 7.1
10
8.8
12 10.4
14
12.1
16 13.8
18
15.5
20 17.2
22
18.8
24 20.5
Rev. A
3.6"
(91 mm)
4.9"
(124 mm)
6.3"
(163 mm)
Unacceptable
Range
20 40 60 80
D
R
