Nortek 300 Series Install

SUPPLIED WITH DECORATIVE SWITCH PLATE
NOTE: This unit must be added to the Network only where it will be permanently installed. The proper operation of this node in the
mesh network is dependent on it knowing its location with respect to other nodes. You cannot "test bench" confi gure this unit, then install.
WD1000Z-1 WALL MOUNTED DIMMER
™
The GoControl family of Z-Wave
LED fi xtures, bulbs, switches, dimmers, outlets, and plug-in modules) Control
Products (thermostats, irrigation controller and garage door controller) and
Sensors (fl ood, leak, alert sounder, motion sensor and door/window sensor)
bring a new level of intelligent wireless Home Automation capability to
commercial and residential environments.
The Z-Wave wireless protocol is an international wireless standard for remote
home automation, security and other applications. This product can be included
and operated in any Z-Wave network with other Z-Wave certifi ed devices
from other manufacturers and/or other applications. All non-battery operated
nodes within the network will act as repeaters regardless of vendor to increase
reliability of the network.
The WD1000Z-1 Wall Mounted Dimmer allows remote ON/OFF control and
dimming of connected lights. The Z-Wave Wall Mount Dimmer is easily wired
in place of a standard wall dimmer. This device requires a Neutral connection.
GoControl Z-Wave products are easy to install, are Z-Wave certifi ed, and allow
dealers to create an integrated wireless network with nearly limitless expansion
and interoperability with security, energy management, home entertainment,
appliances, and more.
®
certifi ed wireless lighting products (smart

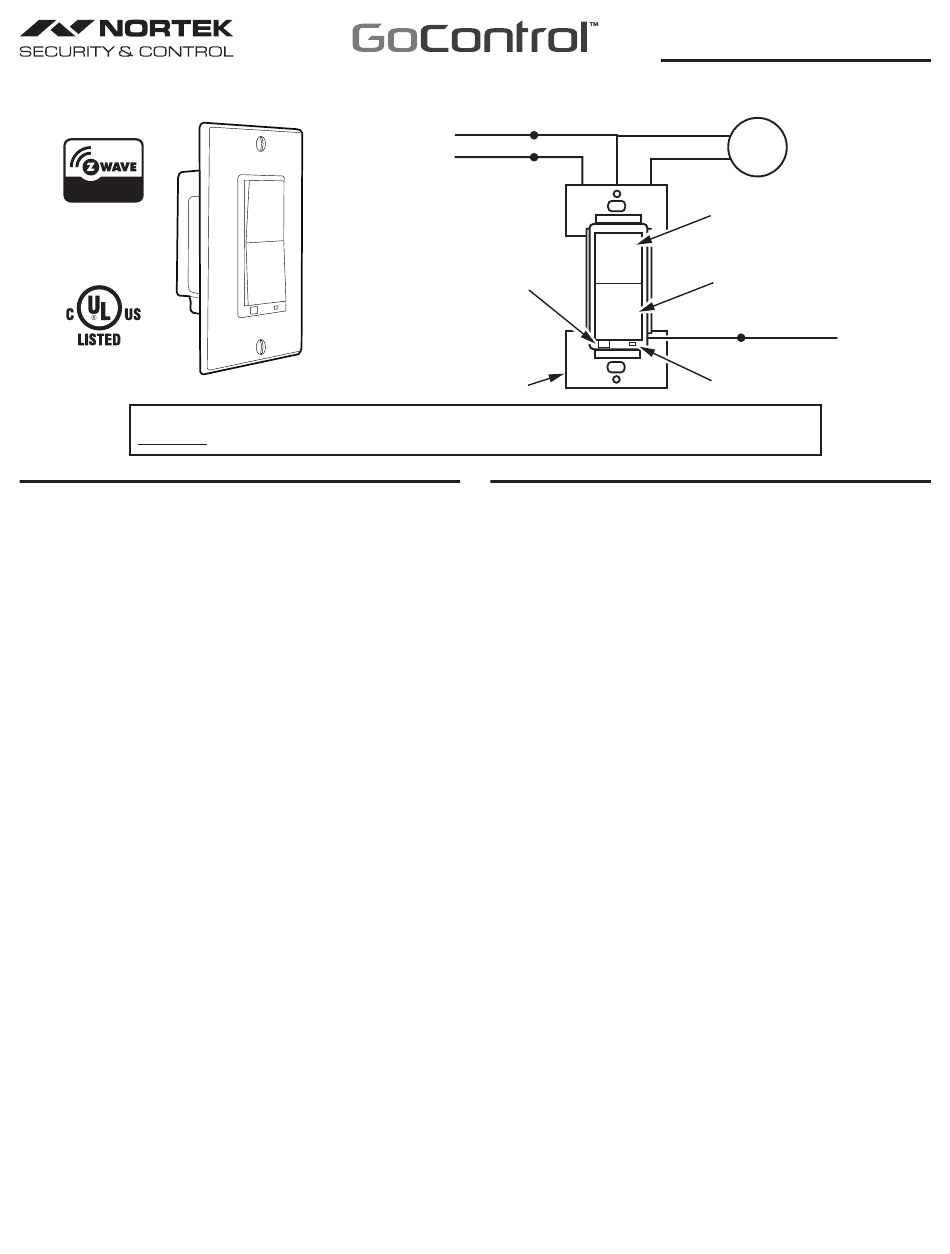

Z-Wave Radio Frequency (RF) Controlled, 120 VAC
WHITE
NEUTRAL
120 VAC
BLACK
LINE
TAP TOP OR BOTTOM
OF SWITCH PADDLE
TO CONFIGURE
AIR GAP SWITCH
IN - OPERATION
OUT - CHANGE LOAD
SCORED TABS WILL
BREAK FLUSH WITH
EDGE OF PLASTIC
PREPARATION
DANGER! SHOCK HAZARD. Read and understand these
instructions before installing. This device is intended for installation in
accordance with the National Electric code and local regulations in the United
States, or the Canadian Electrical Code and local regulations in Canada. It is
recommended that a qualifi ed electrician perform this installation. Make
sure the total load controlled does not exceed the rated maximum. For indoor
use only. Retain instructions for future use.
CAUTION: To reduce the risk of overheating and possible damage to other
equipment, do not install to control a receptacle, a motor operated appliance,
a fl uorescent lighting fi xture, or a transformer-supplied appliance, but only
permanently installed incandescent lamp fi xtures. Make sure the lamp(s) to be
controlled directly from the dimmer total no more than 500 watts.
Air Gap Switch
The WD1000Z-1 has an air gap switch on the face (lower left), that when pulled
out, completely removes the power available to the load (simply turning the
dimmer off does not). This enables the lamps that are controlled by the device
to be changed with minimal danger of electrical shock. The air gap switch must
be pushed all the way back in for the dimmer to operate the lamps again.
Proper Single Gang Installation
Using WD1000Z-1 standard full heat-sink (all tabs), the connected incandescent
lamp load shall not exceed 100W.
If a tab is removed from one side of the unit, the connected incandescent lamp
load must not exceed 900W.
If both tabs are removed from the unit, the connected incandescent lamp load
must not exceed 800W.
Proper Dual Gang Installation
The connected incandescent lamp load must not exceed 900W for each of the
two WD1000Z-1 units.
Proper Triple Gang Installation
The connected incandescent lamp load must not exceed 700W for each of the
three WD1000Z-1 units.
1
WD1000Z-1
1000 Watt, Wall Mounted Dimmer, Series 300
LOAD
BLUE
PUSH FOR ON
HOLD TO BRIGHTEN
PUSH FOR OFF
HOLD TO DIM
GREEN GROUND
STATUS LED
