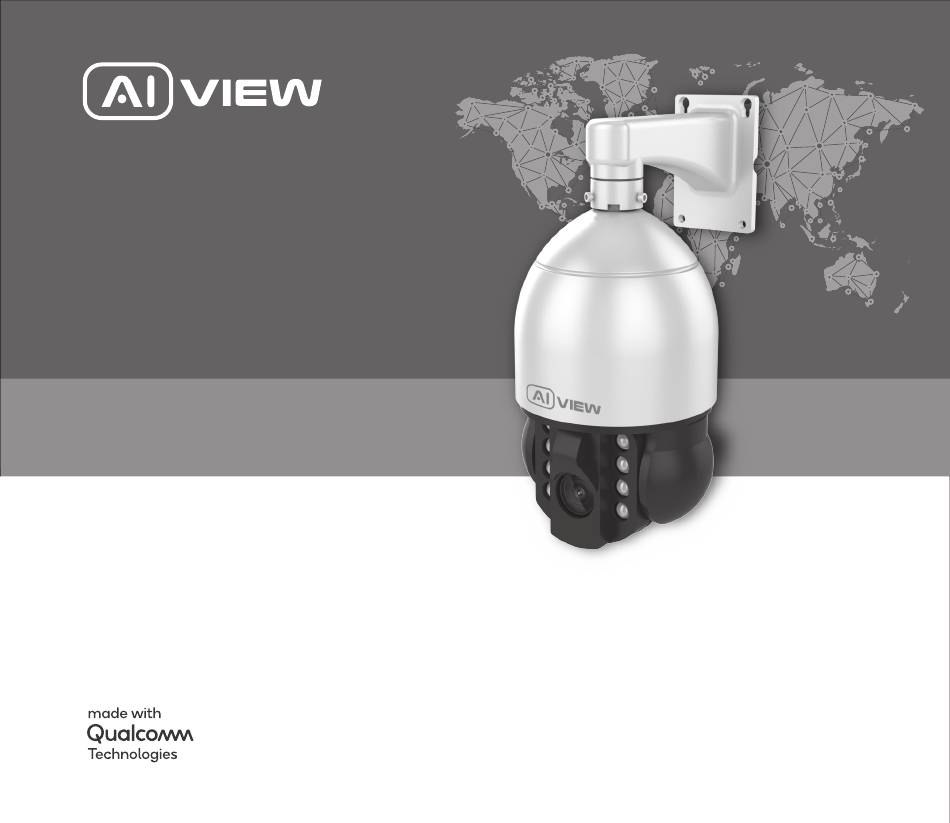

Ultra zoom Speed Dome
AI Security Camera
Qualcomm products contained herein are products of Qualcomm Technologies, Inc. and/or its subsidiaries.
Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries.
The Made with Qualcomm Technologies logo is a trademark of Qualcomm Incorporated.
Advertisement
Table of Contents
Summary of Contents for AI View S500
- Page 1 Ultra zoom Speed Dome AI Security Camera Qualcomm products contained herein are products of Qualcomm Technologies, Inc. and/or its subsidiaries. Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries. The Made with Qualcomm Technologies logo is a trademark of Qualcomm Incorporated.
- Page 2 INSTALLATION GUIDE Model: S500 Product Number: 0233...
-
Page 3: Product Kit
PRODUCT KIT Camera Wall Bracket 24VAC power supply WALL DECAL FOR DRILLING POSITION Thank You ! by Bkav Corporation Ultra zoom Speed Dome Ø10 mm, 4 holes AI Security Camera Qualcomm products contained herein are products of Qualcomm Technologies, Inc. and/or its subsidiaries. Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries. - Page 4 PRODUCT KIT Safety cable Set 4 of screws Hex tool and anchors...
-
Page 5: Technical Specification
TECHNICAL SPECIFICATION Power supply AC 24V/3A Protection standards IP66, IK10 Resolution, frame rate FHD 1920x1080, 60 fps Optical zoom Focal length 4.5 - 148.5mm ± 5% Angle of view (horizontal-vertical) Near: 60.1° - 36.2° / Far: 2.28° - 1.29° Mirco SD card External, up to 256GB -40°C - 80°C (-40°F - 176°F) Environmental conditions... -
Page 6: Product Overview
PRODUCT OVERVIEW 24VAC power supply RJ45 terminal block Camera body Camera lens Infrared LED... - Page 7 INSTALLATION GUIDE Step 1: Fix the camera on the bracket and tighten the screws it in the place (Figure 1). Step 2: Assemble safety cable into the camera (Figure 2 - 3). Safety cable...
- Page 8 INSTALLATION GUIDE Step 3: Apply positions decal and drill 4 anchors to the wall. Fix the camera onto the wall with the screw (Figure 4). Drilling position decal...
-
Page 9: Connecting The Signal Wire
CONNECTING THE SIGNAL WIRE Connect network signal and power 24VAC. Network cable RJ45 terminal block 24VAC power supply Black wire Red wire... -
Page 10: Camera Field Of View
CAMERA FIELD OF VIEW 360° 90°... - Page 11 ATTENTION Note: During a power outage, the camera will be down as shown in the image above. When power is on, the camera will return to its previous position.
- Page 12 THE MEMORY CARD AND RESET INSTALLATION Reset installation: Open the protective cover that protects the camera against dust and water to reset the device. Memory card: Open the protective cover, you can find the location of Micro SD card. Mirco SD card Reset factory Note: Power off the camera, press and hold the factory reset button.
-
Page 13: Accessing The Camera
ACCESSING THE CAMERA Password setting Using your web browser, access the camera's default IP: 192.168.1.168 Note: To complete the installation steps for the camera, refer to the User Manual. The system will ask you to reset the password on your initial access. When the "Administrator password change"... -
Page 14: Software Installation
SOFTWARE INSTALLATION Login screen When accessing the camera, a login window will appear. Enter your user name and password to access the camera. 1. Enter "admin" in the <User name> box. 2. Enter your chosen password in <Password> box. 3. Click... -
Page 15: Safety Information
SAFETY INFORMATION Be sure to follow this advice to ensure the device works properly. Precautions: It is recommended to use shielded network cables (STP) during set-up. It is recommended to use CAT5e or higher network cables. Store the camera in a cool and dry environment. Shield the camera from potential impact from heavy objects. - Page 16 Bkav Corporation Add: 2nd Floor - HH1 Building, Yen Hoa Ward, Cau Giay District, Ha Noi, Viet Nam Website: www.aiview.ai Email: aiview@bkav.com...
