Summary of Contents for WOODY'S WINCH WW-700-34

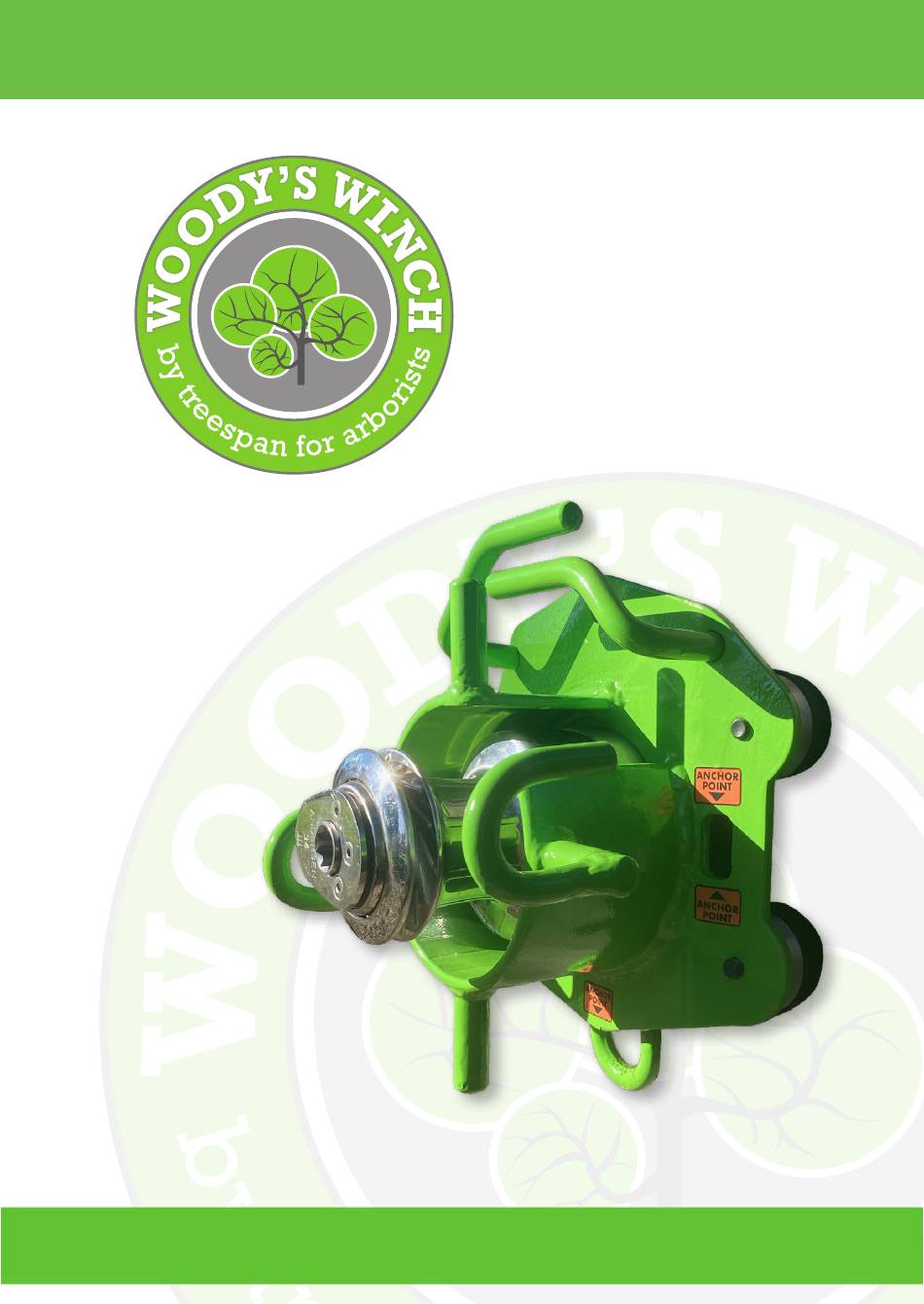

- Page 1 WOODY’S WINCH WW-700-34 Part Number WW-700-34 Read this manual carefully, instructions are given for the correct use of this device...
- Page 2 Part Number WW-700-34 WARNING Activities using this type of equipment are inherently dangerous. It is not possible to cover every eventuality relating to the use of this equipment. Purchasers and users of Woody’s Winch devices should seek professional training from a fully qualified and competent instructor prior to engaging in any activity.
- Page 3 Part Number WW-700-34 Device Identification and Markings Each Woody’s Winch Device is fitted with one Device identification plates as shown below LOWERING DEVICE WINCH RONSTAN WOODY’S WINCH PTY LTD WW-700-34 ANDERSEN 16 (kg) 34ST FS 20 (kg) 4.1 (kg) M.W.L - 250 (kg) M.W.L - 700 (kg)
- Page 4 Part Number WW-700-34 Maximum Working Loads Device Part Minimum Rope Maximum Rope Maximum Working Load Diameter Diameter M.W.L Lowering Device 700kg Dynamic Lowering 19mm 10:1 SF Winch 14mm 700kg Lifting/Lowering Woody’s Winch Lowering devices should only ever be used with the correct diameter rope. Never exceed the minimum or maximum diameter.
- Page 5 Part Number WW-700-34 Usage and Service Time Frames Device Part Daily Use Every Month of Use Every Year of Use Check for Tactile or visual Check for Tactile or visual Lowering Device, signs of wear, chemical signs of wear, chemical Replace Straps &...
- Page 6 Part Number WW-700-34 Baseplate Fair leads Lowering Bollard Fair leads Lowering Bollard Winch Andersen 34ST Preservation Mounts x 4 18mm Soft Eye Sling Main Base Anchor Point x 1 Top Attachment Point 500kg M.W.L...
- Page 7 Part Number WW-700-34 WARNING: 5 ton Ratchet Strap Anchor Points x 2 It is important that all Safety Labels are visible Bollard and Winch Product Information & and present. It is recommended that you Identification Label (WW-34-SK1) replace these immediately if they are removed Product Logo (WW-SK4) or unreadable.
- Page 8 Part Number WW-700-34 Attachments Points The Top Attachment Point has a Maximum Working Load of 500kg. The Main Strap Anchor Points and the Base Anchor point take the strain of the device during use. Always check the main mounting straps are in good usable condition before using them to mount the device. A sufficiently rated Soft Eye Sling or Whoopie Sling must also be connected to the Base Anchor Point before putting the device into service.
- Page 9 Part Number WW-700-34 Device Mounting Instructions Using the provided sling with karabiner and “Camjam XT” attach the sling to the tree following the steps shown in the photos. Make sure the sling is pulled tight and correctly set in the cam device. The karabiner should be oriented in the downwards position.
- Page 10 Part Number WW-700-34 Device Mounting Instructions Using a sufficiently rated Soft Eye sling or Whoopie sling, attach the sling to the base anchor point as shown in the diagram. The device is currently supplied with a Teufel- berger Sirius 18mm Soft Eye Sling 4 meters in length. It...
- Page 11 Part Number WW-700-34 Device Mounting Instructions The Diagram opposite shows the correct attachment to the tree of the Woody’s Winch lowering device with the base anchor and 5 ton strap. It is important to note that the full 700kg dynamic rating...
- Page 12 Part Number WW-700-34 Winch, Lowering Device Instructions Attach the Woody’s winch and clutch device as pre- viously described. The working line should be running vertically through the lowering device fair leads and into the winch opening. A minimum of 3 clockwise wraps around the winch drum and into the self tailing device provides sufficient friction on the line for winching operations up to the M.W.L of...
- Page 13 Part Number WW-700-34 Winch, Lowering Device Instructions The photo opposite shows the correct working line orientation through the lowering device fairleads and around the lowering bollard. The lowering bollard is de- signed to take larger shock loads than the winch drum and must be used when dynamically lowering large sec- tions of timber.
- Page 14 Part Number WW-700-34 Add more wraps to create extra friction, remember the Woody’s Winch has a large diameter lowering bollard that creates a larger amount of friction per wrap than smaller bollards, take this into account when determin- ing the amount of wraps to apply. Apply the appropriate number of wraps and ensure the working line exits the bollard via an exit fairlead.
- Page 15 Part Number WW-700-34 When using the Woody’s Winch for horizontal winching operations the operator must ensure the working line is redirected using an additional fairlead mounted above the Woody’s Winch. Using a suitably rated pulley and sling is recommended. Failure to follow this procedure will damage the devices fairleads and pull them out of alignment.
- Page 16 Part Number WW-700-34 Inspection Record The manufacturer recommends this device be inspected prior to use along with periodic inspections as described in the Usage and Service Time Frames table. Model Serial Number Purchased from Purchase date Date first used Periodic examination record...
