Summary of Contents for Aerofy HD2

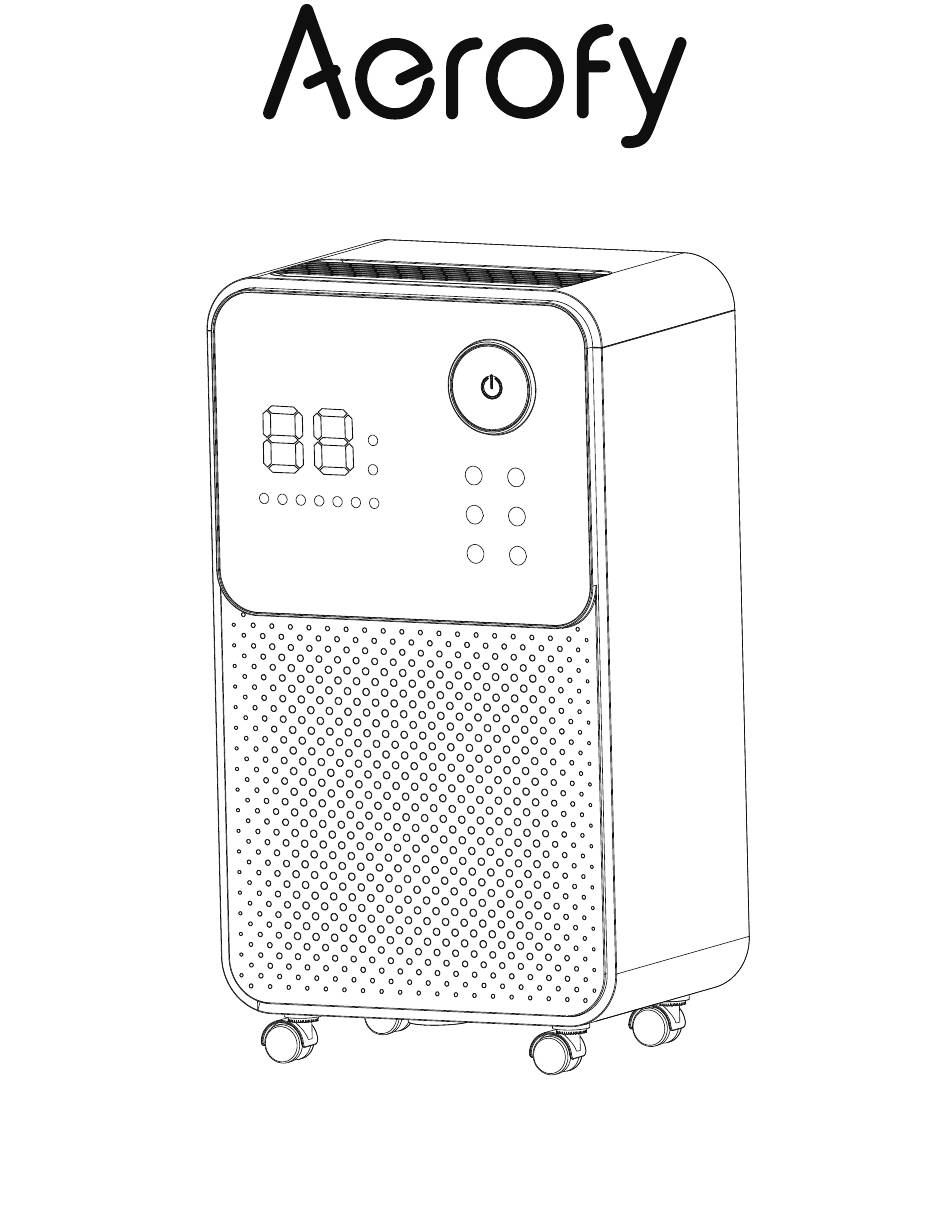

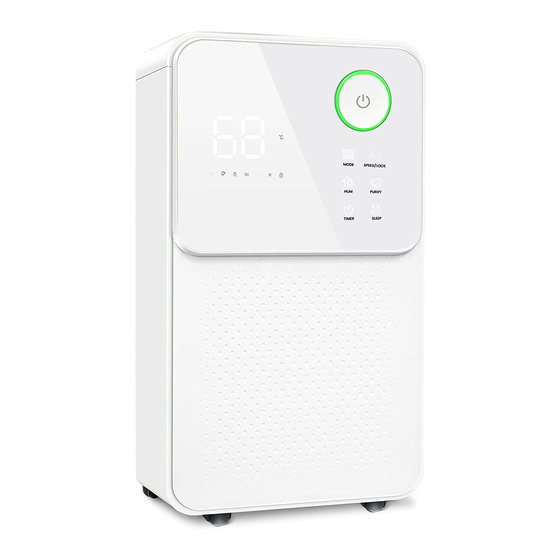

- Page 1 Dehumidifier Instruction Manual Model：HD2 Please be sure to read this manual carefully before using it.
-
Page 2: Table Of Contents
CONTENTS Important Safety Instructions ------------------------ Cautions ----------------------------------------------- Cleaning and Maintenance --------------------------- Product Diagram ------------------------------------- Operation --------------------------------------------- Control Panel ----------------------------------------- Indicator light ---------------------------------------- Water Drainage -------------------------------------- Troubleshooting ------------------------------------- Specifications ----------------------------------------- Warranty ----------------------------------------------... -
Page 3: Important Safety Instructions
Important Safety Instructions 1. If the dehumidifier was transported tilted on its side, you must position it upright and wait at least 3 hours before using it. 2. If the dehumidifier works at a temperature lower than 18℃(64.4℉) for a long time, the dehumidifier will automatically enter the defrosting operation, which will have a certain impact on the dehumidification function. -
Page 4: Cleaning And Maintenance
Cleaning and Maintenance Cleaning unit 1. Wipe the surface with a soft cloth, and wipe the control panel with a dry cloth. Do not clean it directly with water. 2. Stubborn dirt should be moistened with a soft cloth with a neutral detergent, wring it out, and then wipe it. -
Page 5: Product Diagram
Product Diagram Air outlet Touch Control Panel Front Shell Right Side Panel Casters Front Back Shell Right Side Panel Filter Continuous Drain Hose Water tank Back... -
Page 6: Operation
Operation Turn on the dehumidifier When the unit is powered on, the buzzer beeps once, the screen will displays "--", and the unit is in standby mode. After pressing the power button, the luminous circle around the button lights up, and the screen displays the current ambient humidity. -
Page 7: Control Panel
Control Panel SPEED/LOCK MODE SPEED/LOCK MODE SLEEP TIMER SLEEP TIMER Power Button In the standby state, press the power button to turn on, the indicator light is on, the default fan runs at high wind, the ion is turned on, and the dehumidifier runs at the default target humidity of 60%. - Page 8 Timer Button In the standby state, press this button to set the timing power-on time (0-24 hours). When the unit is running, press this button to set the scheduled shutdown. Set to "00" to cancel the timing. After the timing is set and completed, the timing indicator light is always on during the timing, and it will automatically turn off after the timing ends.
-
Page 9: Indicator Light
Indicator light Power Indicator After the dehumidifier is switched on, the luminous circle around the switch will display correspondingly according to the current humidity and status. Ambient humidity <60%, showing blue light (constant light); 60%≤ambient humidity<80%, showing green light (constant light); Ambient humidity ≥80%, showing red light (constant light);... -
Page 10: Water Drainage
Water Drainage Water Tank Remove the water tank: Hold both sides of the water tank, and pull it out slowly. Continuous Drainage First take out the water tank(See Fig.1), and then firmly connect the drain hose(Inner diameter 9.5mm/0.37inch) to the drain outlet(See Fig.2), and connect the other end of the water hose to the floor drain or other containers(See Fig.3), and finally put the water tank back. -
Page 11: Troubleshooting
Troubleshooting Reason Solution Problem Check whether the power plug Plug the power cord into is properly connected the power socket Water full indicator light is on Empty the water tank and (The water tank is full of water place the water tank The unit does not start or not in the right position) correctly in the unit... -
Page 12: Specifications
Specifications Country America Europe United Kingdom Japan Rated Voltage/ 115V/60Hz 100V/50(60)Hz AC 220~240V/50Hz AC 220~240V/50Hz Frequency Rated Wattage 175W 156W 156W 180W Wattage Max 205W 180W 180W 220W 1.9A 0.88A 0.88A 2.1A Rated Current Current Max 2.1A 0.95A 0.95A 2.6A Refrigerant R134a/3.35 oz R134a/3.35 oz...
