Summary of Contents for ANOLY MU Series

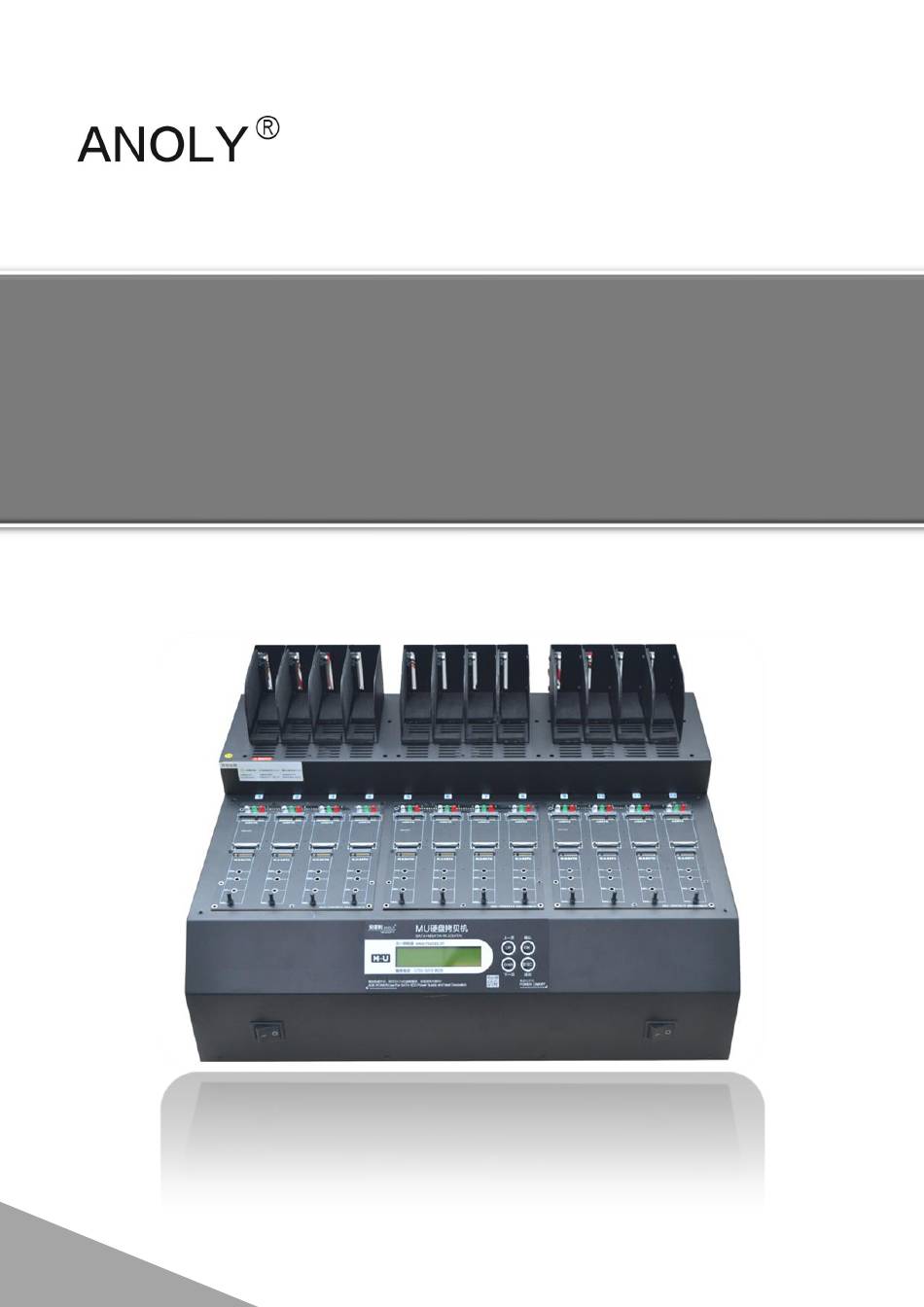

- Page 1 www.mucopy.cn MU 1200 SATA Hard Disk Duplicator & Eraser User Manual V1.0...
-
Page 2: Table Of Contents
Index 1. Product Disclaimer ..........................1 2. Warranty ..............................1 3. Piracy Statement ............................. 1 4. Notice & Reminder ..........................2 5. Safety Precautions ..........................2 6. Preparation Tips before You Start ...................... 2 7. Notice Symbols ............................3 8. Product Overview .......................... -
Page 3: Product Disclaimer
1. Product Disclaimer The manufacturer is not accountable for any incidental or consequential damages, which includes, but not constrained to property harm, loss of time or data from use of a The manufacturer product, or any other damages attributable to product malfunction or failure of (including without limitation, those attributable to: (1) reliance at the materials provided, (2) costs of product replacement, (3) loss of use, data or profits, (4) delays or business interruptions, (5) and any principle of legal responsibility, arising out of or in reference to the use or overall performance (or from delays in servicing or lack of ability to render service on any) our... -
Page 4: Notice & Reminder
4. Notice & Reminder Important Notice Read the complete operation instructions carefully, contributes to a better operation. Make sure the source device is correct and workable. To guarantee data consistency, we highly recommend the capacity of source and targets should be the same. -
Page 5: Notice Symbols
Refers to operations that need to be followed or to be cautious to avoid mistakes. 8. Product Overview The MU Series is an ultra-high speed duplicator, and each SATA port is independent. That's why no matter how many targets running, it has the same performance of transmission speed, far beyond PC-based duplicators. -
Page 6: Product Features
9. Product Features Operation Type Standalone, FPGA based operation (Non-PC based system design). Patented Daisy Chain Technology Dedicated bandwidth enables high-volume duplications without speed degradation. Auto Power Control System Protect the HDD from getting damaged during hot removal from the duplicator. Clear &... -
Page 7: Hardware Overview
10.Hardware Overview Front HDD Mobile Rack LED Indicator mSATA Card slot (Disable/ Green /Red) M.2-SATA Card slot Power Switch (for fan&HDD) Power Switch Control Buttons Back Power Switch Power Cable LCD Configuration Confirm/OK Function Number of Total Size Forward Target HDD Time Elapsed and Copy Copied Backward Cancel/Back... -
Page 8: Function Table
11.Function Table Function Description Copy data from source devices to targets. (There are four copy modes for selection at 1. Copy function 6.1) 2. Compare Compares the source and targets to ensure copy accuracy. 3. Copy + Compare Automatically launches compare function after copy is completed. 4.1 Quick Erase Erases device(s)’... - Page 9 6.2 Skip Error Skips bad sectors during Copy/Compare. 6.3 Minimum Speed Allows user to disable or set minimum threshold speed. 6.4 Check Source Minimum Speed Allows user to enable or disable the source speed check. 6.5 Language Sets preferred language: English or Chinese. 6.6.1 Unknown Format Allows user to copy or skip unknown format(s).
-
Page 10: Start To Copy
12.Start to Copy Step 1: Prepare Source & Targets Prepare a source HDD\SDD and target HDDs\SDDs. (It’s strongly recommended the source and target are the same capacity.) Step 2: Place Source & Targets Place source HDD at source port, target HDDs to other ports. Step 3: Enter Function "1.Copy"... - Page 11 Step 4: Completion! Quantity of copy Pass/Fail, duplication time, and checksum value will show on LCD after duplication completes. During process of duplication, every port captures in real-time message shown on LCD. Pass Fail 29:14 Duplication Time Note The result will show light in red(fail) or green(pass). User is responsible for verification of targets’...
-
Page 12: Setup Before Copy/Compare
13.Setup before Copy/Compare Set Copy Area of Source HDD Appropriate copy area can greatly reduce operation time and have better efficiency. There are four copy modes with different copy areas, please go to function "Copy Area". ➊ System and Files: (Quick Copy data area only) Copies data and skips empty space. - Page 13 ➋ ALL Partitions Copies all partitions and data. The unallocated partition is not included. Scroll to select "All Partitions”, then press "OK" to save the copy method. The target device’s capacity must be equal to or larger than the source device’s capacity. [Copy Area] ALL Partitions ➌...
- Page 14 ➍ Percentage (%) Copy the selected percentage range of source HDD. [Copy Area] Percentage (%)
- Page 15 How to select the proper copy area? Example: There are two partitions in one 500G HDD. The charts below illustrate what portion would be duplicated. System and files All Partitions Whole HDD 30GB Data 30GB Data 30GB Data 100GB 100G 100G 70GB 70GB...
-
Page 16: Troubleshooting When Duplication Fails
III. Auto Skip Lower-Speed HDDs Enter function "6.3 Minimum Speed" to setup minimum required speed of target HDDs. The system will isolate any HDD which cannot reach the minimum required speed. Users can choose “Don’t care” or set the speed value among 10/20/40/60~300MB/second. This setting enables to speed up copying and select HDD speed higher than the setting. -
Page 17: Confirm Accuracy By Comparison
15.Confirm Accuracy by Comparison Step 1: Prepare Source and Targets Prepare the source HDD and target HDDs to compare after duplication is completed. Step 2: Place Source and Targets Place the source HDD to source port, target HDDs to rest of the ports. Step 3: Enter "2.Compare"... -
Page 18: Setting Of Erase Function
Step 3: Enter function "4. Erase" Use UP DOWN to select the mode of erasing method, and then press <OK>. Data Erase will proceed. Note During erasing, press UP DOWN to view the status of each port. Press <OK> to see the write speed of each port. - Page 19 DoD Erase & Compare (DoD5220.22 M) Besides DoD erase 3 times, this function will also execute comparison to make sure the random bit is correctly written. [Erase] 4. DoD EraseComp DoD EraseComp Method: 1. The erasing duration of DoD Erase mode is 3 times longer than full erase mode. Note 2.
-
Page 20: Other Settings
How to select erase pattern? The erasing settings enable to select overwrite data pattern at “6.6.3 Erase Pattern”. It will affect the following erase mode: (1) Quick erase (2) Full erase (3) 3rd loop overwrite method of DoD erase. Settings LCD Display Example ➊... - Page 21 How to change interface language? Enter function "6.5 Language" to change. Select preferred language, English or Chinese. [6. Setup] [Language] 5. Language English III. How to setup motor starting time on the machine? Enter function "6.4.4 Wait HDD Time" to set device power up buffer time prior to copy. The time range is from 3 to 30 seconds.
-
Page 22: Check Info
The data saved in this HDD will be erased. Step 2: Download Firmware. Connect this device to PC. Download the latest firmware provided by Anoly technical support, unzip the BIOS firmware, then save it to the root directory in the device. - Page 23 Step 3: Proceed to update firmware. Connect this device to the source port. Scroll to select "5.2.1 Update BIOS”, then press "OK" to start the firmware update process. [Update System] 1. Update BIOS Caution The firmware update process may take longer than 5 minutes. Please do not disrupt power or process during BIOS update.
-
Page 24: Specification Table
21.Specification Table Series MU1200 SATA+MSATA+M.2(SATA) HDD\SSD Duplicator Compatible HDD Interface without adapter: 2.5"\3.5"SATA HDD,SSD, SATA HDD, Interface NGFF(M.2) OS supported: All (Windows, Linux, RAID, other stand-alone systems) Operation Type Stand-alone operation Display Backlight monochrome LCD display Status LED LED(Red/ Green) on each slot Green (Pass), and Red (Fail) Keys 4 push keys (UP/ Up, DOWN/ Down, OK/ Confirm, ESC/ Exit) Quick Copy (System &...
