VIET GARDEN CO., LTD
Hunter's Distributor in Vietnam
205 Dao Duy Tu St., Dist.10, HCM City, Vietnam
Tel: 84-8-3957 4060

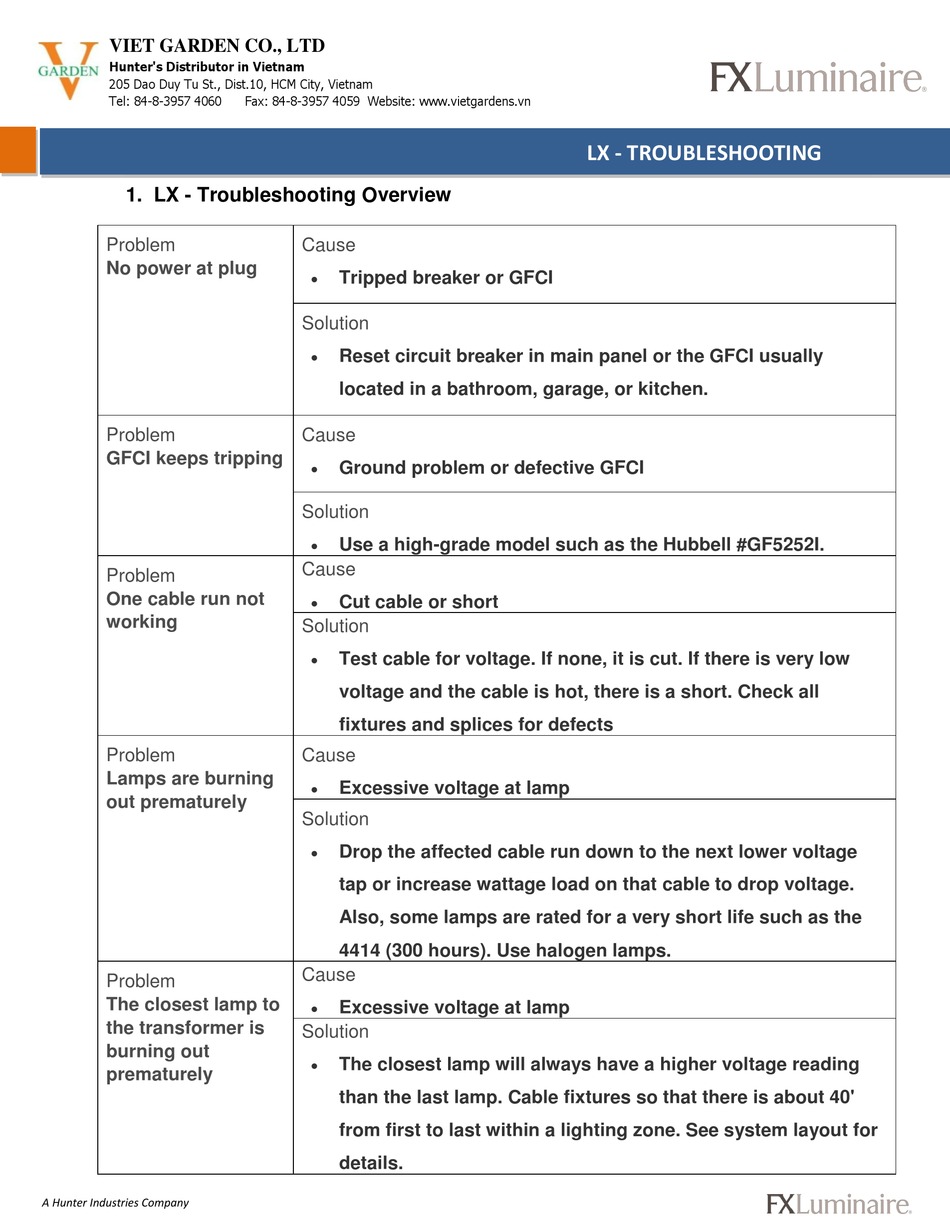

1. LX - Troubleshooting Overview
Problem
No power at plug
Problem
GFCI keeps tripping
Problem
One cable run not
working
Problem
Lamps are burning
out prematurely
Problem
The closest lamp to
the transformer is
burning out
prematurely
A Hunter Industries Company
Fax: 84-8-3957 4059 Website: www.vietgardens.vn
Cause
Tripped breaker or GFCI
Solution
Reset circuit breaker in main panel or the GFCI usually
located in a bathroom, garage, or kitchen.
Cause
Ground problem or defective GFCI
Solution
Use a high-grade model such as the Hubbell #GF5252I.
Cause
Cut cable or short
Solution
Test cable for voltage. If none, it is cut. If there is very low
voltage and the cable is hot, there is a short. Check all
fixtures and splices for defects
Cause
Excessive voltage at lamp
Solution
Drop the affected cable run down to the next lower voltage
tap or increase wattage load on that cable to drop voltage.
Also, some lamps are rated for a very short life such as the
4414 (300 hours). Use halogen lamps.
Cause
Excessive voltage at lamp
Solution
The closest lamp will always have a higher voltage reading
than the last lamp. Cable fixtures so that there is about 40'
from first to last within a lighting zone. See system layout for
details.
LX - TROUBLESHOOTING
Advertisement
Table of Contents
Summary of Contents for VIET GARDEN FX
- Page 1 VIET GARDEN CO., LTD Hunter's Distributor in Vietnam 205 Dao Duy Tu St., Dist.10, HCM City, Vietnam Tel: 84-8-3957 4060 Fax: 84-8-3957 4059 Website: www.vietgardens.vn LX - TROUBLESHOOTING 1. LX - Troubleshooting Overview Problem Cause No power at plug ...
- Page 2 Cause Voltage too low Problem Lamps have a Solution yellow or golden tone Move affected cable to the next higher voltage tap or reduce load on cable. If possible, run additional cable to first fixture to reduce voltage loss. Cause ...
- Page 3 Checking Voltage at Outlet This tool tells you whether or not the 120 volt receptacle you are plugging the FX Transformer into is wired properly. Follow the tool manufacturers instruction manual to assure proper wiring on the receptacle you will be using.
- Page 4 3. LX - Incoming Power to the Transformer The quickest way to see if the Transformer is receiving power is to plug a working lamp or radio into the outlet to see if outlet is providing power. If unit is hardwired to power supply, testing power should only be performed by a licensed electrician.
- Page 5 A successful reset will result in 12:00 on the display. You can now reprogram your LX face pack. 6. LX - Moving the Photocell FX manufactures an extended version of the LX Photocell with a lead to mount photocell up to 26' from transformer Kit Includes: ...
- Page 6 7. LX - No Power on Low Voltage Terminals If the LX transformer does not power on THE LOW VOLTAGE TERMINALS when plugged into a working outlet, the internal fuse may need to be replaced. NOTE: The front panel will still show power.
- Page 7 8 amps. If the cable is reading significantly more, it has a short somewhere in the cable. NOTE: Shorts and overloads are NOT covered by the FX warranty and can only be detected when the transformer is tested in the field 9.
