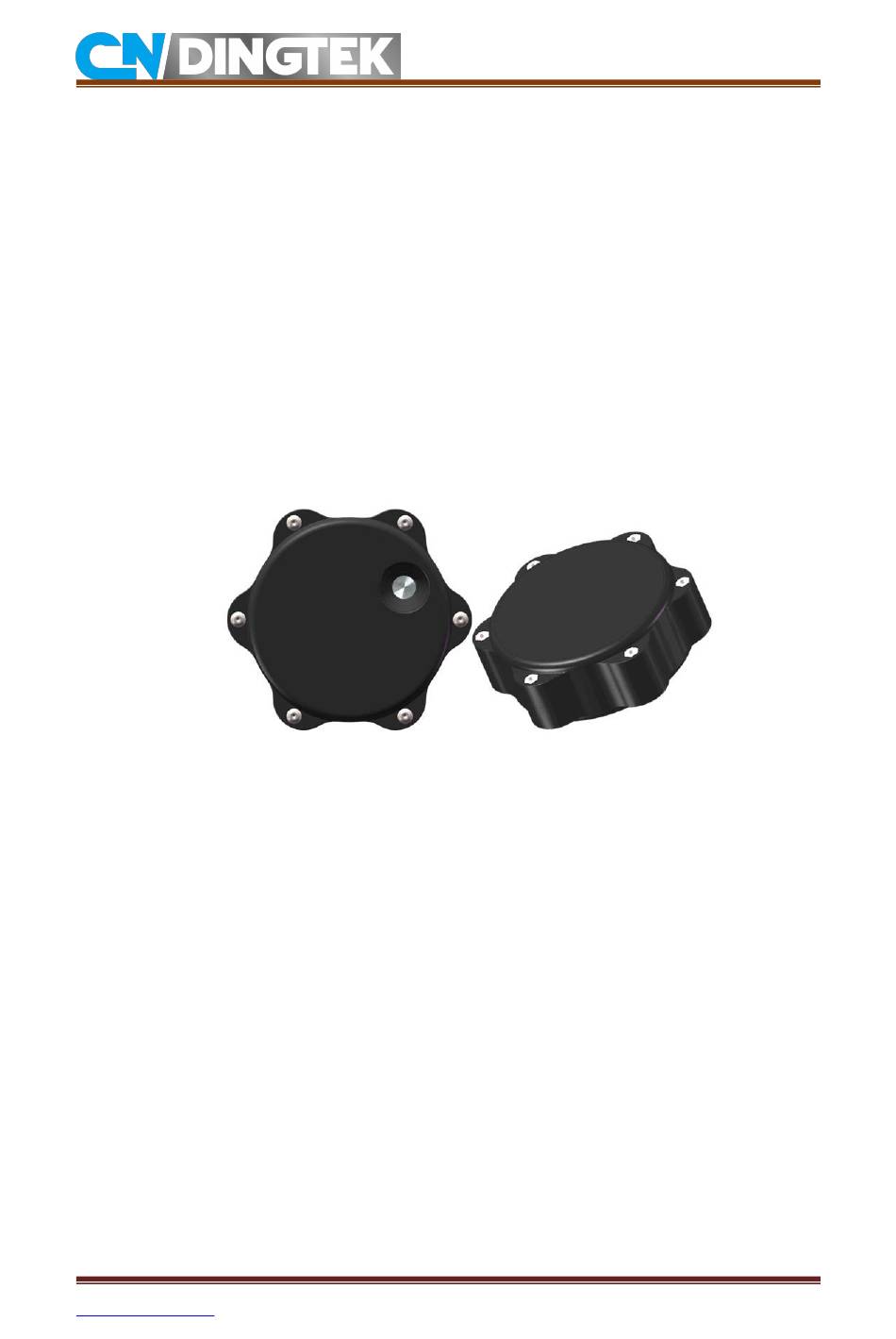

- Page 1 DF703 Waste Bin Sensor_LoRaWAN User’s Manual V1.1 Date: 2021-7-21 Beijing Dingtek Technology Corp., Ltd. Tel:86-10-64718863,64753700 http://www.dingtek.com E-mail: service@dingtek.com Room A209, Flounder Business Park, Shunbai Road 12, Chaoyang District, Beijing, China 100022 Page...
- Page 2 Changed V1.1 Modify DF703 device picture. V1.0 DF703 initial version. Beijing Dingtek Technology Corp., Ltd. Tel:86-10-64718863,64753700 http://www.dingtek.com E-mail: service@dingtek.com Room A209, Flounder Business Park, Shunbai Road 12, Chaoyang District, Beijing, China 100022 Page...
-
Page 3: Table Of Contents
INDEX 1 Overview............................4 2 DF703 Default Configuration......................4 2.1 DF703 Default Configuation....................4 2.2 LoRaWAN Band........................5 3 DF703 Sensor Function Description.....................5 3.1 Reporting rules........................5 3.2 Full /Empty state detection (height detection)..............5 3.3 Fire alarm function......................6 3.4 Fall detection function......................7 3.5 GPS function......................... -
Page 4: Overview
1 Overview These documents are helpful to understand the DF703 Waste Bin Detector's following: ▪DF703 sensor parameter setting by default ▪DF703 sensor function description ▪Hardware Interface ▪Connect power ▪Reboot DF703 sensor by magnet ▪Installation ▪Protocol and API 2 DF703 Default Configuration 2.1 DF703 Default Configuation... -
Page 5: Lorawan Band
AS923 923.2,923.4 923.2,923.4 923.2 (915-928MHz) 3 DF703 Sensor Function Description 3.1 Reporting rules The DF703device will report data in the following two cases, 1) Periodic upload time: report the reading of the moment at the periodic report interval. 2) Trigger reporting: The device will detect all states, such as full/empty, fire, fall, battery status, etc., During the periodic detection interval. -
Page 6: Fire Alarm Function
30cm, the garbage bin is considered to be full. When the distance is greater than 30cm, the trash can is considered empty. Figure 3.1 DF703 Height detection Cardboard items can be used for simulation testing before actual installation. -
Page 7: Fall Detection Function
3.4 Fall detection function tep 1: After fixing the device on the trash can, please restart the device. After the restart, the current position will be learned. The position is considered to be the standard position of the trash can, the angle is 0°, and it is not fall. Step 2: When the trash bin is tilted and cut at an angle greater than 30°, the device will report the alarm data, indicating that the trash can has been inverted;... -
Page 8: Df703 Hardware Interface
Figure 3.2 DF703 latitude and longitude information Note: (1) Why can't get the location information? Keep the device completely open, restart the device with a magnet, check the data results multiple times, or view the positioning information directly through the serial port. -
Page 9: Connect To Power
UART interface Power socket Figure4.1 5 Connect to Power Please first connect the battery, as following picture: 1 If you connect the power, but not reporting, please try to restart sensor by magnet. Note: 2 If you need to restart sensor, please use magnet. DONOT unplug/plug battery frequently. -
Page 10: Reboot Sensor By Magnet
Move the magnet around the probe side, then remove the magnet. If the device is successfully rebooted, the device will report a data. 7 Installation 7.1 DF703 Sensor housing installation When installing the upper and lower shells of the device, please pay attention to the following: 1. -
Page 11: Df703 Sensor Installation
Note: 1. Place the DF703 device in the center of the top cover of the trash bin and make the device vertically downward. If the device is tilted or too close to the side of the trash bin, it will affect the accuracy of distance detection. - Page 12 Beijing Dingtek Technology Corp., Ltd. Tel:86-10-64718863,64753700 http://www.dingtek.com E-mail: service@dingtek.com Room A209, Flounder Business Park, Shunbai Road 12, Chaoyang District, Beijing, China 100022 Page...
