Summary of Contents for aquamano e

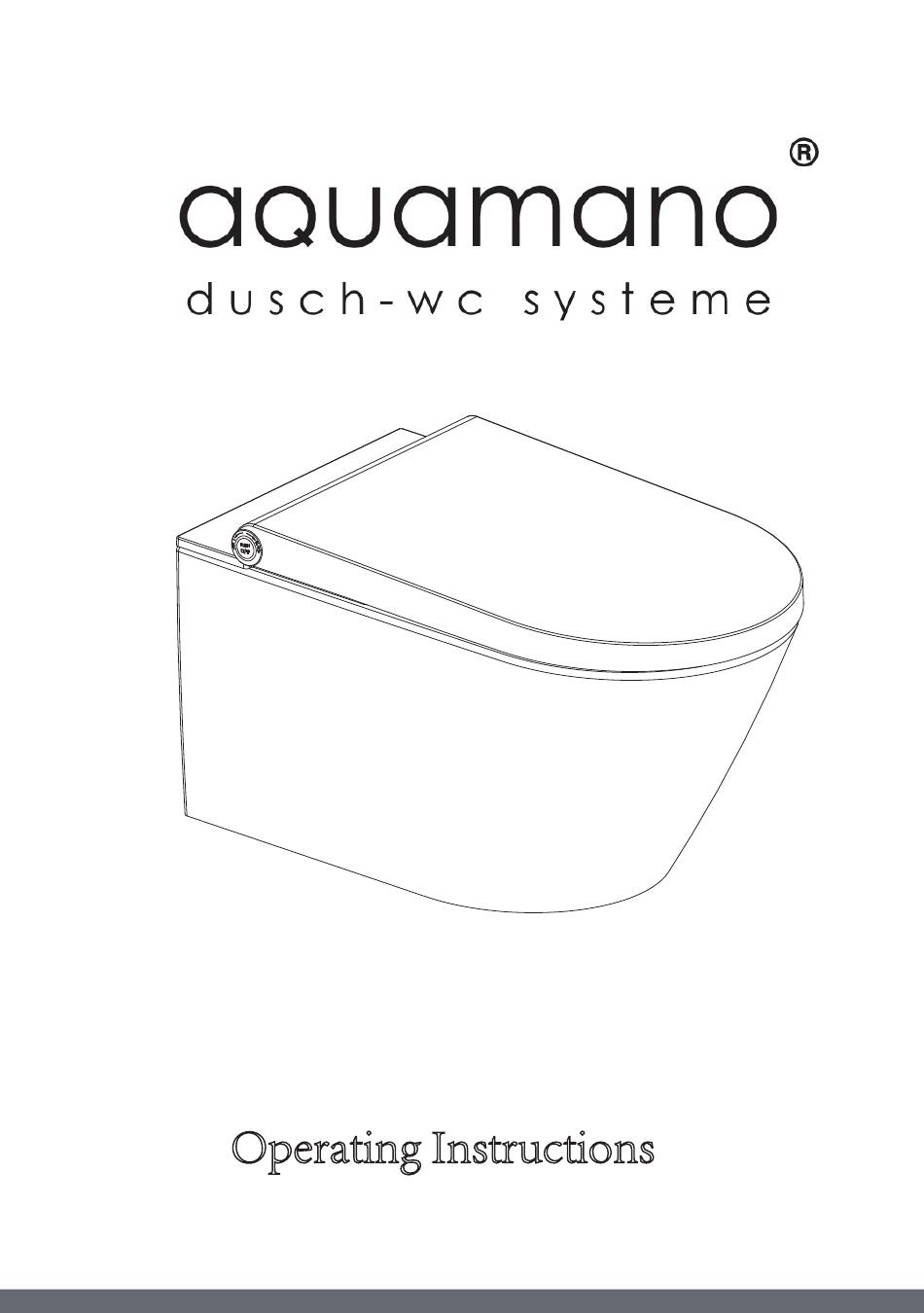

- Page 1 Operating Instructions...
-
Page 2: Explanation Of Symbols
Safety precautions Explanation of symbols Refers to potentially dangerous situation that may cause serious injury or death . DANGER Refers to potentially dangerous situation that may cause injury or property losses . NOTICE Refers to forbidded to do . FORBID Refers to abide by the rules . - Page 3 Safety precautions 1. Do not insert or remove power plug with wet hands . FORBID Otherwise there is a risk of electric shock . 2. Do not damage the power cord and plug. Otherwise there is a risk of electric shock, short- circuit and fire. 3.
- Page 4 Technical Secification Model aquamano® e Technical upgrade will be edited into the new version instruction without additional notice. Please follow the real if it is different from the nominal in shape ,color and accessories. • •...
-
Page 5: Technical Drawing
Technical Drawing... - Page 6 Overview Cover Seat detector Dryer Breathing lamp Night light Knob Rear wash Deodoriser Female wash Seat Toilet The pictures of this intruction is for reference only . Please subject to the actual poduct .
- Page 7 Remote Control Female wash Rear wash Stop Dryer Massage Decrease Increase Adjust flow Adjust position Air temperature Water temperature Night light Adjust temperature User 1 Deodoriser User 2 Two batteries (1.5V LR03/AAA) 1. Before using, the remoter requires 2 batteries (type 1.5V LR3/AAA) 2.
- Page 8 Rear wash /Female wash Be seated ● Press the "Wash" button on the remote control then it start to wash. It will stop after 3 minutes . You can stop washing before this by pressing the "Stop" button. Rear wash Female wash You can operate by rotating the knob .
- Page 9 In the process of Rear or Female washing ● Repeatly press the "Massage" button on the remoter until to choose your desired spray mode Oscillating : when one indicator light is on Pulsating : when two indicator lights are on Oscillating + Pulsating : when three indicator lights are on ●...
- Page 10 Adjusting the n Default 5 th ● In the process of Rear or Female washing ● Press the" adjust position " button on the remote control, then press the "Decrease" or " Increase " button to adjust the nozzle position forward or backward.
- Page 11 ● Always on mode for the night light by default Repeatly press the " Night light " button on the remote control to choose the different mode . Close mode : when one indicator light is on Always on mode : when two indicator lights are on Smart mode : when three indicator lights are on Open the cover and seat then rotate the knob in the anticlockwise direction.
-
Page 12: Sound Setting
Breathing lamp setting ● Always on by default Open the cover and be seated , without washing and drying , then always press the knob for 6S .The breathing lamp will be lighted off . It will be lighted up again when pressing the knob for 6S . - Page 13 Do not use the cleaning agents of strong acid and alkali To clean the E-bidet , do not use the hard brush .e.g. toilet brush nylon brush FORBID To clean the WC ceramic appliance ,do not use the matal brush...
-
Page 14: Replacing The Filter
● The nozzle will be cleaned before washing and after washing . The operation of manual cleaning is as follows Open the cover and seat then rotate the knob in the clockwise direction .Then the nozzle will extend with cleaning water. It will return after 5 minutes or press the "... - Page 15 Drain the water tank 1. The water and power must be cut before you disassemble the E-Bidet 2. Do not invert or tilt it before you finish draining the water tank 1.Hold the plug with the tipper , turn to "open"...
- Page 16 The remote control requires 2 batteries (type 1.5V LR3/AAA). ● When the user lights flash continuously , please replace the batteries in time. ● 1. Non-rechargeable batteries are not to be recharged 2. Rechargeable batteries are to be removed from the appliance before being charged 3.
- Page 17 Problem Potential cause Suggested action The power supply may not be opened Please turn on the power The water supply may not be opened Please open the inlet water valve,or check if there is a water outage The filter may be blocked Please replace a new filter .It has a service life of approx.
- Page 18 Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact you local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. When replacing old appliances with new ones, the retailer is legally obligated to take back your old appliance for disposals at least free of charge.
