AUSLIFT DHE-LG800 Instruction Manual

Geared type drum lifter
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

MODEL DHE-LG800
GEARED TYPE DRUM LIFTER
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DHE-LG800 and is the answer not in the manual?

Questions and answers

Summary of Contents for AUSLIFT DHE-LG800

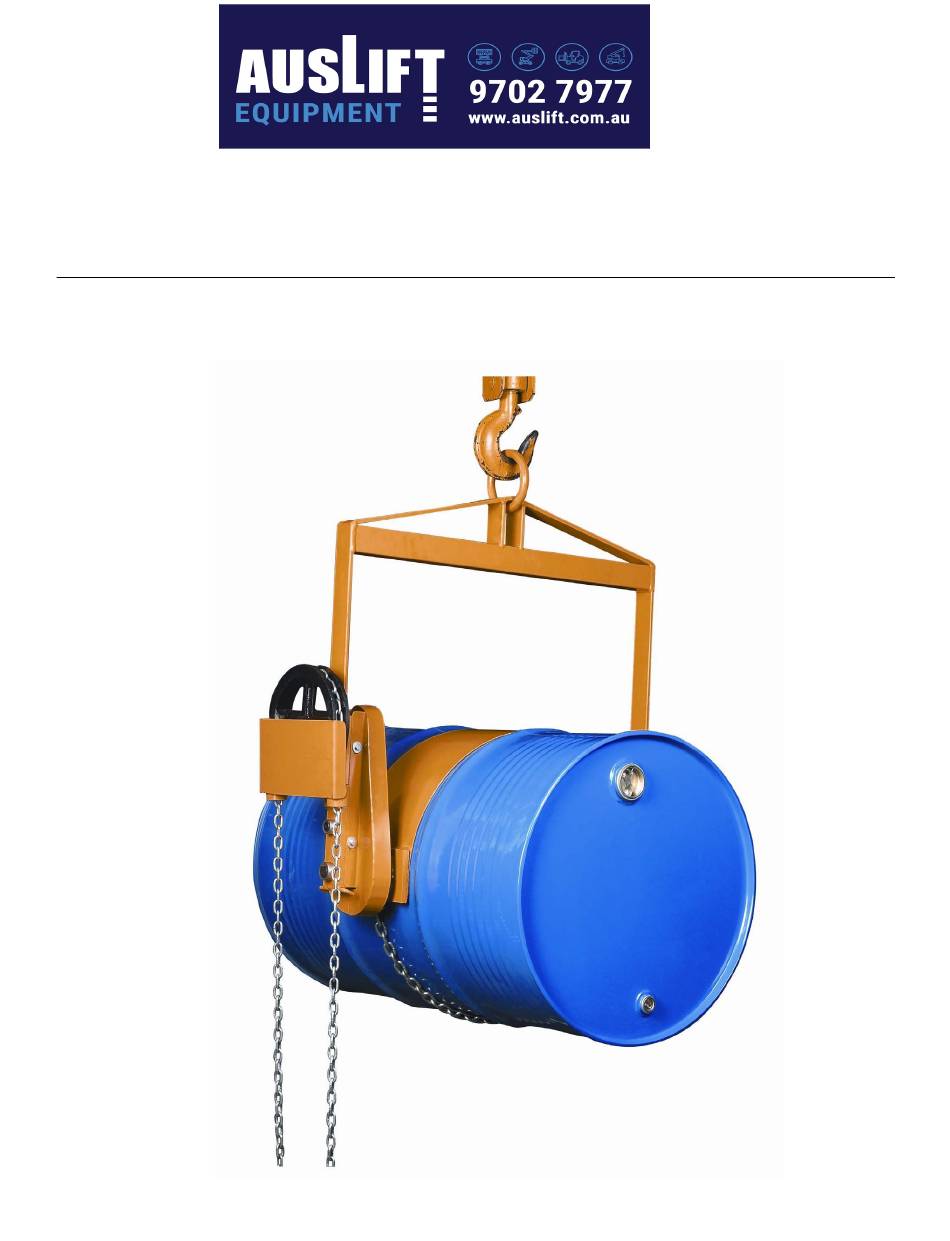

  • Page 1 MODEL DHE-LG800 GEARED TYPE DRUM LIFTER Instruction Manual...
  • Page 2 DHE Materials Handling Equipment Geared Type Drum Lifter Instruction Manual Auslift Equipment 2/2-4 Souffi Place Dandenong South VIC 3175 Phone: 03 9702 7977 Website: www.auslift.com.au...
  • Page 3 Table of Contents 1.0: FIGURE AND DIMENSION ................................3 1.1 : FIGURE ..........................................3 2.0: TECHNICAL SPECIFICATION ................................ 4 2.1: OPERATING PRODEDURE ................................4 3.0: WARNING ....................................5...
  • Page 4 INSTRUCTION MANUAL • The DHE-LG800 is a geared drum lifter/dispenser suitable for 210 Litre closed steel drums. • One-person Operation. • Simply attach to an overhead crane or hoist, attach saddle around drum, and raise. • Geared chain control requires minimum effort.
  • Page 5 2.0: Technical Specification Model DHE-LG800 Lifting Capacity 360kgs Overall Dimensions 940mm Length x 838mm Width x 225mm High Net Weight 38kgs 2.1 : Operating Procedure Enclose the drum lifter to hook, and ensure it is installed accurately, hard and safely.
  • Page 6 3.0 : Warning • Do not overload the drum lifter beyond its rated capacity, drum must be clamped at the centre position to avoid causing damage. • Do not stand under the drum lifter or when it is moving. INSTRUCTION MANUAL...
