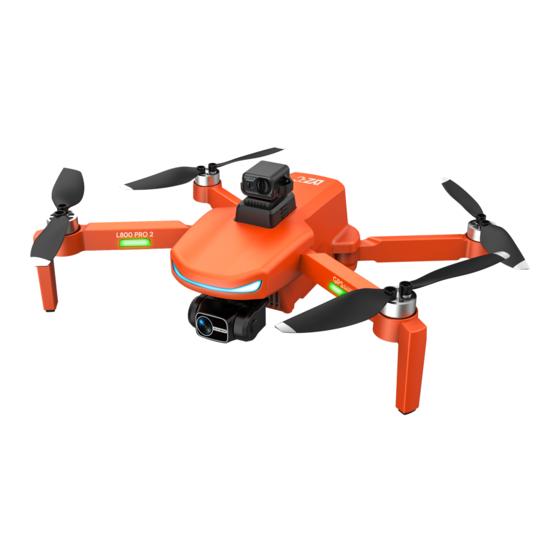

3-AXIS GIMBAL GPS AERIAL DRONE
OPERATING INSTRUCTIONS
Safety precautions:
1 in order to ensure the electromagnetic environment requirements of aviation radio station (station), it is prohibited to use various model
remote controllers in the area with the center point of airport runway as the center point and the radius of 5000M. During the period
when the relevant departments of the state issue radio control orders and regional areas, the use of model remote controllers shall be
stopped as required. Please fly in warm, clear, windless weather. Do not fly in severe weather conditions such as overheating,
overheating, strong wind, rainstorm, etc. Please choose indoor or outdoor open area, and keep a safe distance from people, pets,
empty overhead wires and other obstacles. Make sure that no other uses the same frequency. Do not let the aircraft out of sight.
2 after the aircraft is started, please do not contact the high-speed rotating part of the aircraft and keep a distance from the high-speed
rotating propeller to avoid the risk of strangulation. (Including gears, rotors, etc.)
4.During and after the use of the aircraft, the battery and motor will generate high temperature. Please do not touch it to avoid the risk
of scalding.
4 do not look directly at the light beam of the LED to avoid affecting the eyes.
Warm Tip: It is suggested that beginners practice flying at low altitude in an open and unmanned place for
about 3 days, and then fly to high altitude after being familiar with flying
AGE:14+
Advertisement
Summary of Contents for LYZRC L800 PRO 2
- Page 1 AGE:14+ 3-AXIS GIMBAL GPS AERIAL DRONE OPERATING INSTRUCTIONS Safety precautions: 1 in order to ensure the electromagnetic environment requirements of aviation radio station (station), it is prohibited to use various model remote controllers in the area with the center point of airport runway as the center point and the radius of 5000M. During the period when the relevant departments of the state issue radio control orders and regional areas, the use of model remote controllers shall be stopped as required.
-
Page 2: Pre-Flight Preparation
Pre-flight preparation flight environment indoor: Spacious space away from obstacles, Outdoor: Sunny, windy and sunny weather crowds or pets are preferred. are preferred. Please keep the UAV in line of sight and away Do not fly in extreme environments, such as from obstacles, high-voltage cables, trees and heat, cold, strong wind or heavy rain. - Page 3 Remote control function key and name Description: Mobile phone rack Aerial One key return Geomagnetic calibration GPS switch Gyroscope calibration Left joystick Right control lever Unlock Power switch Power indicator Headless indicator Liquid crystal display GPS indicator Charging indicator Note: When the satellite can not be found indoors or outdoors, if the GPS needs to be turned off to start the aircraft, press and hold the GPS key for 3 seconds, the remote controller "drops"...
- Page 4 Instructions for charging controller: Charging Power Adapter socket (Not included) Charging It is recommended to use 5V indicator 1-2A power adapter for charging. Insert the charging plug of the charging wire into the charging socket of the remote controller, and then connect the USB charger plug to the computer or mobile phone charger for charging.
- Page 5 UAV flight tutorial: 1. UAV frequency and gimbal calibration Put the drone on the horizontal ground and turn on the power, then turn on the remote control power, at this time the lights on the aircraft flashes quickly, the lights on the remote control flashes. Then push up the left joystick of the remote control and pull down, and the remote control "Di"...
- Page 6 Manipulation method When the left lever (accelerator) is pushed upwards, the speed of the main wind blade increases and the aircraft goes up. When the left lever (accelerator) is pushed downward, the speed of the main wind blade slows down and the aircraft descends When the left lever (rudder) is pushed to the left, the aircraft head turns to the left, when pushed to...
- Page 7 5.One-press for return When the drone is flying in the air, press One-press for return End point this function button on the remote control (Figure 5), it will automatically rise or fall to a height of 50 meters, return straight and land to the take-off location.
- Page 8 Resolution guide for common problems Problems Causes Resolutions Drone indicator is flashing 1. Unsuccessful Drone 1. Move the Drone to an empty place while not respond when GPS souxing to perform souxing again operating 2. Low power of Drone 2. Charging the battery Drone blades turn but 1.
Need help?
Do you have a question about the L800 PRO 2 and is the answer not in the manual?
Questions and answers
Hello how i can install camera software and WIFI software for my lyzrc l800 pro 2 when i try to connect to WIFI the WIFI not showing on my phone
The context does not provide specific instructions for installing camera or WiFi software for the LYZRC L800 Pro2. However, drones like this typically require a companion mobile app to connect to the camera via WiFi.
If the WiFi is not showing on your phone, possible reasons include:
1. The drone is not powered on or the battery is not charged.
2. The drone's WiFi signal is not broadcasting.
3. Your phone's WiFi is not enabled or is experiencing issues.
4. The drone may take a few seconds after powering on to start broadcasting WiFi.
5. Interference from other WiFi networks or devices nearby.
Try restarting the drone and your phone, ensure the battery is fully charged, and wait briefly after turning on the drone to see if the WiFi appears. Also, check the user manual for the recommended app and instructions.
This answer is automatically generated
