Page 3: Description & Features

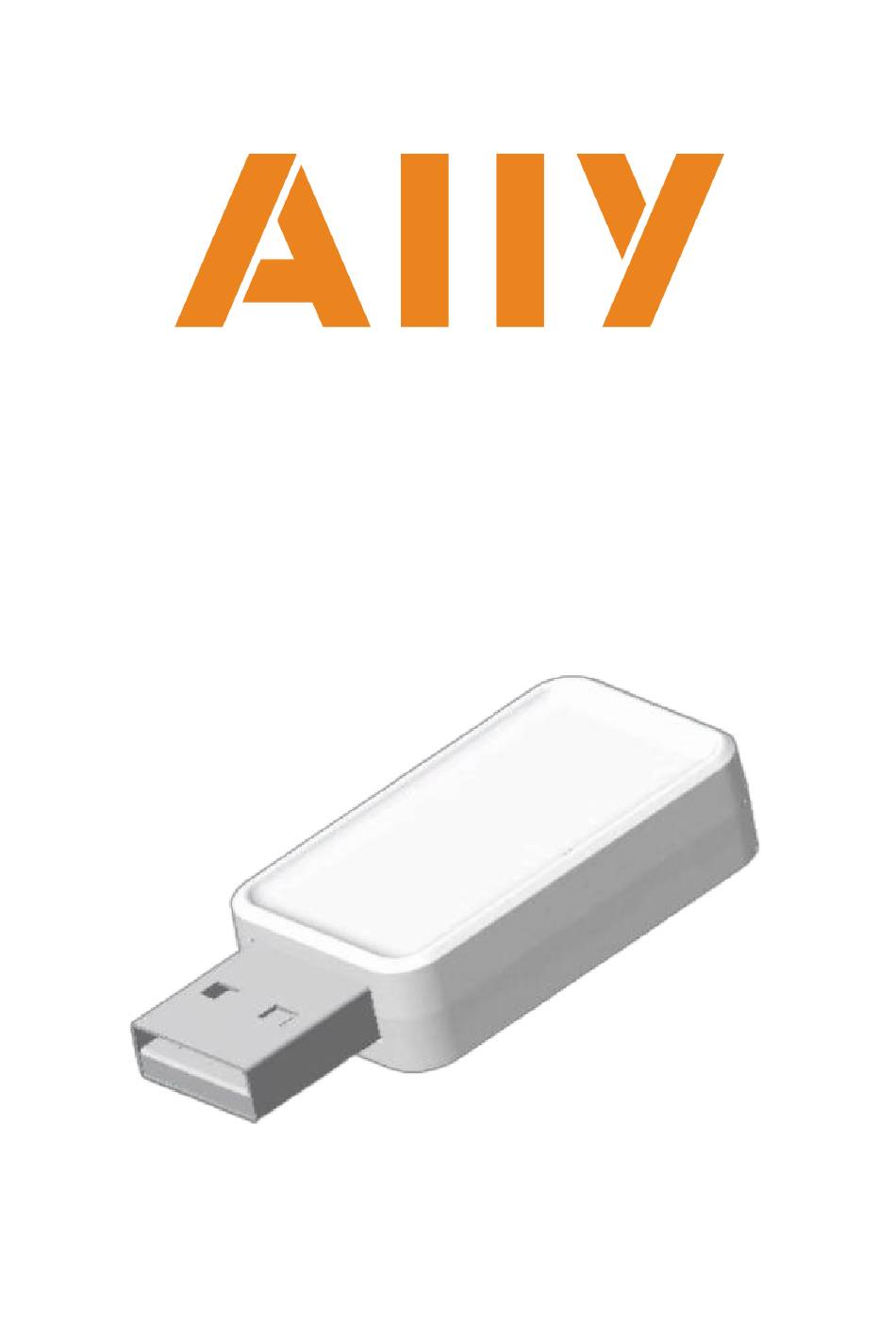

Z-Wave devices through the Z-Wave Command Classes, making your computer the heart of your Z-Wave network. Z-Stick Mini easily enables you to create your own Z-Wave gateway that is locally or remotely hosted with a PC or single- board computers, such as Beagle... -
Page 4: Product Specifications
Product Specifications General Specifications ERF32ZG14 Zen Gecko SoC ERF32ZG23 Zen Gecko SoC Potocal Z-Wave Library Z-Wave Library USB Powered 5.00 ± 0.25 V 5.00 ± 0.25 V RF Transmit current 22 mA (typ.) 12 mA (typ.) RF Receive current 20 mA (typ.) 10 mA (typ.) RF Transmit Power Up to +13 dBm (max.) -
Page 5: Block Diagram
Block Diagram ERF32ZG14 Zen Gecko SoC ERF32ZG23 Zen Gecko SoC... -
Page 6: Quick Start Up
Quick Start Up Here is a Quick Start Up guide to get Z-stick Mini to work with the Z-Wave PC Controller. The Z-Wave PC Controller is a PC application software tool that enables communications with Z-Wave nodes, such as switches and sensors. - Page 7 3. Click on Network Management.
- Page 8 4. Z-Stick Mini is detected and appears as [S2] Pc Controller. The bottom panel displays that the Z-Wave Command Class is supported by Z-Stick Mini.
- Page 9 FCC Warning This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any inte rference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
