Summary of Contents for alocity F3D100

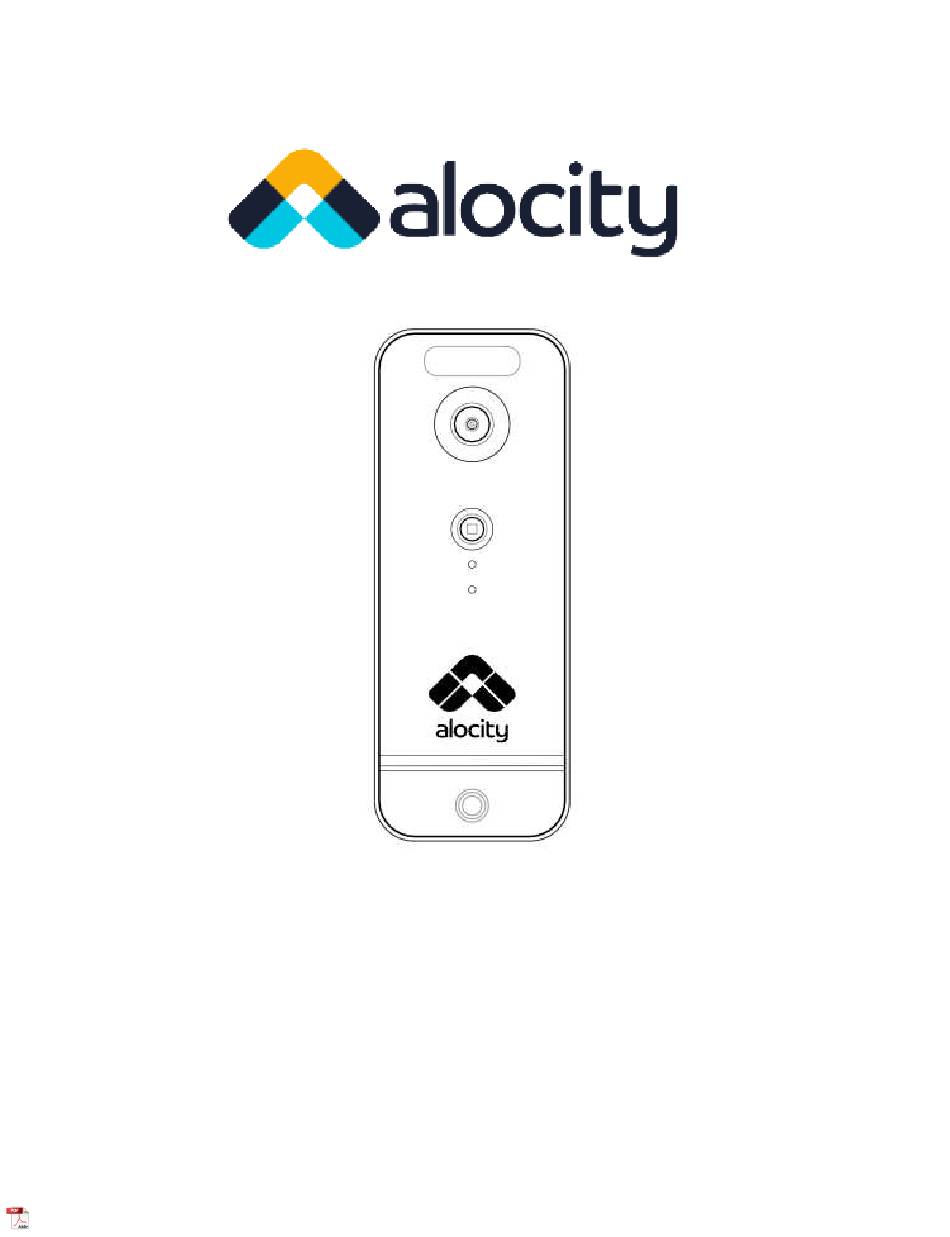

- Page 1 FCC ID: P27F3D100 F3D100 All-in-one Access Control Device...
- Page 2 ßown is blocked, and the door lock will open. If the power supply is cut o" due to a power failure or an external factor, the door will remain open. NC -Burgundy/Yellow F3D100 Pigtail COM - Brown/Red Connect the two NC wires together to the + wire on the lock.
- Page 3 2A current to ßow. Connect Power over Ethernet Cable (PoE) The F3D100 uses 802.3at (PoE+).! Connect a Cat5/6 ethernet cable to the RJ45 located on the pigtail of the F3D100.! To setup network connection use the Alocity setup app.!
- Page 4 Wiegand Input/Output Wiring Diagram Wiegand Green / Black Output Wiegand 0 Orange / Balck Output Wiegand 1 Burgundy / Blue Input Wiegand 0 Input Wiegand 1 Brown / White Ground Black OSDP Wiring Diagram OSDP / RS485 Orange /White RS485 A Green / White RS485B Black...
- Page 5 Max number of face/templates enrolled shall not exceed 10,000! Ethernet/PoE+ and Wiegand Cable to Reader and Panel are Class II/Power Limited ! Equipment not intended for connection to telephone, or outside wiring as covered by Article 800 in the National Electrical Code, NFPA 70! This device complies with part 15 of the FCC Rules.
