AWM Pinnacle User Manual

Pinnacle Workstations.
User Guide

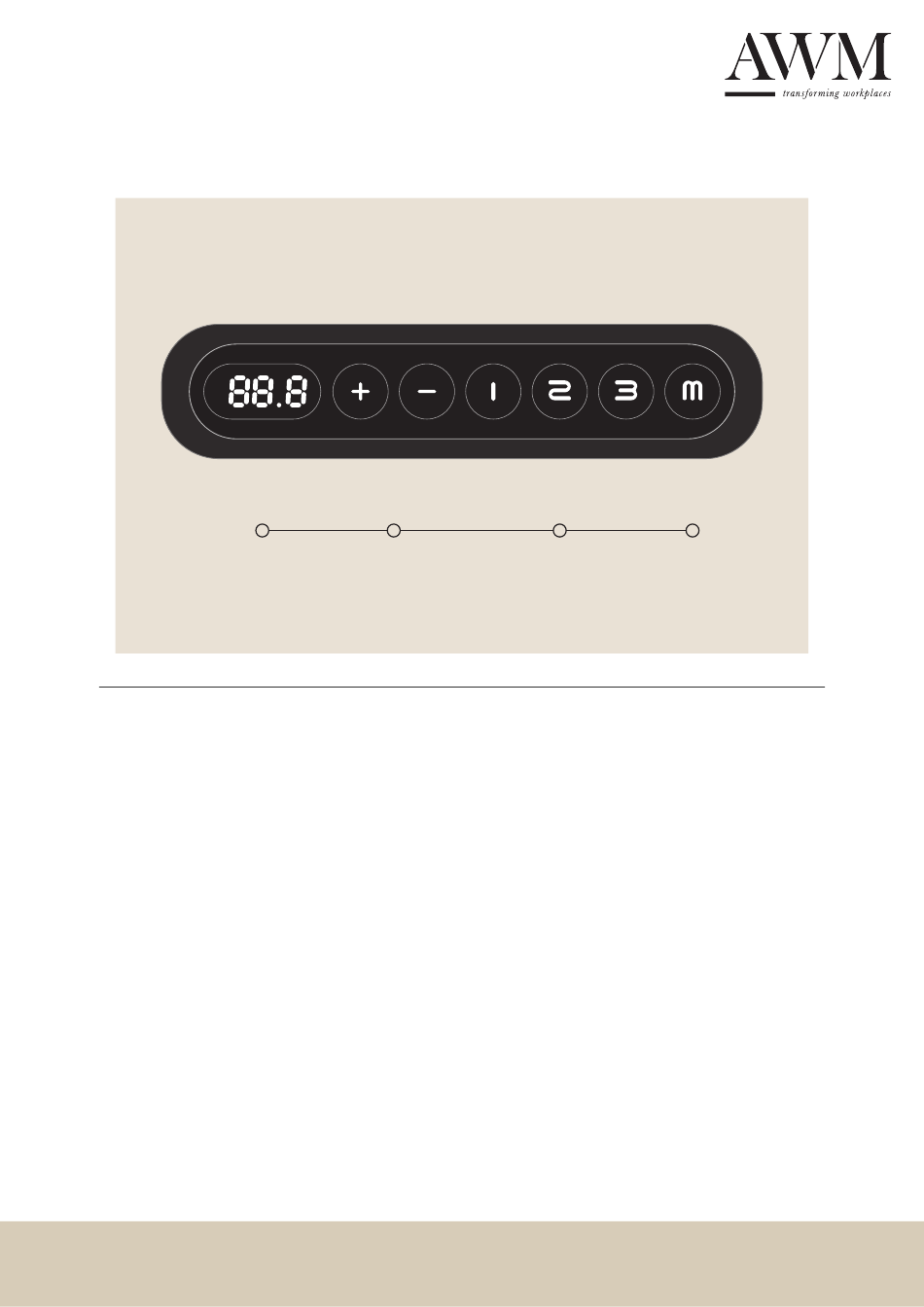

Display
Adjust
The Adjust buttons allow you to control the
desktop height up or down by pressing and
holding the '+' or '-' buttons respectively.
Memory Set

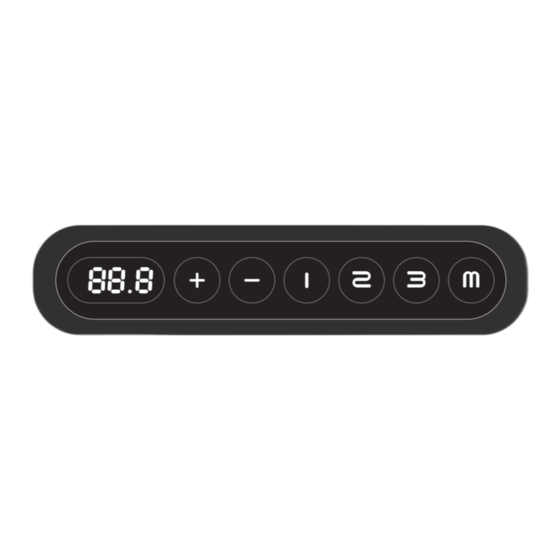

The Pinnacle handset allows you to set and
save three height positions based on your
preference. To save a position first raise or
lower the desk to the desired height. Press the
Memory Set - 'M' - button followed by either
the '1', '2' or '3' buttons to allocate the height
to that saved position number.
Please note that saved positions can not
be deleted, they can only be overridden by
allocating a new height to that saved position.
Saved Positions
With height positions saved, you can then
simply press the desired Saved Position button
and the desk will automatically raise or lower
itself to that respective height.
awm.net.au
Adjust Saved Positions
Locking the Handset
Press and hold the 'M' button for approximately
eight seconds until the discplay shows 'S-'
followed by 'LOC'.
To unlock the handset press and hold the 'M'
button for a further eight seconds until the
display reverts to showing the desk height.
Resetting the Handset
Press and hold the down button for
approximately five seconds until the display
reads 'RST'. Press and hold the down button
again until
rising again and stopping.
Memory Set
the desk lowers in height before
