Summary of Contents for AUSTEM ESS 3kW

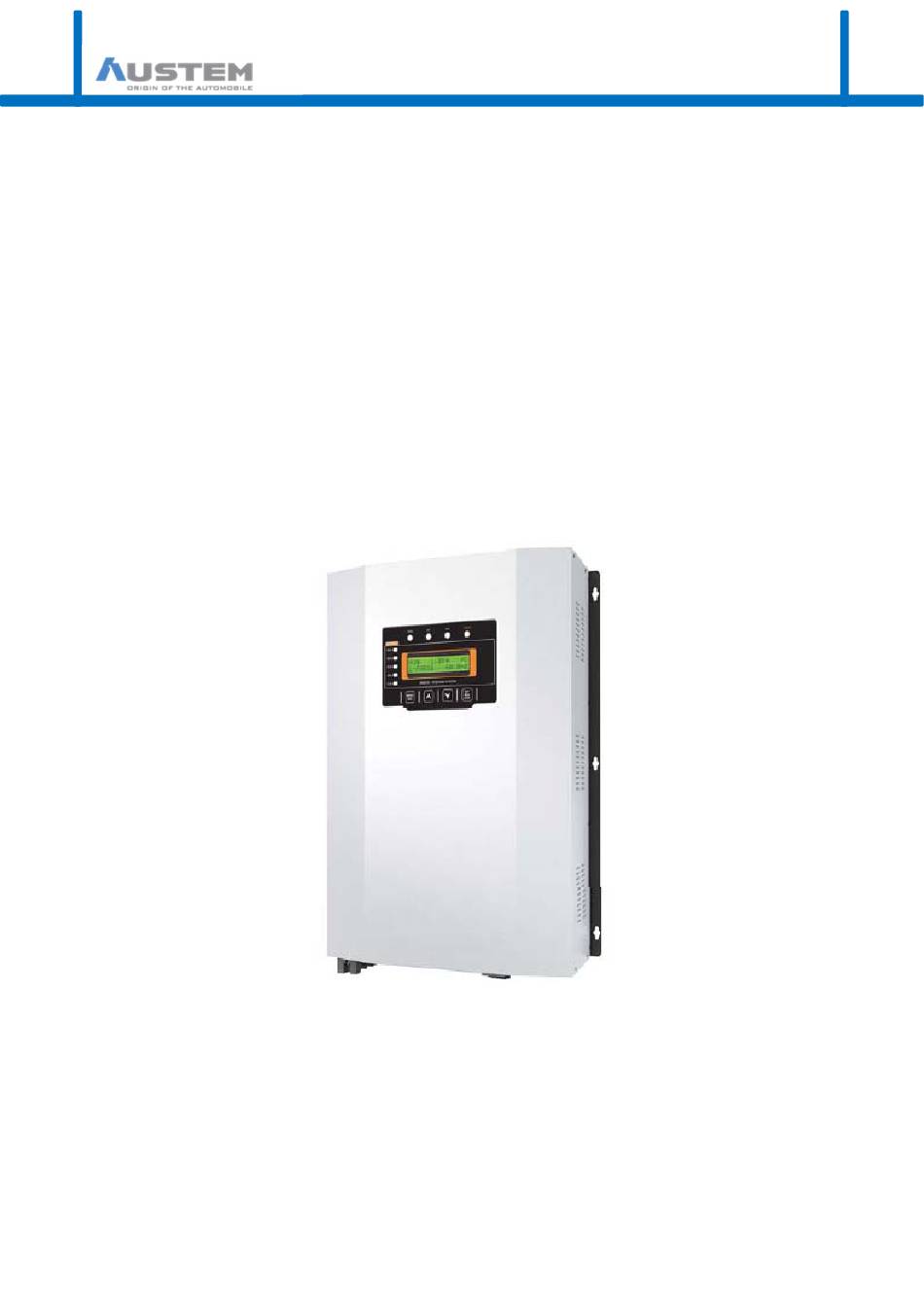

- Page 1 Document : ESS-Model000-20180514 INSTALLATION & OPERATION MANUAL ( 3kW )
-
Page 2: Table Of Contents
Contents 1. Safety Instructions 1.1 General Safety Information 1.2 Important Safety Information 2. Product 2.1 Model classification code 2.2 Product features 2.3 Dimensions 3. Installation and Wiring 3.1 Moving a product 3.2 Installation 3.3 Repair product 3.4 Wiring 3.5 Terminal block shape 4. - Page 3 Installation Manual Be sure to read this manual and other references thoroughly before installation.
-
Page 4: Safety Instructions
1. Safety Instructions ◐ Be sure to read this manual and other references thoroughly before installing, operating and repairing. ◐ Be sure to acquire all knowledge of machine, safety information and precautions. ◐ The following warning symbol used in the manual recommends your attention in order to prevent personal injuries or dangerous situations. -
Page 5: Product
2. Product It is important to familiarize yourself with the functions and operation of the product through the manual in order to use the device correctly. Incorrect handling can cause damage to the product or accidents. Please read this manual carefully before use. -
Page 6: Installation And Wiring
3. Installation and wiring 3.1 Moving a product It is important to lock the cover before moving. Incorrect handling can cause damage to the product or accidents. Caution 3.2 Installation [Place of installation] Information to keep in mind when installing the product. •... -
Page 7: Repair Product
3.3 Repair product • In order to repair, all covers must be fastened. Follow the instructions when repairing the product. Incorrect handling can cause damage to the inverter and accidents. • It should be tilted horizontally or vertically up to 15° within the wall, mount the floor with 6 fixing bolts on the hard surface. - Page 8 Connect with (-) of PV cell PV - Connect with (+) of battery BATTERY + Connect with (-) of battery BATTERY - Connect with High of Grid GRID H Connect with Low of Grid GRID L Connect with High of Load LOAD H Connect with Low of Load LOAD L...
- Page 9 Operation Control Be sure to read this manual and other references thoroughly before installation.
-
Page 10: Operation
4. Operation 4.1 KEYPAD ◐ All functions are composed of software using DSP Chip, and system related variables are set with KEYPAD. Type Key function 1. Enter or exit to menu 2. Move from the submenu to the upper menu 3. - Page 11 ◐ LCD display • Display can be switched by UP / DOWN key. • LCD 2-LINE 16 CHARACTER, the first line shows the operation status and generated power, and the other shows various internal variable values. • The display frame (A, 1) of LCD shows RUN / STOP which is the operation status, (B, 1) is current generation power, (C, 1) is RD / PF, Discharge status Indicates CHA / DCH.
-
Page 12: Functional Group
[ Screen Frame 16] Battery Charge status, Internal temperature * It may change without notice to improve quality. 4.2 Functional group ◐ Use the four keys to set the parameter setting value. Menu Menu Default(Setting) Remarks Level 1 Level 2 3 kW 5 kW Max chrg Vtg... - Page 13 Default(Setting) Menu Menu Remarks Level 1 Level 2 3 kW 5 kW OL count Level 110[%] 110[%] Out Vtg offset 100[%] 100[%] Operation Antilsland Gain 100[%] 100[%] Bat Dchrg Rate 100[%] 100[%] Max Inv CD Rate 100[%] 100[%] Auto / manual Auto Run Auto Run Auto / Manual...
-
Page 14: Detail Of Function
4.3 Detail of function ◐ MPPT(Maximum Power Point Tracking) control and operation method • The output characteristics of the PV cell change according to the surrounding temperature, humidity, and the amount of sunlight radiation. So that, PV cell operates with the MPPT control, and the PV cell starts the MPPT DC-DC converter at the PV power rated voltage. -
Page 15: System Protection Function
• If a conversion gain is not set correctly when inputting or outputting numerical values from Analog data, an error will occur. At this time, it is necessary to readjust the conversion gain. • The current control gain can adjust the amount of current control by adjusting the feedback amount of line current control. -
Page 16: Basic Operation And Stop
4.5 Basic operation and stop ◐ Operation 1. Check, there is no abnormality in the entire wiring. Make sure that the polarity of PV array input and battery input is correct. The system may be damaged at the time of incorrect connection. If there is no abnormality, switch on the circuit breaker on PV input side and battery input side to enable KEYPAD. - Page 17 Menu ► Operation set ► Max chrg cur ► 30.0A(Current value setting) Menu ► Etc. set ► sch chrg run ► 21:00 Menu ► Etc. set ► sch Dchrg stop ► 06:00 • Set charging time and amount of charge Menu ►...
-
Page 18: Product Specification
5. Product specification 5.1 Product specification Classification Characteristics and Specifications Capacity(kW) MPPT voltage range 100~400 Vdc Maximum input voltage 500 Vdc Input control method MPPT(Maximum Power Point Tracking) control Maximum input current Voltage Battery Maximum input current Rated voltage 100V / 200V / 220V / 230V / 240V Rated frequency 50Hz / 60Hz Number of phase... -
Page 19: Inspection And Caution
6. Inspection and caution As an electronic device equipped with advanced semiconductor elements, ESS has the possibility of breakdown due to the influence of surroundings such as temperature, humidity and vibration and parts gradually aging year by year. In order to prevent this, always inspect it. 6.1 Inspection •... -
Page 20: Quality Assurance
7. Quality assurance ◐ Quality assurance Warranty SERIAL NO. Product name Model name Date of purchase Warranty period 3 years from date of purchase Name Address. Customer Tel. Company Address. Vendors Tel. ◐ Please fill in the blank when you sell the product.
