Summary of Contents for Asian Pro APX 1502

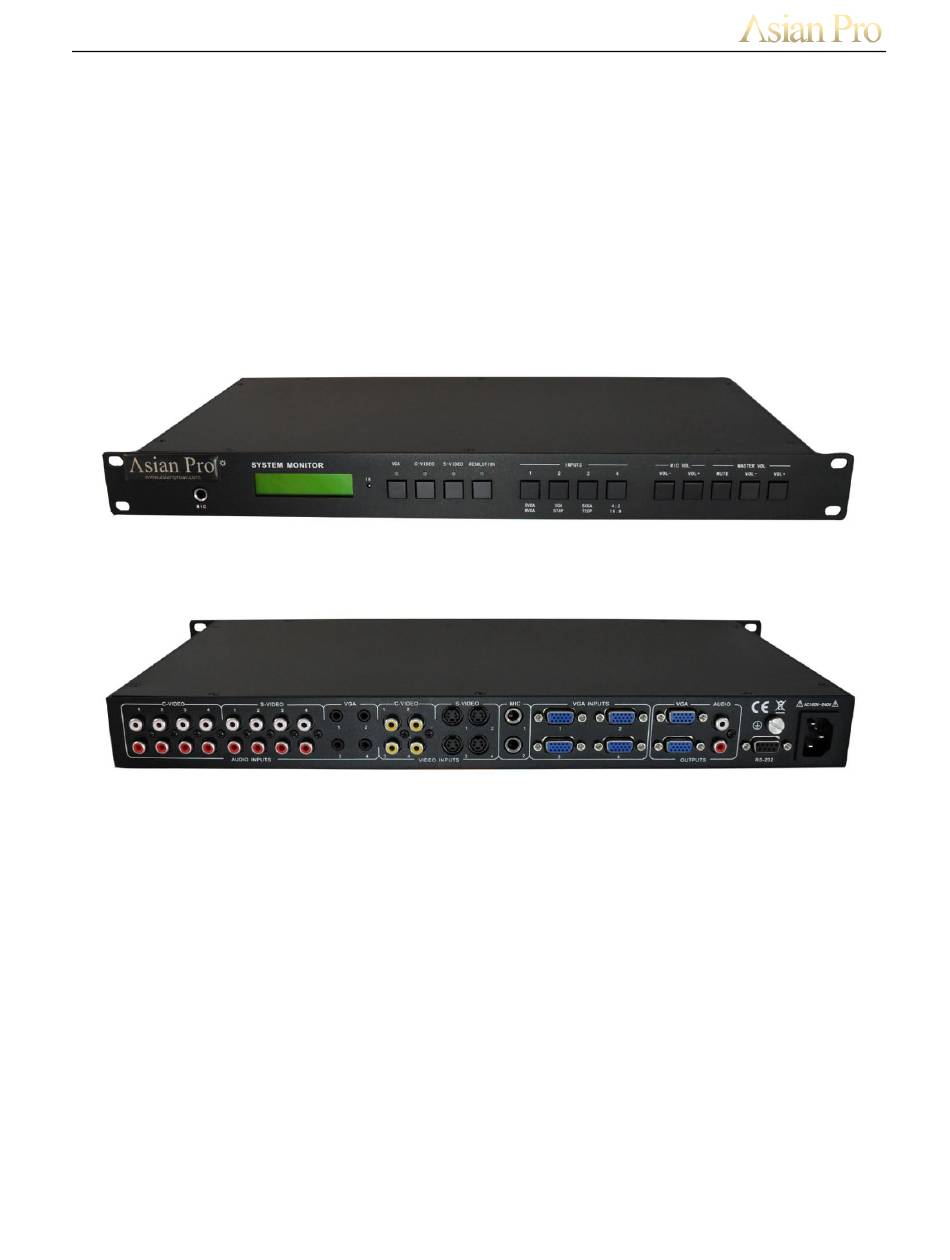

- Page 1 APX 1502 Presentation Video Scaler Asian Pro AV APX 1502 Multiple Input Video Scaler USER MANUAL...
- Page 2 APX 1502 Presentation Video Scaler Table of Contents Function ................................ 3 Front Panel Operation ........................... 3 IR Remote Control ............................4 RS232 control ..............................4 RS232 Protocol .............................. 5 Adjust Composite Video Settings ........................6 Adjust S-Video Settings ..........................6...
- Page 3 APX 1502 Presentation Video Scaler Function The APX 1502 is a multiple input video scaler with 4 composite, 4 S- Video and 4 VGA inputs, any, of which, can be switched audio follow video to a high resolution output(s). Video signals only can be scaled to digital signals with the following resolutions;...
- Page 4 IR Remote Control RS232 control The APX 1502 provides an RS232 control port on a DB9 female connector located on the rear panel. The scaler can be remotely controlled by computer or third party control systems using the Asian Pro RS232 protocol and parameters (see next page).
- Page 5 APX 1502 Presentation Video Scaler RS232 Protocol...
- Page 6 APX 1502 Presentation Video Scaler Adjust Composite Video Settings Press the C-VIDEO button for 3 seconds to enter the setting mode. Function 1 Brightness is adjusted using the parameter+ and parameter- Function 2 Contrast is adjusted using the parameter+ and parameter-...
Need help?
Do you have a question about the APX 1502 and is the answer not in the manual?
Questions and answers
