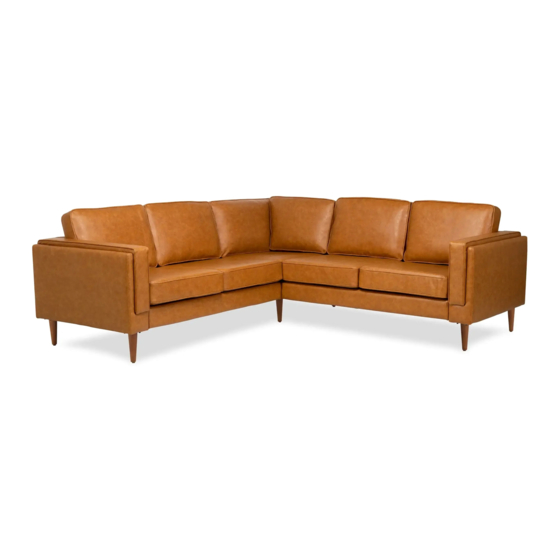

ALBANY PARK Corner Sectional Assembly Instructions

Download this manual

A C O Z Y H O M E B E G I N S H E R E

Cornerseat Assembly Instructions

Need help?

Do you have a question about the Corner Sectional and is the answer not in the manual?

Page 1 A C O Z Y H O M E B E G I N S H E R E Cornerseat Assembly Instructions...
Page 2 2 x Box 1 1 x Box 2 1 x Seat frame 1 x Back frame 2 x Seat Cushion 2x Back Cushion 2 x Armrest 1 xCorner Base 1 x Seat Cushion 2x Back Cushion Metal Leg 2 x Middle Leg 1 x Tool 32 x Screw 32 x Washer...
Page 3 Step 1 Step 2 Step 3 Assemble Middle Leg Assemble Metal Leg Assemble Wooden Leg Step 4 Pro Tip: Double check that the back (F) is properly aligned within the arm (I) brackets before pushing the back down firmly to lock. If the arm appears to be bow outward or does not appear to be fully secured, please repeat Step 2 until all 4 brackets are aligned properly, then push down firmly to lock! Be sure to check out our assembly video at albanypark.com.
Page 4 Step 5 Step 6 Assembly Complete Be sure to check out our assembly video at albanypark.com.
Page 5 albanypark.com...
