Summary of Contents for autoform CALIX NORDIC LOADER

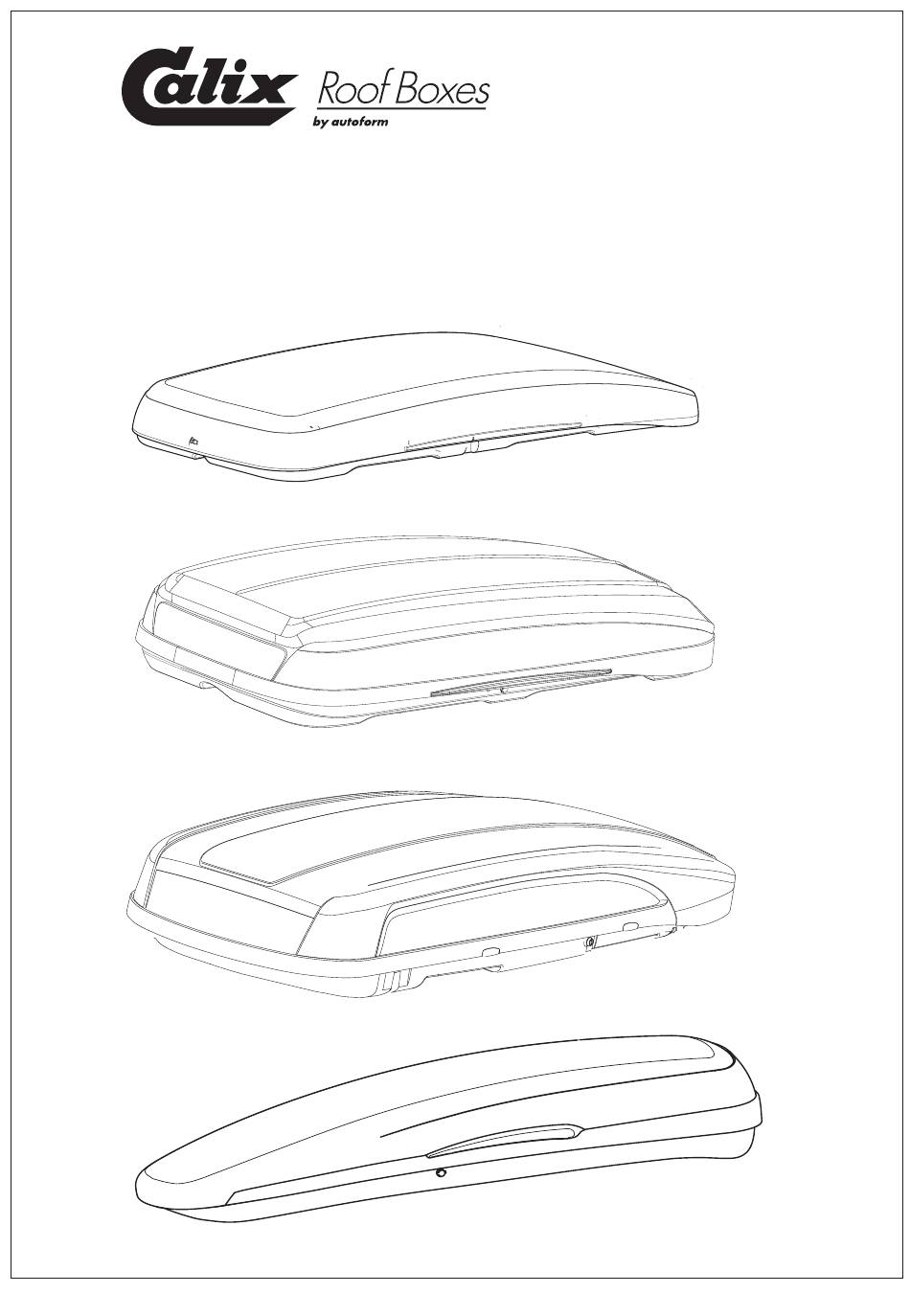

  • Page 1 INSTALLATION AND SAFETY INSTRUCTIONS INSTRUCTIONS POUR L´INSTALLATION ET LA SÉCURITÉ EINBAU- UND SICHERHEITSHINWIESE MONTERING- OCH SÄKERHETSINSTRUKTIONER CALIX NORDIC LOADER CALIX H22 / H20 / H18 CALIX M22 CALIX AERO LOADER...
  • Page 2: Included Parts

    INCLUDED PARTS...
  • Page 3 Dimensions in mm Model Nordic Loader 1100 1100 1100 1010 Aero Loader For dimensions Aero Loader please nd 1b page 4...
  • Page 4 Installation only applicable for model Aero Loader Installation only applicable for model Aero Loader Dimensions in mm Model Aero Loader 1100...
  • Page 6 INSTALLING Compatible with Roof Rack dimensions: max 32 mm min 15 mm max 100 mm min 25 mm Unlock. Open by rotating the knob until the orange indicator is in unlocked position. Start position. Push the hooks apart.
  • Page 7 Push together until both hooks meet roofrack.
  • Page 8 Turn clockwise until “click”. Ready to go. LOADING Important! All load/items are to be fastened with the loading straps. 75 kg...
  • Page 9 Check drivers manual for maximum Nordic Loader 30 kg permitted roof load of your car. 26 kg 22 kg < max 9 1 g k + 75 kg 23 kg Aero Loader 20 kg The roof box is water resistant, not completely water proof.
  • Page 10 SAFETY Please consider difference in car behavior (crosswinds, cornering and br a king) Place sticker on Page 3 350 mm dashboard km/h Check! 4x/year Check! Check that all Quick Grips are rmly mounted before driving. Repeat after rst 10 km and 4x/year: Turn clockwise until “click”...
  • Page 11 NOTE Be aware of the changed height of the car with roof box mounted NOTE Check before you start driving that the box is properly locked and the key is removed NOTE If the car is washed in automatic washing remove the roof box from the car NOTE Please note that wind noise may occur when...
  • Page 12 MY19 med QG2-03 Autoform AB Box 155 SE-782 24 Malung Sweden Phone: +46(0)280-59 33 00 E-mail: info@autoform.se autoform.se For energy saving and safety reasons, remove roof box and roof racks when not in use.

This manual is also suitable for:

Calix h22Calix h20Calix h18Calix m22Calix aero loader
