Summary of Contents for AMIGOS QA212i

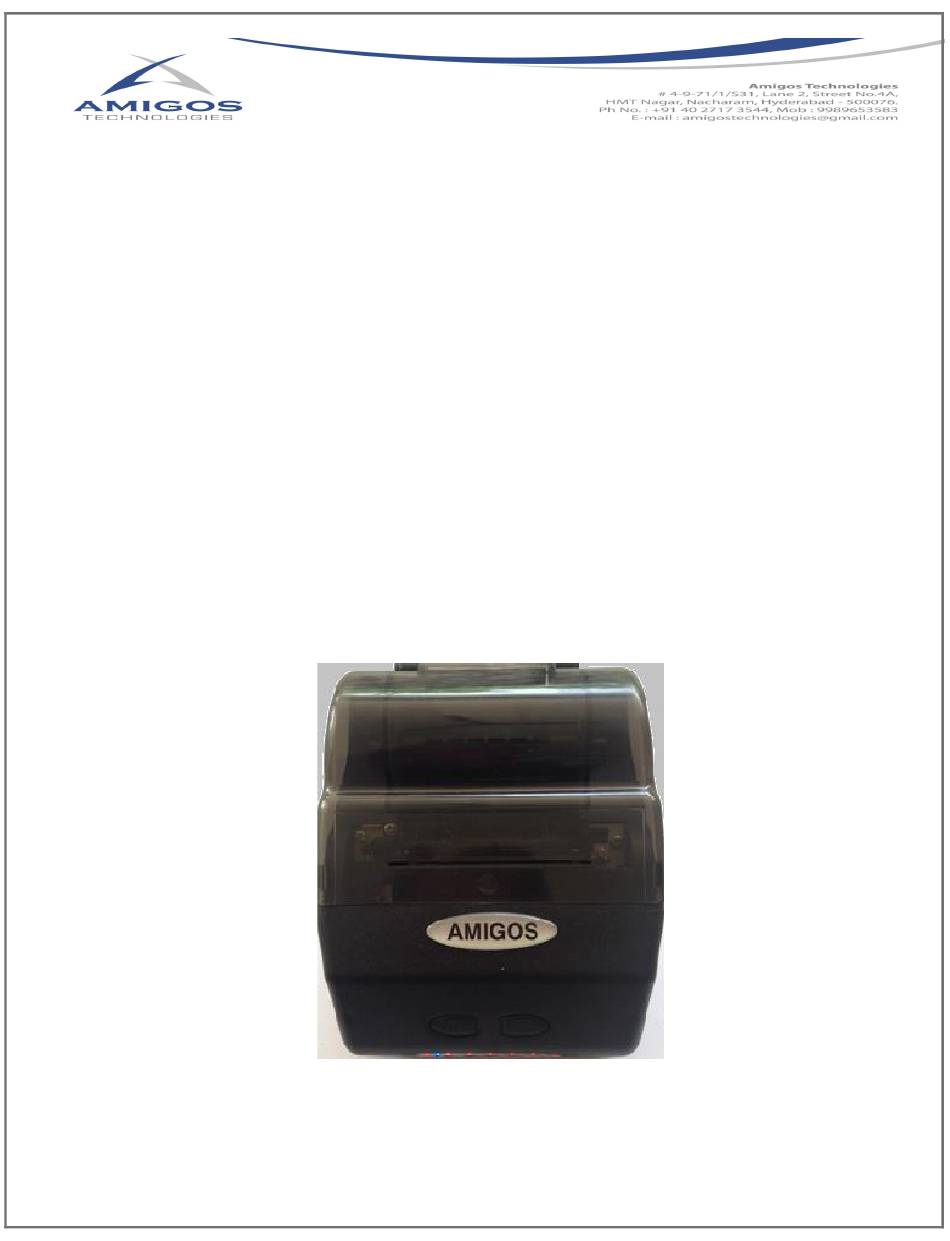

- Page 1 AMIGOS - BLUETOOTH DOT MATRIX IMPACT PRINTER 57mm/2”-QA212i Ver 1.0 57mm /2”- BLUETOOTH QA212i DOT MATRIX IMPACT PRINTER...
- Page 2 AMIGOS - BLUETOOTH DOT MATRIX IMPACT PRINTER 57mm/2”-QA212i Ver 1.0 Confidential 1. The content of this USER Manual is the property of Amigos – AMIGOS Technologies, and shall not be reproduced in any means, such as Electronic, Photocopy, FAX or any other form of copy.
-
Page 3: Technical Specification
AMIGOS - BLUETOOTH DOT MATRIX IMPACT PRINTER 57mm/2”-QA212i Ver 1.0 Technical specification Paper width QA21-2i 57mm +/- 1mm Printing width 48mm +/- 1mm BATTERY 2200mAh, Li Ion Battery Battery charge indication LED BAR METER indication Charger 100V to 300V Battery Charger... -
Page 4: List Of Items
AMIGOS - BLUETOOTH DOT MATRIX IMPACT PRINTER 57mm/2”-QA212i Ver 1.0 List of Items 1. Bluetooth Printer Unit 2. Charger (I/P – 100 to 300V,O/P -9.6VDC) 3. Bag for the printer Unit to carry. 4. Paper Roll feeder 5. Battery (2200mAh,Li Ion Battery) Front Panel Indicators &... -
Page 5: Paper Roll
AMIGOS - BLUETOOTH DOT MATRIX IMPACT PRINTER 57mm/2”-QA212i Ver 1.0 PAPER ROLL A Paper roll of 57mm and a maximum of 58mm Diameter Plain Paper rolls shall be used. Note: Care should be taken to ensure that the paper roll shall be dry and good quality. - Page 6 AMIGOS - BLUETOOTH DOT MATRIX IMPACT PRINTER 57mm/2”-QA212i Ver 1.0 Fig. 3 Battery: Use only the Amigos Battery pack. Using spurious makes would affect the Printer and are hazardous. BELT CLIP This clip helps in carrying the Printer on to a Persons Trouser Belt.
-
Page 7: Printer Self Test
AMIGOS - BLUETOOTH DOT MATRIX IMPACT PRINTER 57mm/2”-QA212i Ver 1.0 Fig. 4 To change Battery refer the Fig.4 Shown above. Printer Self Test Press the PAPER FEED Switch and hold and PRESS the POWER ON Switch for few seconds and wait till the Printer gets in to diagnostic printing mode. - Page 8 AMIGOS - BLUETOOTH DOT MATRIX IMPACT PRINTER 57mm/2”-QA212i Ver 1.0 Command Set used by Software programmers COMMAND SENT Command Extended class Description VALUE FROM HOST PRINTER 0x11 Printer ready 0x13 XOFF Printer Busy 0x04 Printer buffer empty 0x1B 0x 0x1B ‘K’ n...
- Page 9 AMIGOS - BLUETOOTH DOT MATRIX IMPACT PRINTER 57mm/2”-QA212i Ver 1.0 mmOutStream.write(0X1B); mmOutStream.write(0x4B); mmOutStream.write(0X08); mmOutStream.write("ABCDEFGHIJKLMNOPQRSTUVWXYZ".getBytes()); mmOutStream.write(0X0D); mmOutStream.write(0X0A); For every line we need to add the font height protocol whether it is small large or normal even though Bluetooth Printer having version 02D and lower can print only SMALL and LARGE height font.
