NEOS 150
Folding

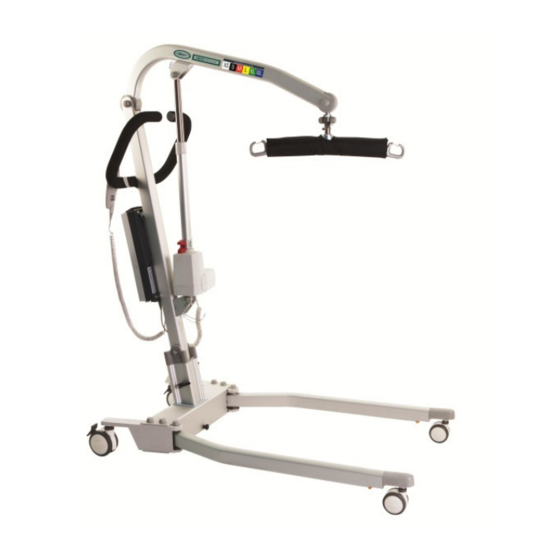

MOBILE PATIENT LIFTING HOIST
USER MANUAL
IMPORTANT:
Do not use the Neos 150 Folding PATIENT LIFTING HOIST
without having first read this manual.
Unit 8, 110-120 Silverwater Rd, Silverwater NSW 2128
Phone: 02 9649 2111
Email: sales@activemobility.com.au
www.activemobility.com.au
Advertisement
Summary of Contents for Active Mobility NEOS 150 Folding
- Page 1 NEOS 150 Folding MOBILE PATIENT LIFTING HOIST USER MANUAL IMPORTANT: Do not use the Neos 150 Folding PATIENT LIFTING HOIST without having first read this manual. Unit 8, 110-120 Silverwater Rd, Silverwater NSW 2128 Phone: 02 9649 2111 Email: sales@activemobility.com.au...
- Page 2 CONTENTS NEOS 150 Folding Overview Important safety considerations NEOS 150 Folding Assembly instructions Folding instructions Hoist operation and charging Lifting procedures Maintenance Trouble shooting 14 Specifications Warranty 16 Slings Key to symbols Parts list Log book NEOS 150 Folding User Manual...
- Page 3 The NEOS 150 Folding whilst being compact provides superior patient space. The NEOS 150 Folding in fact offers more patient space than most other larger size lifters. The swivel feature of the detachable yoke allows a patient to be rotated through 360°...
- Page 4 DO NOT EXCEED THE SAFE WORKING LOAD OF THE NEOS 150 Folding HOIST – 150kg Ensure when the hoist is in use that the surrounding area is clear and the person being lifted is clear of all obstructing objects. NEOS 150 Folding User Manual Doc Neos 1.1...
- Page 5 Push Handle Spreader Actuator Battery & Control Mast Base Chassis Direction of Travel NEOS 150 Folding User Manual Doc Neos 1.1...
- Page 6 Check operation of lifter via handset, ensuring that the RED EMERGENCY STOP BUTTON ON THE CONTROL BOX IS RELEASED. Turn the knob quarter turn clockwise to release. NEOS 150 Folding User Manual Doc Neos 1.1...
- Page 7 8. Insert Mast locking bolt thru the location holes and tighten with the hand levers 9. Hoist can be lifted by the handles and moved, using the rear wheels as a trolley. NEOS 150 Folding User Manual Doc Neos 1.1...
- Page 8 18 volts. NB the light will only flash when the hoist is under load. The connection for the handset is located on the underside of the control box. Handset Port Lift Actuator – Port 1 NEOS 150 Folding User Manual Doc Neos 1.1...
- Page 9 GREEN mains power on light will be illuminated when connected to 240 v power supply. ORANGE LIGHT illuminated indicates battery currently charging. ORANGE LIGHT will extinguish when battery pack is fully charged. NEOS 150 Folding User Manual Doc Neos 1.1...
- Page 10 Battery life is greatly reduced by deep or complete discharging of the batteries. Longer lifetime is obtained by maintaining fully charged batteries. NEOS 150 Folding User Manual | 10 Doc Neos 1.1...
- Page 11 Check patient comfort. Lower and realign sling if necessary. Continue to lift until patient is clear of chair, bed etc. ensuring that during the course of the lift the patient is clear of any obstructions. NEOS 150 Folding User Manual | 11 Doc Neos 1.1...
- Page 12 All General Purpose have handles sewn onto the back of the sling. These will assist the carer to pull back the patient into the correct position for seating. NEOS 150 Folding User Manual | 12 Doc Neos 1.1...
- Page 13 A MAJOR SERVICE SHOULD BE CARRIED OUT EVERY 12 MONTHS AS A MINIMUM REQUIREMENT. IMPORTANT: An annual load test to the safe working load (swl) is required for compliance with AS ISO 10535 – 2011 NEOS 150 Folding User Manual | 13 Doc Neos 1.1...
- Page 14 Blown fuse in battery pack Charge battery. Faulty control box. Replace/repair control box. Actuator works in one Handset defective. Replace handset. Control box defective. direction only Repair/replace control box. NEOS 150 Folding User Manual | 14 Doc Neos 1.1...
- Page 15 10.kg Handle height 1000mm Electrical approval EN 60601-1 Sound level < 40Db @ 1m Electrical approval EN 60601-1 Operation force - Finger < 4N Hand < 50N Foot < 50N NEOS 150 Folding User Manual | 15 Doc Neos 1.1...
- Page 16 ¹ CAUTION - Weigh scale is not intended for clinical assessment. NEOS 150 Folding User Manual | 16 Doc Neos 1.1...
- Page 17 SLING SIZES AVAILABLE • X small, • Small, • Medium, • Large, • X large, • XX large MAIN SLING CATEGORIES General Purpose Sling with Head Support General Purpose Sling Amputee Sling NEOS 150 Folding User Manual | 17 Doc Neos 1.1...
- Page 18 Examine stitching for fraying, breakage and unravelling. DAMAGED SLINGS SHOULD NOT BE USED. PARTS LIST AND DESCRIPTION A full parts list is available upon request NEOS 150 Folding User Manual | 18 Doc Neos 1.1...
- Page 19 LOG BOOK Service Type Condition Report Date: Inspected by: Signature: Action taken: Date: Service Type Condition Report Date: Inspected by: Signature: Action taken: Date: NEOS 150 Folding User Manual | 19 Doc Neos 1.1...
- Page 20 Distributed by: Unit 8, 110-120 Silverwater Rd, Silverwater NSW 2128 Phone: 02 9749 7812 Email: sales@activemobility.com.au www.activemobility.com.au NEOS 150 Folding User Manual | 20 Doc Neos 1.1...
